HMMWV Arctic Kit, Battery Box Components, Insulation, and Control Box Connector TM 9-2320-280-24P · Fig. 369

Every part in figure 369 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 17 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

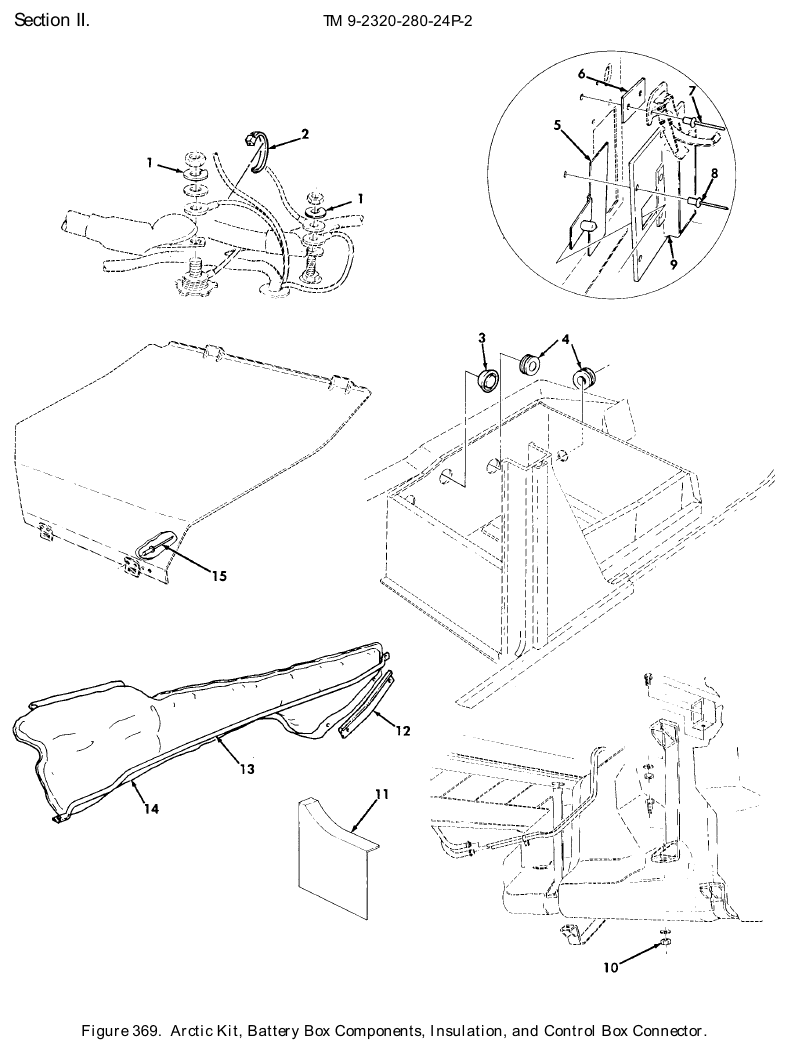

TM 9-2320-280-24P figure 369, Arctic Kit, Battery Box Components, Insulation, and Control Box Connector: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2,PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	833 in stock
2	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	198 in stock
3	Expansion Plug NSN 5340-01-395-0812 · P/N 12340791 PLUG,EXPANSION PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	3	We can source it $101.40 per eachgov't list price
4	Nonmetallic Grommet NSN 5325-00-276-6091 · P/N MS35489-19 GROMMET,NONMETALLIC PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	184 in stock
5	Arctic Heater Door Assembly NSN 2540-01-407-3296 · P/N 12342572 DOOR ASSEMBLY,ARCTI PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $95–$160 eachtypical
6	Plate Spacer NSN 5365-01-394-2394 · P/N 12342752 SPACER,PLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $679.08 per eachgov't list price
7	Blind Rivet NSN 5320-01-271-6357 · P/N 12339355-1 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
8	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	72 in stock
9	Mounting Plate NSN 5340-01-394-7853 · P/N 12342571 PLATE,MOUNTING PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $326.34 per eachgov't list price
10	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	219 in stock
11	Double Angle Bracket NSN 5340-01-393-9371 · P/N 12342573 BRACKET,DOUBLE ANGL RIGHT BODY SIDE RAIL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $80–$135 eachtypical
12	Automotive Trim Bezel NSN 2590-01-261-6851 · P/N 12339014-2 BEZEL,AUTOMOTIVE TR Fits: All A0 and A1 models, plus M1121	1	711 in stock $25.00our price Buy online ↗
13	Interior Insulation Retainer NSN 2590-01-257-8787 · P/N 12340591 RETAINER,INTERIOR PART OF KIT P/N 5705698 Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	We can source it $60–$100 eachtypical
13	Interior Insulation Retainer NSN 2590-01-452-5034 · P/N 12340591-1 RETAINER,INTERIOR PART OF KIT P/N 5705698 Fits: M997, M997A1	1	We can source it $1,349.16 per eachgov't list price
14	Vehicular Insulation NSN 2540-01-461-1134 · P/N 12340593-1 INSULATION,THERMAL, PART OF KIT P/N 5705698 Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	22 in stock $178.44 per eachgov't list price
14	Vehicular Insulation NSN 2540-01-461-1134 · P/N 12340593-1 INSULATION,THERMAL, PART OF KIT P/N 5705698 Fits: M997, M997A1	1	22 in stock $178.44 per eachgov't list price
15	Blind Rivet NSN 5320-01-143-5079 · P/N NAS9301BNS-4-04 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 models except M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
