HMMWV Arctic Kit, Diverter Box, Defroster, Heater Ducting, and Radio Rack Bracket TM 9-2320-280-24P · Fig. 370

Every part in figure 370 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 28 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

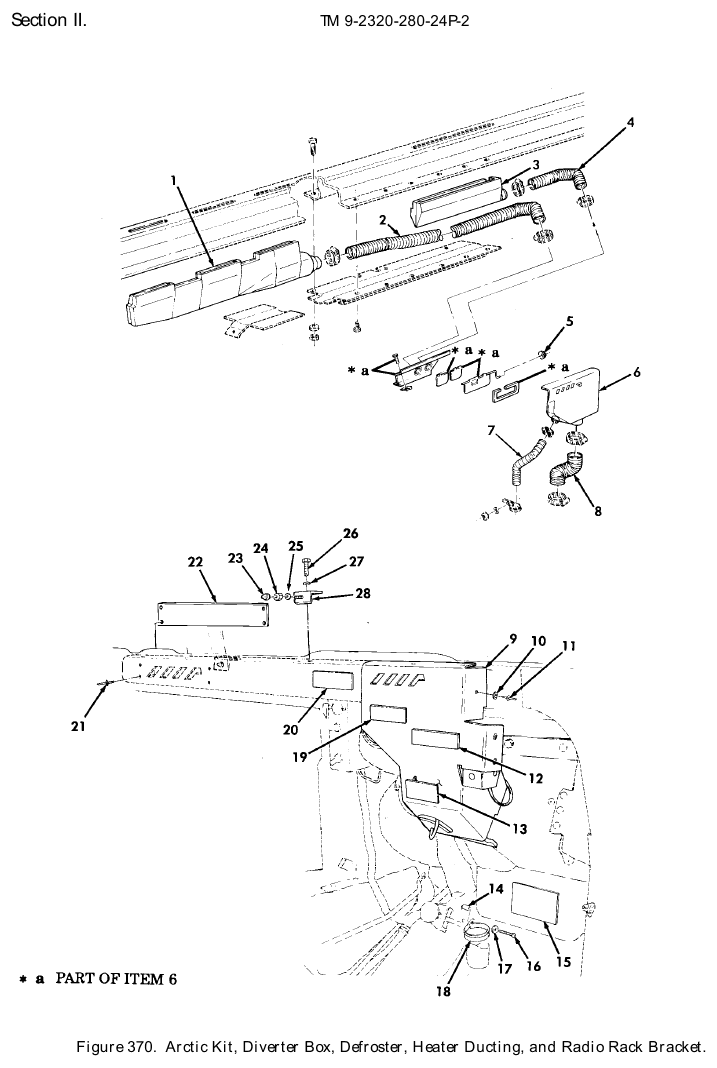

TM 9-2320-280-24P figure 370, Arctic Kit, Diverter Box, Defroster, Heater Ducting, and Radio Rack Bracket: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Air Circulating Ventilator NSN 2540-01-257-3742 · P/N 12339289-2 VENTILATOR,AIR CIRC L.H.,PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $221.57 per eachgov't list price
2	Air Duct Hose NSN 4720-01-394-6166 · P/N 12339265-6 HOSE,AIR DUCT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $177.07 per eachgov't list price
3	Air Circulating Ventilator NSN 2540-01-390-5711 · P/N 5591935 VENTILATOR,AIR CIRC R.H.,PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $227.00 per eachgov't list price
4	Air Duct Hose NSN 4720-01-325-6985 · P/N 12339265-7 HOSE,AIR DUCT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $186.21 per eachgov't list price
5	Plug Button NSN 5340-01-332-7599 · P/N 12340258 BUTTON,PLUG PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Air Circulating Ventilator NSN 2540-01-395-4202 · P/N 12342570 VENTILATOR,AIR CIRC PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	4 in stock $8,693.39 per eachgov't list price
7	Air Duct Hose NSN 4720-01-451-0894 · P/N 12339265-16 HOSE,AIR DUCT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	1 in stock $153.68 per eachgov't list price
8	Air Duct Hose NSN 4720-01-394-6170 · P/N 12339265-10 HOSE,AIR DUCT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $55–$95 eachtypical
9	Divert Artic Cover NSN 2540-01-254-6511 · P/N 12340470 ARCTIC COVER,DIVERT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	2 in stock $43.97our price Buy online ↗
10	Divert Artic Cover NSN 2540-01-254-6511 · P/N 11500362 WASHER,FLAT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	2 in stock $43.97our price Buy online ↗
11	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	132 in stock
12	Instruction Plate NSN 9905-01-397-3196 · P/N 12342648 PLATE,INSTRUCTION PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
13	Instruction Plate NSN 9905-01-248-7656 · P/N 12339108 PLATE,INSTRUCTION PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	13 in stock
14	Sleeve Spacer NSN 5365-01-394-0440 · P/N 12342751 SPACER,SLEEVE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $85–$145 eachtypical
15	Identification Marker NSN 7690-01-407-8248 · P/N 12342806 MARKER,IDENTIFICATI PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-01-394-3543 · P/N 9415778 SCREW,CAP,HEXAGON H PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $75–$130 eachtypical
17	Lock Washer NSN 5310-00-045-3296 · P/N 120217 WASHER,LOCK #10,PART OF KIT P/N 5705698 Fits: All A0 models except M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	709 in stock
18	Loop Clamp NSN 5340-00-193-4111 · P/N MS21333-86 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
19	Instruction Plate NSN 9905-01-203-9994 · P/N 12339100 PLATE,INSTRUCTION PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	3 in stock
20	Instruction Plate NSN 9905-01-193-4065 · P/N 12339106 PLATE,INSTRUCTION PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
21	Blind Rivet NSN 5320-01-019-5694 · P/N M24243/1A402 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	We can source it
22	Access Cover NSN 5340-01-394-7288 · P/N 12342754 COVER,ACCESS PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $35–$70 eachtypical
23	Protective Dust and Moisture Cap NSN 5340-01-174-4894 · P/N M5501/11-F1 CAP,PROTECTIVE DUST PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	2,428 in stock
24	Plain Hexagon Nut NSN 5310-00-012-0367 · P/N 120367 NUT,PLAIN,HEXAGON PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	96 in stock
25	Flat Washer NSN 5310-00-044-6188 · P/N 446188 WASHER,FLAT PART OF KIT P/N 5705698 Fits: All A0 models except M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	We can source it
26	Cap Hexagon Head Screw NSN 5305-00-543-4372 · P/N B1821BH038C075N SCREW,CAP,HEXAGON H PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	1,537 in stock
27	Flat Washer NSN 5310-00-044-6212 · P/N 446212 WASHER,FLAT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
28	Vehicular Components Bracket NSN 2590-01-439-8268 · P/N 12446763 BRACKET,ANGLE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	258 in stock $18.13our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
