HMMWV 200 AMP Alternator Assembly, Belts, Pulley, Guard, and Mounting Hardware TM 9-2320-280-24P · Fig. 37

Every part in figure 37 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 22 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

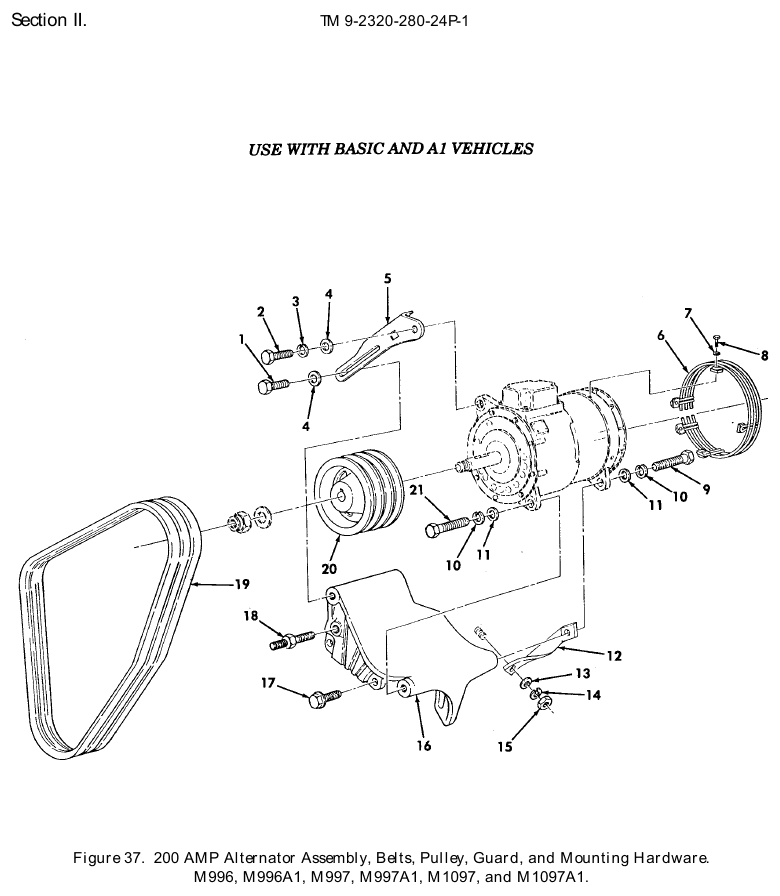

TM 9-2320-280-24P figure 37, 200 AMP Alternator Assembly, Belts, Pulley, Guard, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-114-0963 · P/N B1821BH038C100L BOLT,MACHINE 3/8-16 X 1.00 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	93 in stock
2	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	26 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	1,162 in stock
4	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
5	Engine Accessory Bracket NSN 5340-01-197-5548 · P/N 12340057 BRACKET,ENGINE ACCE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	22 in stock $35–$75 eachtypical
6	Mechanical Drive Guard NSN 3040-01-270-9466 · P/N 12341809 GUARD,MECHANICAL DR Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	2 in stock $129.70 per eachgov't list price
7	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	5	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 50 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	5	19 in stock
9	Cap Hexagon Head Screw NSN 5305-00-071-2059 · P/N B1821BH044C250N SCREW,CAP,HEXAGON H 7/16-14 X 2.50 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	100 in stock
10	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK 7/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	2,764 in stock
11	Flat Washer NSN 5310-00-809-4061 · P/N MS27183-15 WASHER,FLAT 7/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	763 in stock
12	Mounting Bracket NSN 5340-01-292-8404 · P/N 5935092 BRACKET,MOUNTING REAR Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it quote only $25–$55 eachtypical
13	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT 10MM Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
14	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10MM Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	1 in stock
15	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON 10MM Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	98 in stock
16	Vehicular Components Bracket NSN 2920-01-444-4365 · P/N 12338786-1 BRACKET,VEHICULAR C Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	13 in stock $235.11 per eachgov't list price
17	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE 10-1.5 X 30 MM Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	65 in stock
18	Shouldered Stud NSN 5307-01-408-4029 · P/N 12342545 STUD,SHOULDERED Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	409 in stock
19	V Matched Set Belts NSN 3030-01-321-4482 · P/N 12339359-18 BELTS,V,MATCHED SET (SET OF 3), .38 X 64.50 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	699 in stock $58.79our price Buy online ↗
19	V Matched Set Belts NSN 3030-01-333-2286 · P/N 12339359-26 BELT,V Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	42 in stock $40–$80 per settypical
20	Groove Pulley NSN 3020-01-232-9629 · P/N 12339392 PULLEY,GROOVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	116 in stock $65–$110 eachtypical
21	Cap Hexagon Head Screw NSN 5305-00-071-2057 · P/N B1821BH044C200N SCREW,CAP,HEXAGON H 7/16-14 X 2.00 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
