HMMWV 100 AMP Alternator (NIEHOFF) and Mounting Hardware (Serial Number 196900 and Below) TM 9-2320-280-24P · Fig. 36

Every part in figure 36 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 20 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

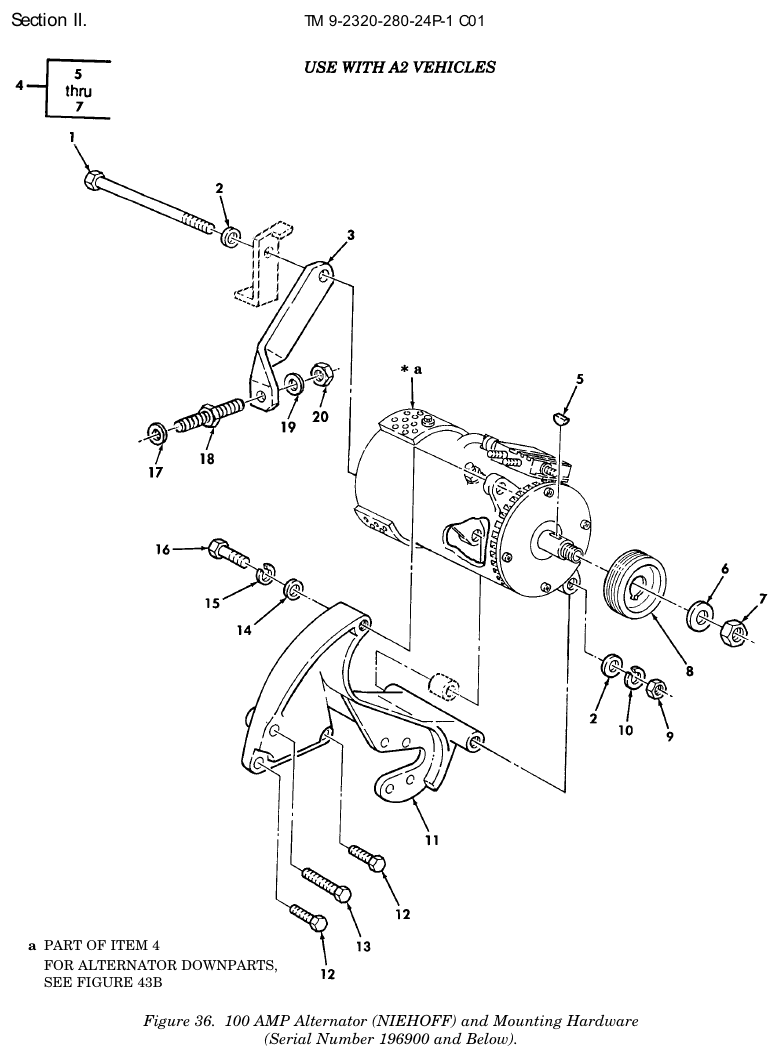

TM 9-2320-280-24P figure 36, 100 AMP Alternator (NIEHOFF) and Mounting Hardware (Serial Number 196900 and Below): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-01-429-9149 · P/N B1821BH044F975N SCREW,CAP,HEXAGON H 7/16-20 X 9-3/4 Fits: All A2 models except M997A2, M1097A2	1	27 in stock
2	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: All A2 models except M997A2, M1097A2	2	170 in stock
3	Mounting Bracket NSN 5340-01-499-0014 · P/N 12460465 BRACKET,MOUNTING Fits: All A2 models except M997A2, M1097A2	1	We can source it $55–$105 eachtypical
4	Engine Accessory Generator NSN 2920-01-407-0532 · P/N 12447110 GENERATOR,ENGINE AC 100 AMP Fits: All A2 models except M997A2, M1097A2	1	1 in stock quote only $2,926.00 per eachgov't list price
5	Woodruff Key NSN 5315-00-012-4553 · P/N MS35756-17 KEY,WOODRUFF Fits: All A2 models except M997A2, M1097A2	1	1,575 in stock
6	Flat Washer NSN 5310-00-772-0442 · P/N 7720442 WASHER,FLAT 3/4 Fits: All A2 models except M997A2, M1097A2	1	We can source it
7	Self-Locking Hexagon Nut NSN 5310-00-419-0876 · P/N MS21245-L12 NUT,SELF-LOCKING,HE 3/4-16 Fits: All A2 models except M997A2, M1097A2	1	We can source it $25–$50 eachtypical
8	Groove Pulley NSN 3020-01-473-2048 · P/N RCSK18220 PULLEY,GROOVE Fits: All A2 models except M997A2, M1097A2	1	1 in stock $326.66 per eachgov't list price
9	Plain Hexagon Nut NSN 5310-01-457-3171 · P/N 9417028 NUT,PLAIN,HEXAGON 7/16-20 Fits: All A2 models except M997A2, M1097A2	1	We can source it
10	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK 7/16 Fits: All A2 models except M997A2, M1097A2	1	2,764 in stock
11	Adjusting Belt Tension Arm NSN 2920-01-473-1763 · P/N 12460442 ARM,ADJUSTING,BELT Fits: All A2 models except M997A2, M1097A2	1	4 in stock $544.52 per eachgov't list price
12	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE 10-1.5 X 30 MM Fits: All A2 models except M997A2, M1097A2	2	65 in stock
13	Machine Bolt NSN 5306-01-270-5448 · P/N 12340845-3 BOLT,MACHINE 10-1.5 X 45MM Fits: All A2 models except M997A2, M1097A2	1	10 in stock
14	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: All A2 models except M997A2, M1097A2	1	6 in stock
15	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A2 models except M997A2, M1097A2	2	1,162 in stock
16	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H .375-16 X 1.50 Fits: All A2 models except M997A2, M1097A2	1	1,373 in stock
17	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT Fits: All A2 models except M997A2, M1097A2	2	1,146 in stock $7.83our price Buy online ↗
18	Shouldered Stud NSN 5307-01-315-3597 · P/N 12339406-3 STUD,SHOULDERED Fits: All A2 models except M997A2, M1097A2	1	298 in stock $25–$55 eachtypical
19	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK Fits: All A2 models except M997A2, M1097A2	1	1 in stock
20	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON 1/4-28 Fits: All A2 models except M997A2, M1097A2	1	98 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
