HMMWV Arctic Kit, Heater Duct Assembly TM 9-2320-280-24P · Fig. 371

Every part in figure 371 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 3 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

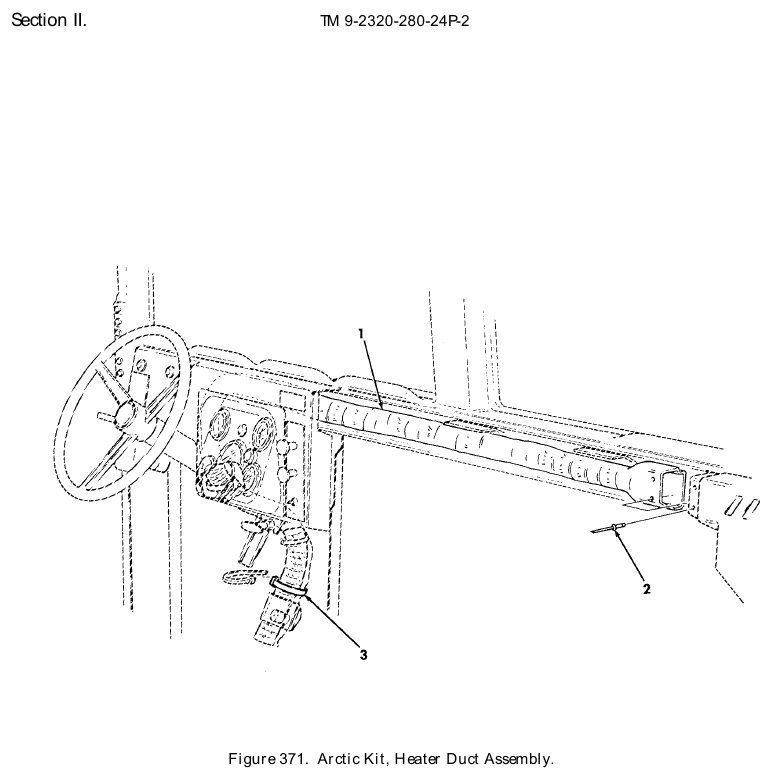

TM 9-2320-280-24P figure 371, Arctic Kit, Heater Duct Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Duct Assembly P/N 12447054 DUCT ASSEMBLY PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Blind Rivet NSN 5320-01-019-5694 · P/N M24243/1A402 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
3	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	3	198 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
