HMMWV Arctic Kit, Two Man Crew, Top Curtain, Rear Curtain, and Door Assemblies TM 9-2320-280-24P · Fig. 375

Every part in figure 375 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 35 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

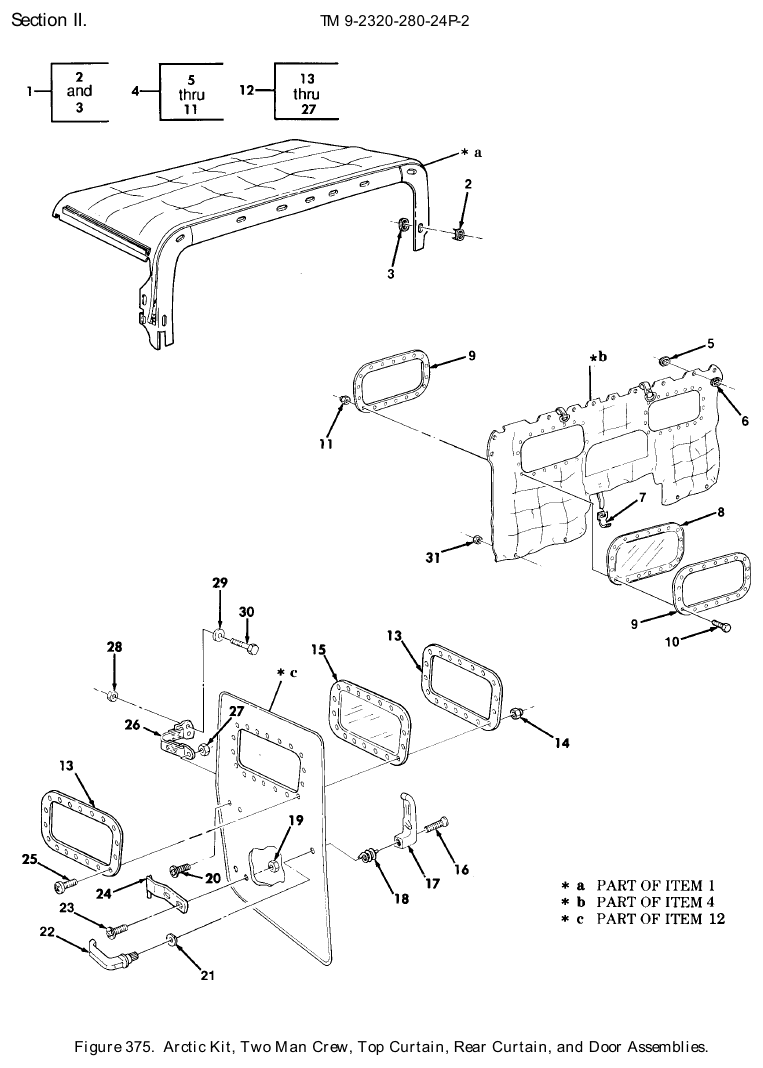

TM 9-2320-280-24P figure 375, Arctic Kit, Two Man Crew, Top Curtain, Rear Curtain, and Door Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fitted Vehicular Body Cover NSN 2540-01-395-8785 · P/N 12342441 COVER,FITTED,VEHICU PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	1 in stock $1,314.50 per eachgov't list price
2	Clinch Plate NSN 5325-00-604-9662 · P/N 426686 CLINCH PLATE,TURNBU Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	8	We can source it
3	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 426687 SOCKET,TURNBUTTON F Fits: M1097A1, M1123	8	376 in stock
4	Vehicular Curtain NSN 2540-01-197-5528 · P/N 12342442 CURTAIN,VEHICULAR PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	1 in stock $4,438.51 per eachgov't list price
5	Clinch Plate NSN 5325-00-604-9662 · P/N 426686 CLINCH PLATE,TURNBU Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	12	We can source it
6	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 426687 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	12	376 in stock
7	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	19 in stock
8	Transparent Vehicular Wind Armor NSN 2541-01-325-8741 · P/N 12340608 WINDOW,VEHICULAR Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	We can source it quote only $293.41 per assemblygov't list price
9	Retaining Window Plate NSN 5340-01-198-0686 · P/N 12340710 PLATE,RETAINING,WIN Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	We can source it $116.69 per eachgov't list price
10	Machine Screw NSN 5305-00-813-2785 · P/N NAS601-12P SCREW,MACHINE #8-32 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	36	We can source it
11	Self-Locking Hexagon Nut NSN 5310-01-038-9579 · P/N 454748 NUT,SELF-LOCKING,HE #8-32 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	36	We can source it
12	Vehicular Door NSN 2510-01-197-5546 · P/N SF5581723 DOOR,VEHICULAR FRONT,L.H. PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	3 in stock $1,349.60 per eachgov't list price
12	Vehicular Door NSN 2510-01-197-5547 · P/N SF5581724 DOOR,VEHICULAR FRONT,R.H. PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	3 in stock $1,149.18 per eachgov't list price
13	Retaining Window Plate NSN 5340-01-198-0686 · P/N 12340710 PLATE,RETAINING,WIN Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	We can source it $116.69 per eachgov't list price
14	Self-Locking Hexagon Nut NSN 5310-01-038-9579 · P/N 454748 NUT,SELF-LOCKING,HE #8-32 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	18	We can source it
15	Transparent Vehicular Wind Armor NSN 2541-01-325-8741 · P/N 12340608 WINDOW,VEHICULAR Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it quote only $293.41 per assemblygov't list price
16	Machine Screw NSN 5305-00-071-1327 · P/N MS51960-70 SCREW,MACHINE #10-32 X 1/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	92 in stock
17	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 12301363-2 HANDLE,DOOR,VEHICUL INSIDE,R.H PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	40 in stock
17	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 12301363-1 HANDLE,DOOR,VEHICUL INSIDE,L.H PART OF KIT P/N 5705618 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	45 in stock
18	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	6 in stock
18	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	12 in stock
19	Plain Hexagon Nut NSN 5310-00-997-1888 · P/N MS35649-2252 NUT,PLAIN,HEXAGON 1/4-20 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	3	300 in stock
20	Cap Socket Head Screw NSN 5305-01-206-7217 · P/N PL25D040P8 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	9 in stock
21	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it
22	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL OUTSIDE,L.H., R.H. PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	29 in stock
23	Machine Screw NSN 5305-00-071-1315 · P/N MS51957-79 SCREW,MACHINE 1/4-20 X 1/2 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	3	We can source it
24	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE L.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	1 in stock $25–$40 eachtypical
24	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	We can source it
25	Machine Screw NSN 5305-00-813-2785 · P/N NAS601-12P SCREW,MACHINE #8-32 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	18	We can source it
26	Webbing Strap NSN 5340-01-199-3510 · P/N 44877 STRAP,WEBBING Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it $25–$60 eachtypical
27	Plain Hexagon Nut NSN 5310-00-997-1888 · P/N MS35649-2252 NUT,PLAIN,HEXAGON 1/4-20 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	300 in stock
28	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	626 in stock
29	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	2,325 in stock
30	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	300 in stock
31	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 57K0137 BOLT,MACHINE ( 4) 373-11 BOLT,MACHINE ( 4) 374-7 BOLT,MACHINE ( 3) 374-22 BOW,VEHICULAR TOP ( 1) 373-1 BRACE,ARCTIC CURTAI( 1) 374-20 BRACKET,DOUBLE ANGL( 1) 374-4 BUCKLE ( 2) 373-10 COVER,FITTED,VEHICU( 1) 375-1 CURTAIN,VEHICULAR ( 1) 375-4 DOOR,VEHICUL Fits: M998, M998A1, M1026, M1037, M1038, M1038A1 and 5 more	4	354 in stock
