HMMWV Arctic Kit, Four Man Crew, Top Enclosure, Bows, and Mounting Components TM 9-2320-280-24P · Fig. 376

Every part in figure 376 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 25 lines, 23 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

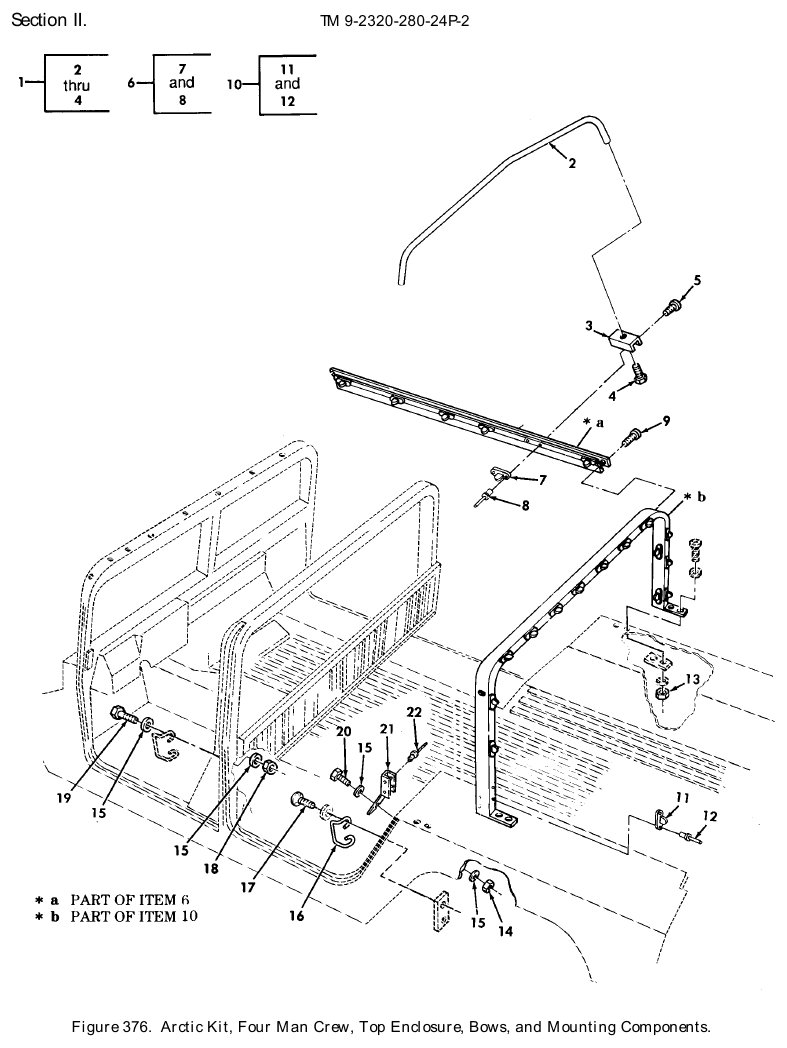

TM 9-2320-280-24P figure 376, Arctic Kit, Four Man Crew, Top Enclosure, Bows, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-199-6759 · P/N 12340682 BOW,VEHICULAR TOP PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	588 in stock $97.89our price Buy online ↗
2	Vehicular Top Bow P/N 12340713 BOW,VEHICULAR TOP Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
3	Retaining Strap NSN 5340-01-204-3862 · P/N 12340239 STRAP,RETAINING Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	358 in stock $25–$40 eachtypical
4	Machine Screw NSN 5305-00-071-1313 · P/N MS51957-77 SCREW,MACHINE 1/4-20 X 3/8 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	4 in stock
5	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	169 in stock
6	Handrail NSN 2590-01-196-1290 · P/N 12340222-1 HANDRAIL,VEHICULAR L.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	708 in stock $108.82 per eachgov't list price
6	Handrail NSN 2590-01-196-5314 · P/N 12340222-2 HANDRAIL,VEHICULAR R.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	783 in stock $275.00our price Buy online ↗
7	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	22 in stock
8	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA,.126-.187 GRIP Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	12	641 in stock
9	Cap Socket Head Screw NSN 5305-01-117-3396 · P/N NAS-1635-3LE12 SCREW,CAP,SOCKET HE #10-32 X 1/2 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	202 in stock
10	Vehicular Top Bow NSN 2540-01-196-1291 · P/N 12340679 BOW,VEHICULAR TOP PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	259 in stock $425.00our price Buy online ↗
11	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	17	22 in stock
12	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA,.126-.187 GRIP Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	34	641 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	626 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-483-8791 · P/N MS17829-4F NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	88 in stock
15	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	12	1,368 in stock
16	Catch Strike NSN 5340-01-208-7670 · P/N 12340182-1 STRIKE,CATCH REAR DOOR,L.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	773 in stock
16	Latch Door Striker NSN 5342-01-204-9610 · P/N 5581364 STRIKER,LATCH,DOOR REAR DOOR,R.H PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	276 in stock $45–$85 eachtypical
17	Machine Screw NSN 5305-00-988-1727 · P/N MS35206-283 SCREW,MACHINE 1/4-20 X 3/4 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	2,424 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	904 in stock
19	Machine Bolt NSN 5306-00-182-2027 · P/N AN5H10A BOLT,MACHINE PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	360 in stock
20	Machine Screw NSN 5305-00-993-2457 · P/N MS35207-284 SCREW,MACHINE 1/4-28 X 1-1/4 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
21	Mounting Bracket NSN 5340-01-430-9239 · P/N 12447124-1 BRACKET,MOUNTING C-PILLAR,RH PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	117 in stock $39.69our price Buy online ↗
21	Mounting Bracket NSN 5340-01-430-9240 · P/N 12447123-1 BRACKET,MOUNTING C-PILLAR,LH PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	106 in stock $30–$65 eachtypical
22	Blind Rivet NSN 5320-01-034-1884 · P/N CR3243-6-5 RIVET,BLIND PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	24 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
