HMMWV Swingfire Heater Kit and Related Parts TM 9-2320-280-24P · Fig. 379

Every part in figure 379 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 54 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

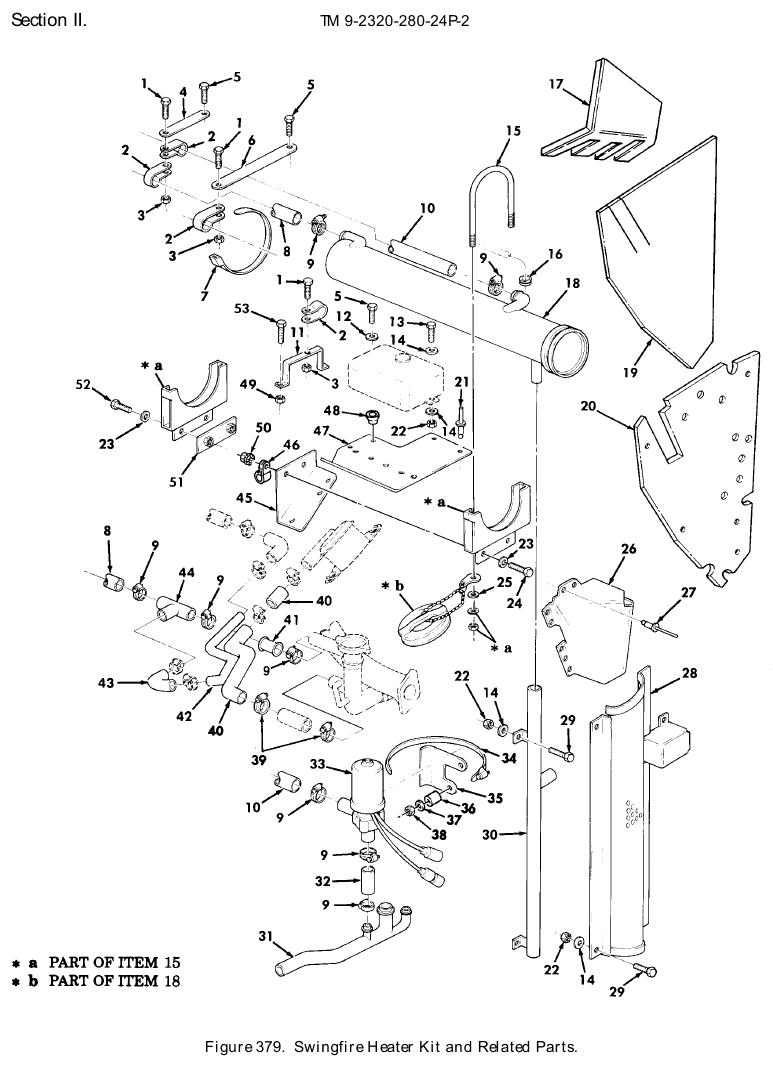

TM 9-2320-280-24P figure 379, Swingfire Heater Kit and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-984-6194 · P/N MS35206-246 SCREW,MACHINE #8-32 X 5/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	3	418 in stock
2	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	4	12 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-811-3494 · P/N MS21044-N08 NUT,SELF-LOCKING,HE #8-32 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	3	We can source it
4	Plate Spacer NSN 5365-01-314-5544 · P/N 12368397-2 SPACER,PLATE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Tapping Screw NSN 5305-00-757-8287 · P/N MS51851-43 SCREW,TAPPING #8-12 X 3/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	3	We can source it
6	Plate Spacer NSN 5365-01-314-5544 · P/N 12368397-2 SPACER,PLATE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it
7	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	9	We can source it
8	Nonmetallic Make From Hose 74 Hose P/N MS521301A203R 74 HOSE,NONMETALLIC MAKE FROM HOSE,P/N MS521301A203R,74 INCHES LONG PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	Ask us
9	Hose Clamp NSN 4730-00-908-3194 · P/N MS35842-11 CLAMP,HOSE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	8	536 in stock
10	Nonmetallic Make From Hose 58 Hose P/N MS521301A203R 58 HOSE,NONMETALLIC MAKE FROM HOSE,P/N MS521301A203R,58 INCHES LONG PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Multiple Angle Bracket NSN 5340-01-314-5567 · P/N 12368392 BRACKET,MULTIPLE AN PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $90–$145 eachtypical
12	Lock Washer NSN 5310-00-559-0070 · P/N MS35333-38 WASHER,LOCK PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	9,284 in stock
13	Machine Bolt NSN 5305-00-068-0514 · P/N B1821BH025F088N BOLT,MACHINE 1/4-28 X 7/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	744 in stock
14	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	16	2,325 in stock
15	Loop Clamp NSN 5340-01-315-4955 · P/N 12368375 CLAMP,LOOP PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	We can source it $133.57 per eachgov't list price
16	Nonmetallic Grommet NSN 5325-01-309-7164 · P/N MS35489-149 GROMMET,NONMETALLIC .875 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it
17	Vehicular Insulation NSN 2540-01-445-6029 · P/N 12342880 INSULATION,THERMAL, L.H. PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $35–$70 eachtypical
18	Vehicular Heater Water Jacket NSN 2540-01-350-9380 · P/N 12342038 WATER JACKET,VEHICU PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $3,084.75 per eachgov't list price
19	Cowl Lef Insulation NSN 2510-01-465-7620 · P/N 12342881-1 INSULATION,COWL LEF L.H. PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $235.44 per eachgov't list price
20	Supplemental Small Arms-FR Armor NSN 2540-01-449-1718 · P/N 12342878-1 ARMOR,SUPPLEMENTAL, R.H. PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $112.39 per eachgov't list price
20	Supplemental Small Arms-FR Armor NSN 2540-01-451-9345 · P/N 12342878-2 ARMOR,SUPPLEMENTAL, L.H. PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $70–$115 eachtypical
21	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND 3/16 X 3/16 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	72 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N MS51943-32 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	14	We can source it
23	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	4	1,162 in stock
24	Machine Bolt NSN 5306-00-068-0513 · P/N 6893-2 BOLT,MACHINE 1/4-20 X 3/4 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	4	2,221 in stock
25	Flat Washer NSN 5310-01-280-5796 · P/N MS27183-57 WASHER,FLAT 3/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it
26	Heater Compartment Housing NSN 2540-01-314-1130 · P/N 12368398 HOUSING,HEATER COMP PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $80–$135 eachtypical
27	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND 1/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	11	We can source it
28	Brush Guard Assembly NSN 2540-01-317-3309 · P/N 12368400 GUARD ASSEMBLY,BRUS PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $226.58 per assemblygov't list price
29	Machine Bolt NSN 5306-00-068-0513 · P/N 6893-2 BOLT,MACHINE 1/4-20 X 3/4 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	12	2,221 in stock
30	Exhaust Pipe NSN 2990-01-314-0151 · P/N 12368443 PIPE,EXHAUST PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $224.86 per eachgov't list price
31	Bent Metallic Tube NSN 4710-01-313-9340 · P/N 12342095 TUBE,BENT,METALLIC PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $533.77 per eachgov't list price
32	Nonmetallic Make From Hose 7 Hose P/N MS521301A203R 7 HOSE,NONMETALLIC MAKE FROM HOSE,P/N MS521301A203R,7.50 INCHES LONG PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	Ask us
33	Cooling System Engine Pump NSN 2930-01-314-0145 · P/N 12342294 PUMP,COOLING SYSTEM PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $2,740.77 per eachgov't list price
34	Hose Clamp NSN 4730-00-909-8627 · P/N FF9311-36 CLAMP,HOSE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	428 in stock
35	Mounting Bracket NSN 5340-01-314-2445 · P/N 12368374 BRACKET,MOUNTING PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $60–$100 eachtypical
36	Sleeve Spacer NSN 5365-01-255-0965 · P/N 12338521-14 SPACER,SLEEVE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	We can source it
37	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	1 in stock
38	Plain Hexagon Nut NSN 5310-01-315-1535 · P/N 11505922 NUT,PLAIN,HEXAGON M10-O.35 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	We can source it $30–$60 eachtypical
39	Hose Clamp NSN 4730-00-908-3193 · P/N 30024H CLAMP,HOSE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	168 in stock
40	Nonmetallic Hose NSN 4720-01-211-1998 · P/N 12340492 HOSE,NONMETALLIC PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	We can source it $25–$40 eachtypical
41	Nonmetallic Make From Hose 5.50 Hose P/N 521301A203R 5.50 HOSE,NONMETALLIC MAKE FROM HOSE,P/N MS521301A203R,5.50 INCHES LONG PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	Ask us
42	Metal Tube Assembly NSN 4710-01-257-2649 · P/N 12340498 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $103.91 per eachgov't list price
43	Preformed Hose NSN 4720-01-257-2655 · P/N 12340493 HOSE,PREFORMED PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $65–$115 eachtypical
44	Hose Tee NSN 4730-00-100-3918 · P/N MS24521-7 TEE,HOSE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $80–$135 eachtypical
45	Angle Bracket NSN 5340-01-320-1079 · P/N 12368387 BRACKET,ANGLE PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $134.06 per eachgov't list price
46	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it
47	Mounting Plate NSN 5340-01-315-4120 · P/N 12368391 PLATE,MOUNTING PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $294.04 per eachgov't list price
48	Electrical Conductor Bushing NSN 5975-01-211-3142 · P/N SB-750-625-2840 BUSHING,ELECTRICAL PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	1,693 in stock
49	Self-Locking Hexagon Nut NSN 5310-00-877-5797 · P/N MS21044-N3 NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	364 in stock
50	Self-Locking Hexagon Nut NSN 5310-01-333-5245 · P/N 271175 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	54,170 in stock
51	Mending Plate NSN 5340-01-314-6838 · P/N 12368390 PLATE,MENDING PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it $80–$130 eachtypical
52	Cap Hexagon Head Screw NSN 5305-00-068-0515 · P/N B1821BH025F100N SCREW,CAP,HEXAGON H 1/4-28 X 1.00 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	2,895 in stock
53	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X 5/8 PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
