HMMWV Arctic Kit, Four Man Crew, Top Curtain, Rear Curtain, and Door Assemblies TM 9-2320-280-24P · Fig. 378

Every part in figure 378 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 36 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

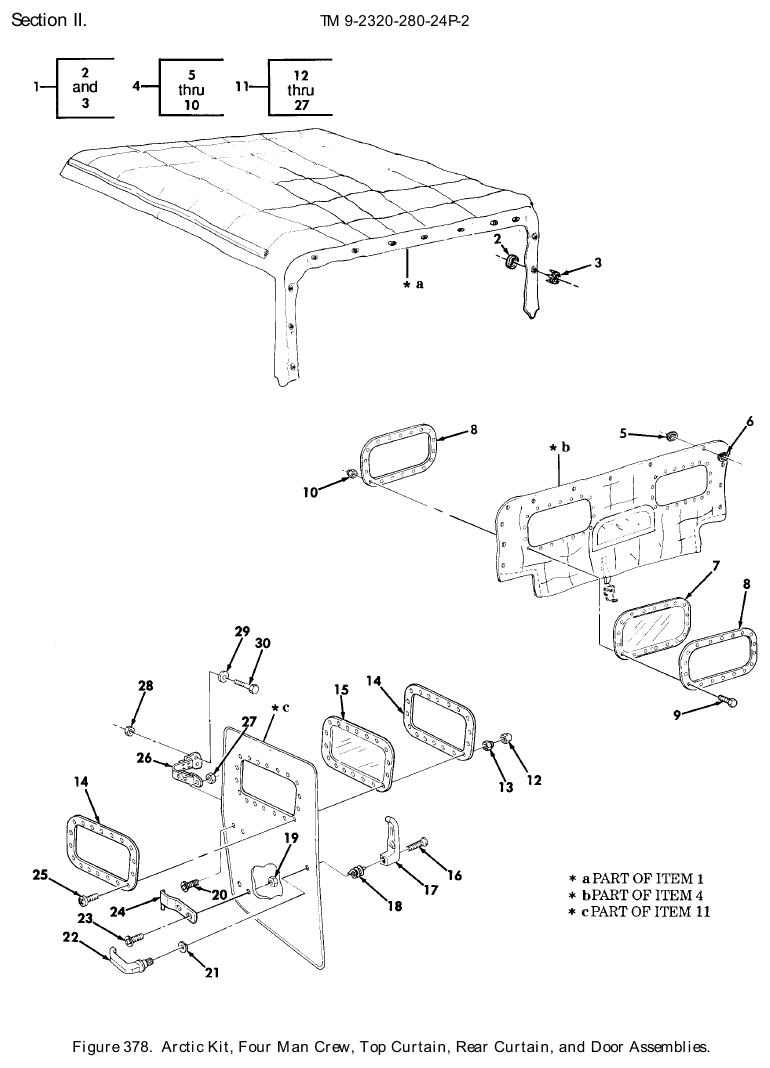

TM 9-2320-280-24P figure 378, Arctic Kit, Four Man Crew, Top Curtain, Rear Curtain, and Door Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fitted Vehicular Body Cover NSN 2540-01-329-8649 · P/N 12342153-1 COVER,FITTED,VEHICU PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	1 in stock $962.90 per eachgov't list price
2	Clinch Plate NSN 5325-00-604-9662 · P/N 426686 CLINCH PLATE,TURNBU Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	31	We can source it
3	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 426687 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	31	376 in stock
4	Vehicular Curtain NSN 2540-01-336-0791 · P/N 12342153-2 CURTAIN,VEHICULAR PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	1 in stock $4,148.02 per eachgov't list price
5	Clinch Plate NSN 5325-00-604-9662 · P/N 426686 CLINCH PLATE,TURNBU Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	13	We can source it
6	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 426687 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	13	376 in stock
7	Vehicular Window P/N 12340604 WINDOW,VEHICULAR Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	Ask us
8	Retaining Window Plate NSN 5340-01-198-0686 · P/N 12340710 PLATE,RETAINING,WIN Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it $116.69 per eachgov't list price
9	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE #8-32 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	36	We can source it
10	Self-Locking Hexagon Nut NSN 5310-00-941-6019 · P/N MS21083N08 NUT,SELF-LOCKING,HE #8-32 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	36	We can source it
11	Vehicular Door NSN 2510-01-197-5547 · P/N SF5581724 DOOR,VEHICULAR FRONT,R.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	3 in stock $1,149.18 per eachgov't list price
11	Vehicular Door NSN 2510-01-197-5546 · P/N SF5581723 DOOR,VEHICULAR FRONT,L.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	3 in stock $1,349.60 per eachgov't list price
11	Vehicular Door NSN 2510-01-330-2249 · P/N 12342157 DOOR,VEHICULAR REAR,L.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it quote only $938.60 per eachgov't list price
11	Vehicular Door NSN 2510-01-330-2250 · P/N 12342155 DOOR,VEHICULAR REAR,R.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	5 in stock $1,091.12 per eachgov't list price
12	Protective Dust and Moi Cap-Plug NSN 5340-01-026-3250 · P/N M5501/7-F2 CAP-PLUG,PROTECTIVE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	3,784 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-941-6019 · P/N MS21083N08 NUT,SELF-LOCKING,HE #8-32 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	We can source it
14	Retaining Window Plate NSN 5340-01-198-0686 · P/N 12340710 PLATE,RETAINING,WIN Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it $116.69 per eachgov't list price
15	Vehicular Window P/N 12340605 WINDOW,VEHICULAR Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
16	Machine Screw NSN 5305-00-071-1327 · P/N MS51960-70 SCREW,MACHINE #10-32 X 1/4 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	92 in stock
17	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 12301363-2 HANDLE,DOOR,VEHICUL L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	40 in stock
17	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 12301363-1 HANDLE,DOOR,VEHICUL R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	45 in stock
18	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	6 in stock
18	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	12 in stock
19	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	13	570 in stock
20	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it
21	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT 5/8 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it
22	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL L.H.,R.H. PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	29 in stock
23	Machine Screw NSN 5305-00-071-1315 · P/N MS51957-79 SCREW,MACHINE 1/4-20 X 1/2 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	We can source it
24	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE FRONT AND REAR, L.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
24	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE FRONT AND REAR, R.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	1 in stock $25–$40 eachtypical
25	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE #8-32 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	We can source it
26	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	17 in stock $25.99our price Buy online ↗
27	Plain Hexagon Nut NSN 5310-00-997-1888 · P/N MS35649-2252 NUT,PLAIN,HEXAGON 1/4-20 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	300 in stock
28	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-20 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	904 in stock
29	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 11/32 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	1,368 in stock
30	Cap Hexagon Head Screw NSN 5305-00-051-4076 · P/N B1821BH031F100N SCREW,CAP,HEXAGON H 5/16-24 X 1.00 PART OF KIT P/N 5705692 BEZEL,AUTO ( 1) 377-12 BOLT,MACHINE ( 4) 376-19 BOLT,MACHINE ( 6) 377-15 BOW,VEHICULAR TOP ( 2) 376-1 BOW,VEHICULAR TOP ( 1) 376-10 BRACKET,MOUNTING ( 1) 376-21 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	292 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
