HMMWV Swingfire Heater Kit, Harness Assemblies TM 9-2320-280-24P · Fig. 381

Every part in figure 381 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 4 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

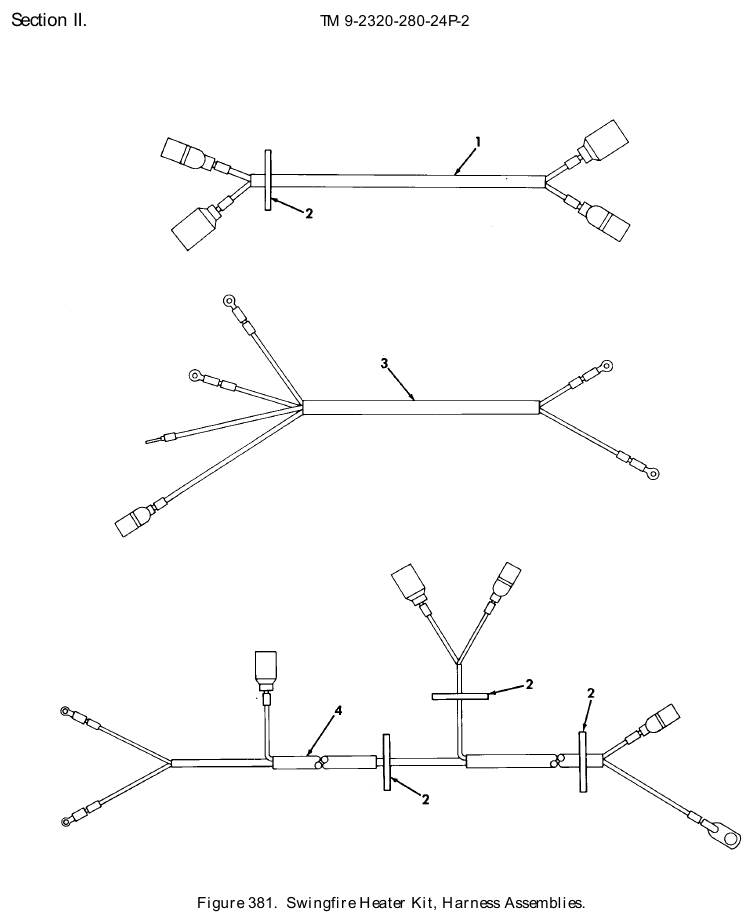

TM 9-2320-280-24P figure 381, Swingfire Heater Kit, Harness Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Special Purpose E Cable Assembly NSN 6150-01-314-5643 · P/N 12368396 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $35–$70 eachtypical
2	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	4	We can source it
3	Branched Wiring Harness NSN 6150-01-315-1148 · P/N 12368394 WIRING HARNESS,BRAN PART OF KIT P/N 5705615 Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $50–$95 eachtypical
4	Special Purpose E Cable Assembly NSN 6150-01-314-5241 · P/N 12368395 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5705615 HEATER ARMOR,SUPPLEMENTAL,( 1) 379-20 ARMOR,SUPPLEMENTAL,( 1) 379-20 BOLT,MACHINE ( 12) 379-29 BOLT,MACHINE ( 4) 379-24 BOLT,MACHINE ( 2) 379-13 BRACKET,MOUNTING ( 1) 379-35 BRACKET,ANGLE ( 1) 379-45 BRACKET,MULTIPLE AN( 1) 379-11 BUSHING,ELECTRICAL ( 1) 379-48 CABLE Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $801.38 per eachgov't list price
