HMMWV Two Door Seat and Floor Covers TM 9-2320-280-24P · Fig. 382

Every part in figure 382 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 19 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

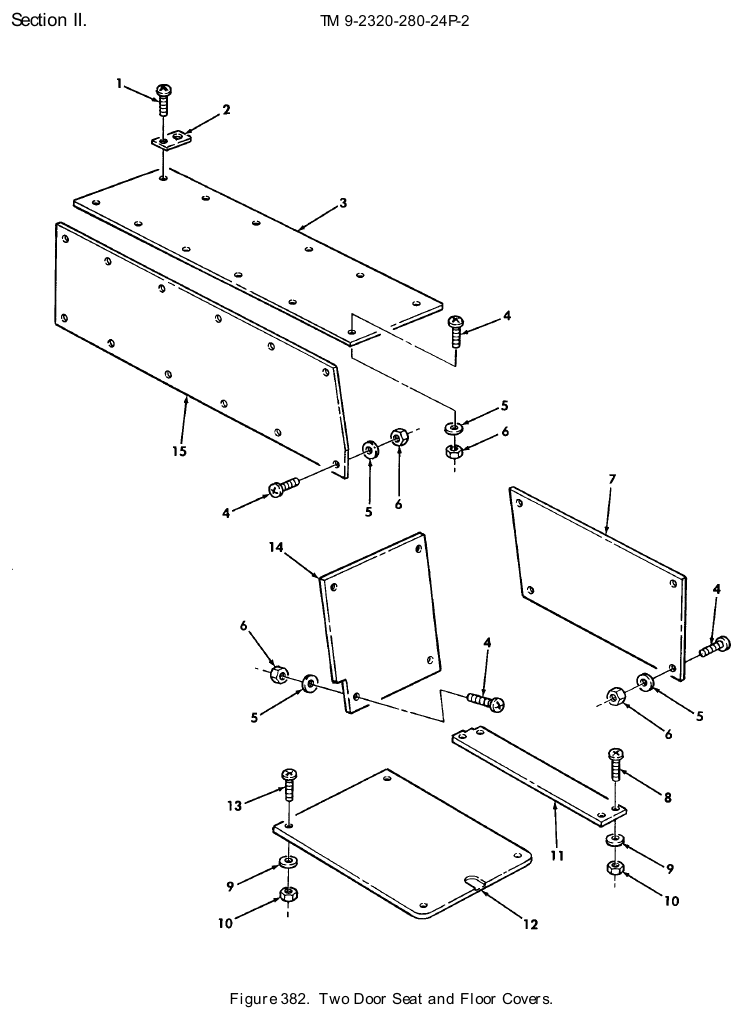

TM 9-2320-280-24P figure 382, Two Door Seat and Floor Covers: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Wood Screw
NSN 5305-00-900-2546 · P/N MS35492-28
SCREW,WOOD #6 X .50,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 12 We can source it
2
Plate Spacer
NSN 5365-01-316-8966 · P/N 12342210
SPACER,PLATE PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 12 We can source it
$414.37 per eachgov't list price
3
Top Cover Assembly L.h.
P/N 12342181
TOP COVER ASSEMBLY L.H.,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
3
Top Cover Assembly R.h.
P/N 12342182-2
TOP COVER ASSEMBLY R.H.,PART OF KIT 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
4
Machine Screw
NSN 5305-00-993-2457 · P/N MS35207-284
SCREW,MACHINE #10-32 X 1.50,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 48 We can source it
5
Flat Washer
NSN 5310-00-809-4058 · P/N MS27183-10
WASHER,FLAT #10,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 48 2,325 in stock
6
Self-Locking Hexagon Nut
NSN 5310-00-483-8791 · P/N MS17829-4F
NUT,SELF-LOCKING,HE #10-32,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 48 88 in stock
7
Make From Plywood Cover R.h.
P/N 12342171-1
COVER R.H., MAKE FROM PLYWOOD,P/N NN-P-530 PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
7
Make From Plywood Cover L.h.
P/N 12342171-2
COVER L.H.,MAKE FROM PLYWOOD,P/N NN-P-530 PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
8
Machine Screw
NSN 5305-00-959-2704 · P/N MS35191-324
SCREW,MACHINE 3/8-24 X 1.75,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 8 We can source it
9
Flat Washer
NSN 5310-01-016-4871 · P/N AN960-616
WASHER,FLAT 3/8,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 16 We can source it
10
Self-Locking Hexagon Nut
NSN 5310-01-058-3353 · P/N 192481
NUT,SELF-LOCKING,HE 3/8-24,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 16 We can source it
11
Floor L.h. Cover
P/N 12342170
COVER,FLOOR L.H.,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
11
Floor R.h. Cover
P/N 12342265
COVER,FLOOR R.H.,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
12
Seat Back
P/N 12342184
SEAT BACK PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 2 Ask us
13
Machine Screw
NSN 5305-00-824-2004 · P/N MS35191-326
SCREW,MACHINE 3/8-24 X 2.50,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 8 We can source it
$30–$70 eachtypical
14
Cover Assembly L.h.
P/N 12342172
COVER ASSEMBLY L.H.,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
14
Cover Assembly R.h.
P/N 12342183
COVER ASSEMBLY R.H.,PART OF KIT P/N 5705611
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us
15
Side Cover Assembly L.h.
P/N 12342180
COVER ASSEMBLY L.H.,SIDE,PART OF KIT P/N 5705611 KIT P/N 5705611..................... 1
Fits: M998, M998A1, M1038, M1038A1
 1 Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
