HMMWV Winterization Kit, Fuel Line and Jumper Cable TM 9-2320-280-24P · Fig. 386

Every part in figure 386 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 12 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

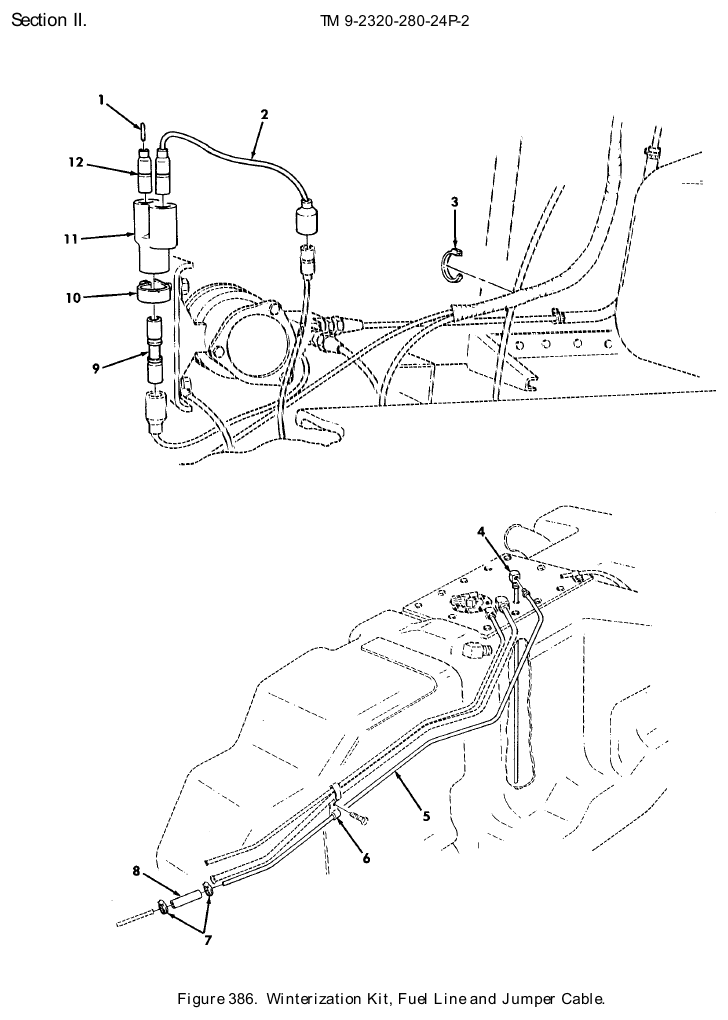

TM 9-2320-280-24P figure 386, Winterization Kit, Fuel Line and Jumper Cable: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY,CONNECTOR,PLU PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	123 in stock
2	Special Purpose E Cable Assembly NSN 6150-01-396-0906 · P/N 12342902 LEAD,ELECTRICAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$40 eachtypical
3	Tie Down Electrical Compon Strap NSN 5975-00-133-8687 · P/N MS3367-5-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
4	Metal Tube Assembly NSN 4710-01-203-0615 · P/N 5578694 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$65 per assemblytypical
5	Metal Tube Assembly NSN 4710-01-203-0607 · P/N 5588694 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $60–$100 per assemblytypical
6	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
7	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE PART OF KIT P/N 57T5611 Fits: M998, M998A1, M1038, M1038A1	2	9 in stock
8	Nonmetallic Hose NSN 4720-01-316-2538 · P/N 12338553-1 HOSE,NONMETALLIC PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	25 in stock
9	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	20 in stock
10	Loop Clamp NSN 5340-00-282-7537 · P/N MS21333-41 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	4 in stock
11	Connector Adapter NSN 5935-00-900-6281 · P/N MS27147-1 ADAPTER,CONNECTOR 3-WAY,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	65 in stock
12	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	218 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
