HMMWV Fuel Pump Tube Assembly TM 9-2320-280-24P · Fig. 385

Every part in figure 385 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 13 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

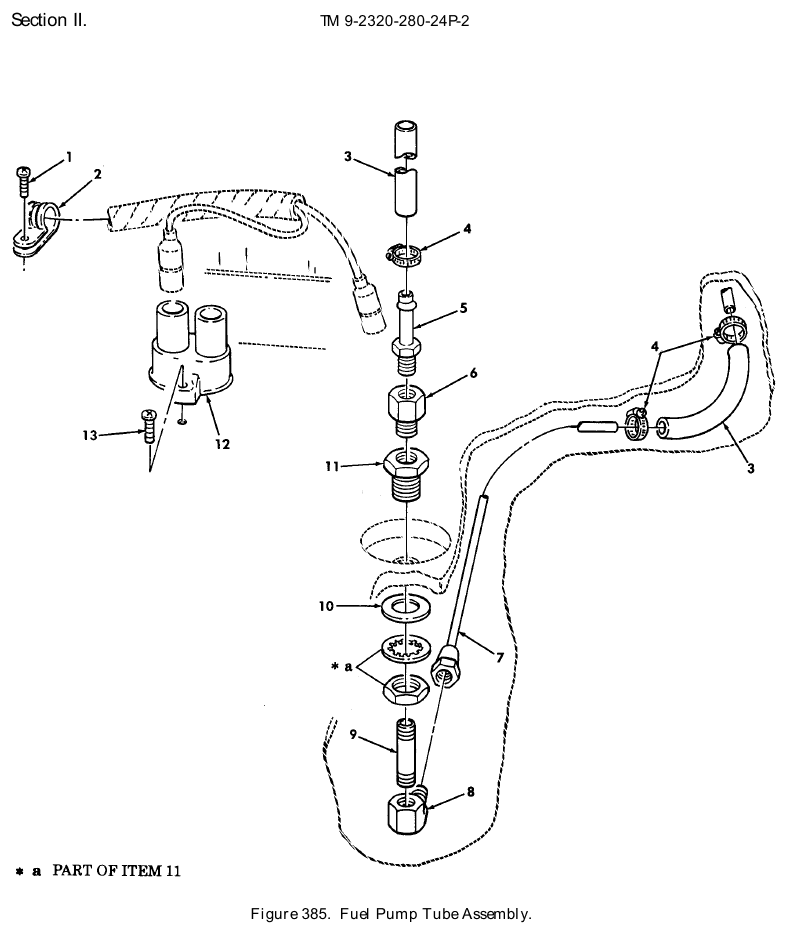

TM 9-2320-280-24P figure 385, Fuel Pump Tube Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wood Screw NSN 5305-00-056-7879 · P/N MS35493-74 SCREW,WOOD #10 X .50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
2	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
3	Tube Make From Hose P/N 94383154-3 TUBE MAKE FROM HOSE,P/N G3336US-10, 7 INCHES LONG PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	Ask us
4	Hose Clamp NSN 4730-00-278-2523 · P/N B54-32780 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	589 in stock
5	Straight Pipe to Hose Adapter NSN 4730-01-357-6523 · P/N BN252 ADAPTER,ATRAIGHT,PI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $720.66 per eachgov't list price
6	Pipe Coupling NSN 4730-01-347-7342 · P/N 4-4 130139C COUPLING,PIPE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$45 eachtypical
7	Metal Tube Assembly NSN 4710-01-317-1045 · P/N 12342270 TUBE ASEMBLY,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $540.01 per eachgov't list price
8	Pipe to Tube Elbow NSN 4730-01-203-1025 · P/N 5010203CA ELBOW,PIPE TO TUBE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$40 eachtypical
9	Pipe Nipple NSN 4730-01-315-3242 · P/N MS51873-32 NIPPLE,PIPE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
10	Flat Washer NSN 5310-00-809-8533 · P/N MS27183-23 WASHER,FLAT 1-1/2,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	41 in stock
11	Pipe Coupling NSN 4730-00-897-5497 · P/N W21204 COUPLING,PIPE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
12	Circuit Breaker NSN 5925-00-026-4767 · P/N M13516/1-1 CIRCUIT BREAKER PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	190 in stock
13	Wood Screw NSN 5305-00-901-2134 · P/N MS35493-55 SCREW,WOOD #8 X 1.00,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
