Catalog › Parts manuals › TM 9-2320-280-24P › Winterization Kits › Fig. 388

HMMWV Winterization Kit, Control Box, Filter, and Cover Assembly TM 9-2320-280-24P · Fig. 388

Every part in figure 388 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 17 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

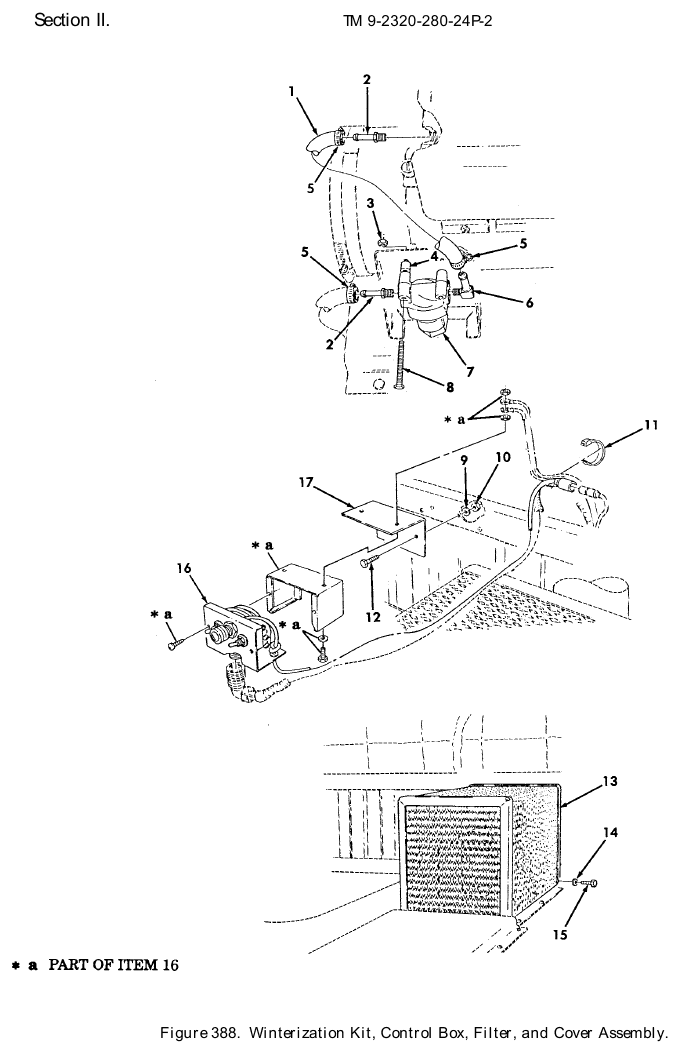

TM 9-2320-280-24P figure 388, Winterization Kit, Control Box, Filter, and Cover Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Make From Hose Hose P/N 12338553-2 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 9438315,14 INCHES LONG,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
2	Straight Pipe to Hose Adapter NSN 4730-01-357-5651 · P/N 5-2 430160C ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
3	Self-Locking Hexagon Nut NSN 5310-00-877-5797 · P/N MS21044N3 NUT,SELF-LOCKING,HE #10-32,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	364 in stock
4	Sleeve Spacer NSN 5365-01-318-2066 · P/N 8359764 SPACER,SLEEVE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $339.54 per eachgov't list price
5	Hose Clamp NSN 4730-00-278-2523 · P/N B54-32780 CLAMP,HOSE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	589 in stock
6	Pipe to Hose Elbow NSN 4730-01-348-6231 · P/N 5-2 430260 ELBOW PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $150.64 per eachgov't list price
7	Fluid Filter Element NSN 2910-01-445-8097 · P/N A52472-1 FILTER ELEMENT,FLUI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	15 in stock $169.59 per eachgov't list price
8	Cap Hexagon Head Screw NSN 5305-01-120-4363 · P/N 9415779 SCREW,CAP,HEXAGON H #10-32 X 2.00 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
9	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	2,325 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N MS51943-32 NUT,SELF-LOCKING,HE 1/4-28,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
11	Tie Down Electrical Compon Strap NSN 5975-00-133-8687 · P/N MS3367-5-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-267-8953 · P/N B1821BH025F063N SCREW,CAP,HEXAGON H 1/4-28 X .625 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	1,020 in stock
13	Heater Duct Shield NSN 2540-01-320-8918 · P/N 12342189 SHIELD,HEATER DUCT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $254.87 per eachgov't list price
14	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	4,285 in stock
15	Machine Bolt NSN 5306-00-068-0513 · P/N B1821BH025F075N BOLT,MACHINE 1/4-28 X .75,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	2,221 in stock
16	Electrical Vehicular Control Box NSN 2540-01-125-6154 · P/N 11669705 CONTROL BOX PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	82 in stock $819.77our price Buy online ↗
17	Angle Bracket NSN 5340-01-317-2675 · P/N 12342260 BRACKET,ANGLE PART PF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $55–$100 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
