HMMWV Seat Support Assemblies and Mounting Hardware TM 9-2320-280-24P · Fig. 389

Every part in figure 389 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 15 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

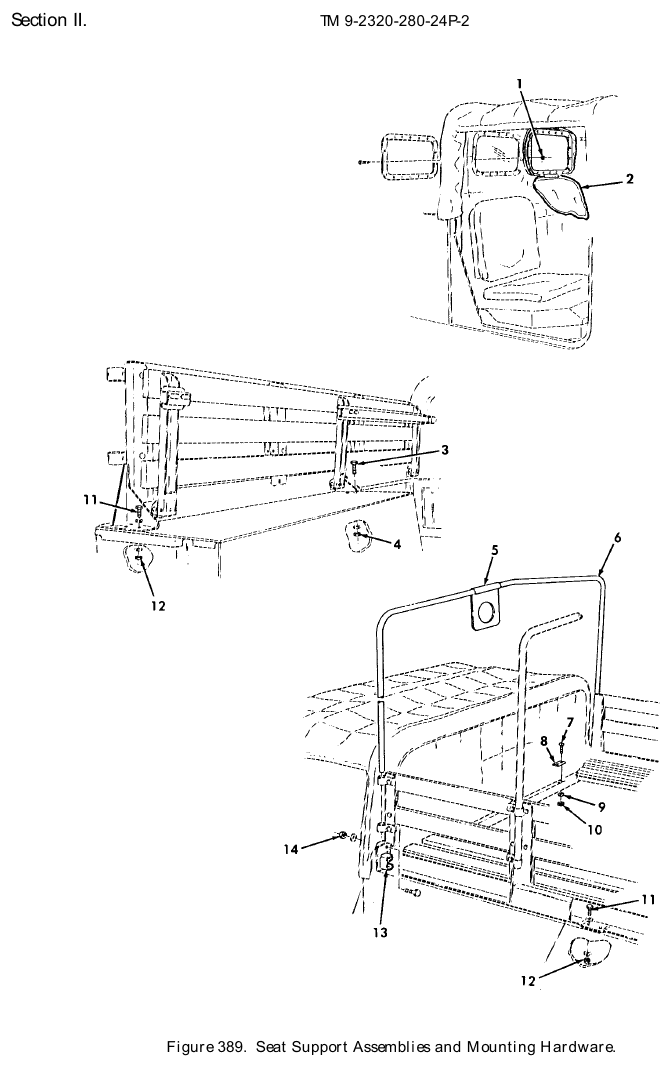

TM 9-2320-280-24P figure 389, Seat Support Assemblies and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-941-6019 · P/N MS21083N08 NUT,SELF-LOCKING,HE #10-24 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	36	We can source it
2	Vehicular Blackout Curtain NSN 2540-00-104-2889 · P/N 11609693-1 CURTAIN,VEHICULAR,B PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $156.56 per eachgov't list price
3	Cap Hexagon Head Screw NSN 5305-00-071-2056 · P/N B1821BH044C175N SCREW,CAP,HEXAGON H 7/16-14 X 1.75 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	348 in stock
4	Self-Locking Nut NSN 5310-01-318-5237 · P/N 9419456 NUT,SELF-LOCKING,HE 7/16-14,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
5	Mounting Bracket NSN 5340-01-317-7501 · P/N 12342266 BRACKET,MOUNTING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $65–$110 eachtypical
6	Vehicular Top Bow NSN 2540-01-199-6760 · P/N 5581331 BOW,VEHICULAR TOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	3 in stock $118.73 per eachgov't list price
7	Machine Screw NSN 5305-00-993-2457 · P/N MS35207-284 SCREW,MACHINE 1/4-28 X 1.25,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
8	Plywood Block NSN 2510-01-316-0216 · P/N 12342166 BLOCK,PLYWOOD PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $25–$40 eachtypical
9	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	2,325 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-483-8791 · P/N MS17829-4F NUT,SELF-LOCKING,HE 1/4-28,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	88 in stock
11	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	18	558 in stock
12	Self-Locking Hexagon Nut NSN 5310-01-066-6759 · P/N 21NE-040 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	18	84 in stock
13	Vehicular Components Bracket NSN 2530-01-317-0534 · P/N 12342175 BRACKET,VEHICULAR C R.H.,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock $195.46our price Buy online ↗
13	Vehicular Components Bracket NSN 2590-01-317-0535 · P/N 12342264 BRACKET,VEHICULAR C L.H.,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $80–$135 eachtypical
14	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	6	904 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
