HMMWV Alternator/Power Steering Pump Mounting Bracket and Related Parts (Serial Number 196901 and Above) TM 9-2320-280-24P · Fig. 38A

Every part in figure 38A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 06 Electrical System: 9 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

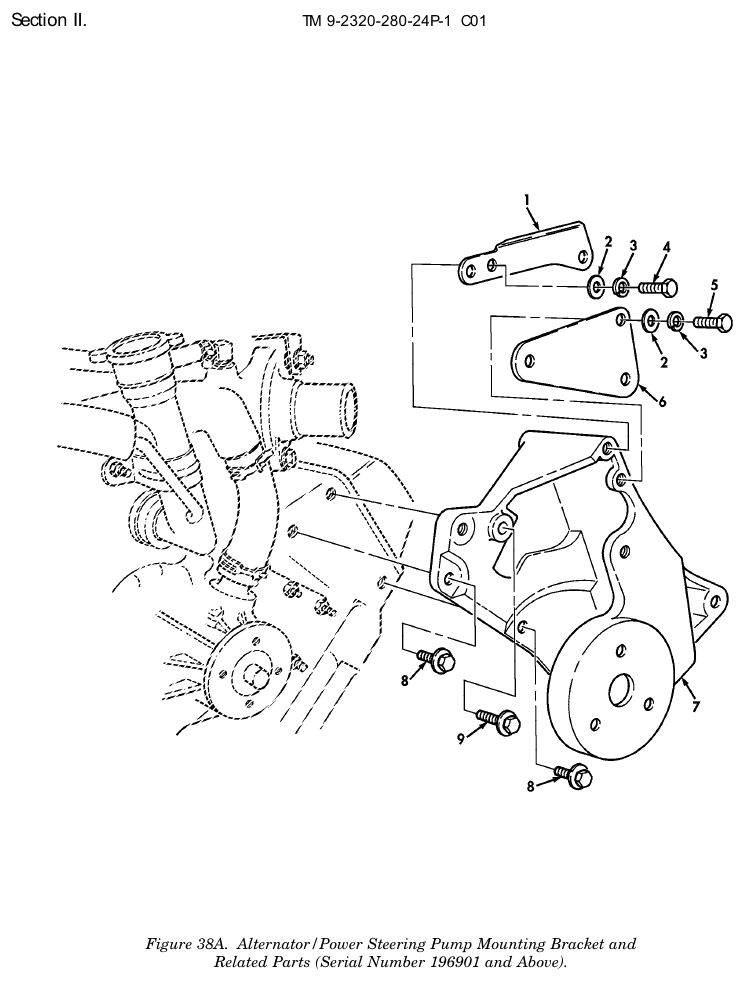

TM 9-2320-280-24P figure 38A, Alternator/Power Steering Pump Mounting Bracket and Related Parts (Serial Number 196901 and Above): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-488-6073 · P/N 12469475 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	We can source it $25–$60 eachtypical
2	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT Fits: All A2 models, plus M1123	2	6 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A2 models, plus M1123	2	1,162 in stock
4	Screw NSN 5935-00-774-2317 · P/N B1821BH038C150N SCREW,CAP HEXAGON H Fits: All A2 models, plus M1123	1	We can source it
5	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP HEXAGON H Fits: All A2 models, plus M1123	1	26 in stock
6	Mounting Bracket NSN 5340-01-488-5643 · P/N 12469474 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	We can source it
7	Mounting Bracket NSN 5340-01-488-6179 · P/N 12469497 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	We can source it quote only $450.03 per eachgov't list price
8	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE M10-1.5 X 20 Fits: All A2 models, plus M1123	2	65 in stock
9	Machine Bolt NSN 5985-01-275-5448 · P/N 12340845-3 BOLT,MACHINE M10-1.5 X 45 Fits: All A2 models, plus M1123	1	We can source it
