HMMWV 200 Amp Alternator, M996, M996A1, M997, M997A1, M1097, and M1097A1 (PRESTOLITE) TM 9-2320-280-24P · Fig. 39

Every part in figure 39 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 80 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

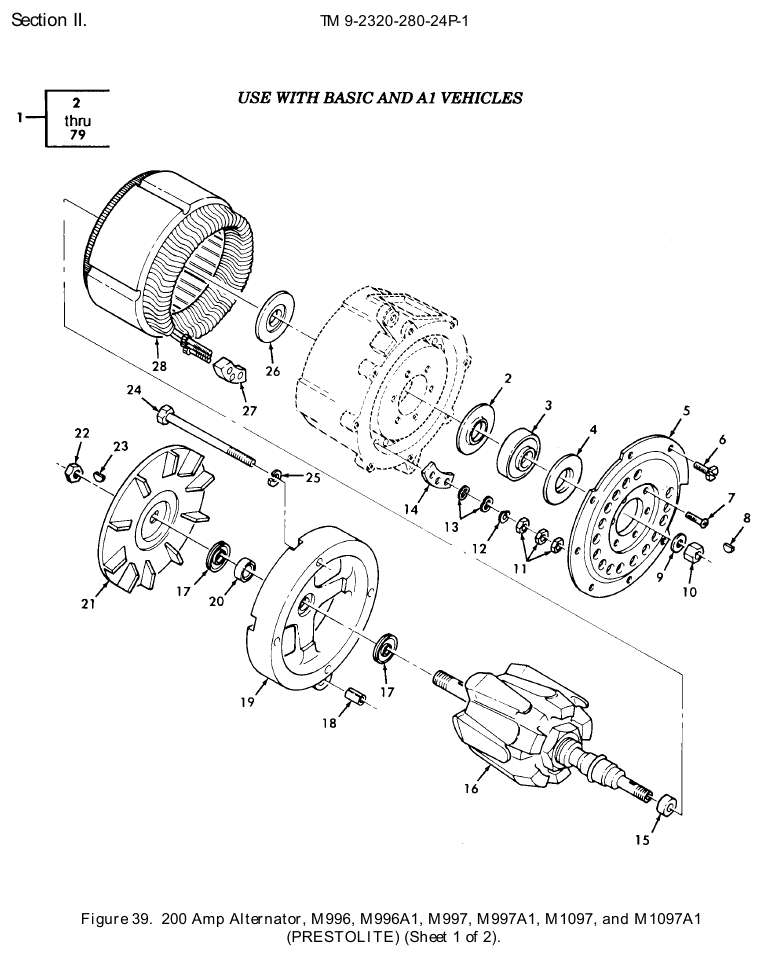

TM 9-2320-280-24P figure 39, 200 Amp Alternator, M996, M996A1, M997, M997A1, M1097, and M1097A1 (PRESTOLITE), sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Generator NSN 2920-01-264-6542 · P/N 12338796-1 GENERATOR,ENGINE AC 200 AMP Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	47 in stock
2	Plain Seal NSN 5330-01-272-5474 · P/N 95513 SEAL,PLAIN Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $40–$75 eachtypical
3	Ball Bearing Unit NSN 3130-01-271-6464 · P/N 95510 BEARING UNIT,BALL Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
4	Plain Seal NSN 5330-01-272-7454 · P/N 100276 SEAL,PLAIN Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $120.08 per eachgov't list price
5	Access Cover NSN 5340-01-272-5516 · P/N 95552 COVER,ACCESS Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
6	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE #10-32 X .5 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	8	We can source it
7	Machine Screw NSN 5305-00-601-7729 · P/N 4465 SCREW,MACHINE #10-32 X .5 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	6	We can source it $25–$55 eachtypical
8	Woodruff Key NSN 5315-00-012-4553 · P/N MS35756-17 KEY,WOODRUFF #15 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	1,575 in stock
9	Flat Washer NSN 5310-00-595-6612 · P/N MS20002-12 WASHER,FLAT 3/4 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	100 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-419-0876 · P/N MS21245-L12 NUT,SELF-LOCKING,HE 3/4-16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $25–$50 eachtypical
11	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON 3/8-16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	11	12 in stock
12	Flat Washer NSN 5310-00-112-2233 · P/N SP1548-1 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	3	We can source it $65–$110 eachtypical
13	Flat Washer NSN 5310-01-270-8377 · P/N 95605 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	6	We can source it $35–$70 eachtypical
14	Plate Insulator NSN 5970-01-269-8384 · P/N 95467 INSULATOR,PLATE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
15	Sleeve Spacer NSN 5365-01-272-7502 · P/N 96745 SPACER,SLEEVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
16	Rotor Assembly NSN 2920-01-310-9978 · P/N 96520 ROTOR ASSEMBLY Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	1 in stock
17	Plain Seal NSN 5330-01-272-9071 · P/N 95483 SEAL,PLAIN Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	8 in stock $30–$65 eachtypical
18	Sleeve Bushing NSN 3120-01-270-2645 · P/N 77960 BUSHING,SLEEVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $85–$145 eachtypical
19	Housing Assembly P/N 96846 HOUSING ASSEMBLY Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	Ask us
20	Roller Tapered Bearing NSN 3110-01-271-6355 · P/N 96764 BEARING,ROLLER,TAPE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
21	Fan Centrifugal Impeller NSN 4140-01-269-7911 · P/N 95972 IMPELLER,FAN,CENTRI Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
22	Self-Locking Clinch Nut NSN 5310-01-270-8415 · P/N 74107 NUT,SELF-LOCKING,CL 1/2-20 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $75–$130 eachtypical
23	Machine Key NSN 5315-01-265-8771 · P/N 1869 KEY,MACHINE #7 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $35–$70 eachtypical
24	Machine Bolt NSN 5306-01-272-4798 · P/N 95469 BOLT,MACHINE 5/16-18 X 5.00 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
25	Lock Washer NSN 5310-00-171-1734 · P/N 1459-254 WASHER,LOCK 5/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	5	We can source it
26	Gasket NSN 5330-01-270-3668 · P/N 95498 GASKET Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $285.39 per eachgov't list price
27	Terminal Insulator NSN 5970-01-270-1465 · P/N 96259 INSULATOR,TERMINAL Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $35–$75 eachtypical
28	Stator NSN 2920-01-310-9973 · P/N A022096282 STATOR,ENGINE GENER Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
29	Toggle Switch NSN 5930-00-736-3539 · P/N 5582 SWITCH,TOGGLE #6-32 X 5/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	16	2 in stock
30	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK #6 STEEL Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	12	29 in stock
31	Cap Hexagon Head Screw NSN 5305-01-282-2667 · P/N 95504 SCREW,CAP,HEXAGON H 5/16-18 X 1/2 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
32	Machine Screw NSN 5305-00-989-6265 · P/N MS35207-262 SCREW,MACHINE #10-32 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	347 in stock
33	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	709 in stock
34	Access Cover NSN 5340-01-272-2677 · P/N 100212 COVER,ACCESS Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
35	Regulator P/N R027100150 REGULATOR,ENGINE GE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	Ask us
36	Machine Screw NSN 5305-01-272-9024 · P/N 2879 SCREW,MACHINE #10-32 X 1-1/4 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
37	Lock Washer NSN 5310-00-775-5139 · P/N 2434 WASHER,LOCK #10 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	6	2 in stock
38	Lead NSN 6150-01-269-1855 · P/N 96154 LEAD,ELECTRICAL RED Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
39	Mending Plate P/N 96247 PLATE,MENDING Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	Ask us
40	Electrical Lead NSN 6150-01-269-1856 · P/N 96160 LEAD,ELECTRICAL BLACK Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
41	Rigid Connecting Link NSN 3040-01-271-3823 · P/N 96377 CONNECTING LINK,RIG Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
42	Flat Washer NSN 5310-00-429-3453 · P/N 75451 WASHER,FLAT #10 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
43	Plain Hexagon Nut NSN 5310-00-429-3135 · P/N 4340 NUT,PLAIN,HEXAGON #10-32 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
44	Plain Hexagon Nut NSN 5310-00-429-3156 · P/N 59982S NUT TERMINAL 1/4-20 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
45	Flat Washer NSN 5310-01-143-1679 · P/N Z0982-75723 WASHER,FLAT Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
46	Electrical Lead NSN 6150-01-269-1857 · P/N 100204 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
47	Machine Screw NSN 5305-01-272-9025 · P/N 13981 SCREW,MACHINE #4-40 X 5/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
48	Lock Washer NSN 5310-01-272-4831 · P/N 7266 WASHER,LOCK #4 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
49	Access Cover NSN 5340-01-270-8484 · P/N 100210 COVER,ACCESS Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
50	Sleeve Spacer NSN 5365-01-272-4877 · P/N 96180 SPACER,SLEEVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $30–$60 eachtypical
51	Lead Assembly NSN 6150-01-269-1863 · P/N 96162 LEAD ASSEMBLY,ELECT Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
52	Cap Hexagon Head Screw NSN 5305-01-147-5864 · P/N Z116095517 SCREW,CAP,HEXAGON H 5/16-18 X 1/2 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it $30–$65 eachtypical
53	Metallic Rectifier NSN 6130-01-309-6458 · P/N 96756 RECTIFIER,METALLIC Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $1,138.12 per eachgov't list price
54	Plain Stud NSN 5307-01-272-7539 · P/N 95484 STUD,PLAIN Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	5 in stock
55	Lock Washer NSN 5310-01-210-0819 · P/N 26351 WASHER,LOCK 5/16 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	3	We can source it
56	Plain Slotted Hexagon Nut NSN 5310-01-280-6751 · P/N MS35692-53 NUT,PLAIN,SLOTTED,H 1/4 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
57	Machine Screw NSN 5305-00-777-2284 · P/N Z106005179 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	We can source it
58	Extractor Post Fuseholder NSN 5920-01-275-8096 · P/N Z116 096169 .FUSEHOLDER,EXTRACTO Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $25–$40 eachtypical
59	Sleeve Bushing NSN 3120-01-271-6432 · P/N 96171 BUSHING,SLEEVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $25–$60 eachtypical
60	Fuse Insulator NSN 5970-01-270-1467 · P/N 96187 INSULATOR,FUSE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
61	Flat Washer NSN 5310-01-271-1841 · P/N 5295 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
62	Electrical Fuse Link NSN 5920-01-348-0303 · P/N N9414 FUSE LINK,ELECTRICA Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $25–$40 eachtypical
63	Holder NSN 5977-01-407-2847 · P/N A777100841 HOLDER,ELECTRICAL C Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
64	Electrical Lead NSN 6150-01-269-1858 · P/N 96156 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
65	Electrical Lead NSN 6150-01-269-1854 · P/N 96158 LEAD,ELECTRICAL RED Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $85–$140 eachtypical
66	Electrical Contact Brush NSN 5977-01-270-1466 · P/N A010095461 BRUSH,ELECTRICAL CO Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	4 in stock $30–$60 per assemblytypical
67	Gasket NSN 5330-01-270-8316 · P/N 96172 GASKET Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	2	1 in stock $25–$40 eachtypical
68	Holder NSN 5977-01-143-6996 · P/N 99479 HOLDER,ELECTRICAL C Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
69	Preformed Packing NSN 5330-01-145-5376 · P/N 99514 PACKING,PREFORMED Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
70	Retaining Plate NSN 5340-01-273-6944 · P/N 96769 PLATE,RETAINING,SEA Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
71	Gasket NSN 5330-01-272-8337 · P/N 96768 GASKET Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
72	Brush Cover NSN 5977-01-270-1468 · P/N 95515 COVER,BRUSH Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $1,574.39 per eachgov't list price
73	Sleeve Spacer NSN 5365-01-272-2663 · P/N 95516 SPACER,SLEEVE Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	4 in stock
74	Circuit Card Assembly NSN 5998-01-147-7895 · P/N R055101472 CIRCUIT CARD ASSEMB DIODE TRIO Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it quote only
75	Washer Insulator NSN 5970-01-260-9132 · P/N 95965 INSULATOR,WASHER #8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
76	Flat Washer NSN 5310-01-143-1679 · P/N 36912 WASHER,FLAT #8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
77	Lock Washer NSN 5310-00-045-3299 · P/N 36895 WASHER,LOCK #8 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	84 in stock
78	Machine Screw NSN 5305-01-272-8302 · P/N 23304 SCREW,MACHINE #8-32 X 1-3/4 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	4	We can source it
79	Electrical Lead NSN 6150-01-335-3087 · P/N 100209 LEAD,ELECTRICAL BLACK,#11 Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it $25–$50 eachtypical
80	Electrical Grounding Strip NSN 5999-01-372-5601 · P/N 12341151 STRIP,ELECTRICAL GR Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	We can source it
