HMMWV Top Plate Support and Attaching Hardware TM 9-2320-280-24P · Fig. 391

Every part in figure 391 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 9 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

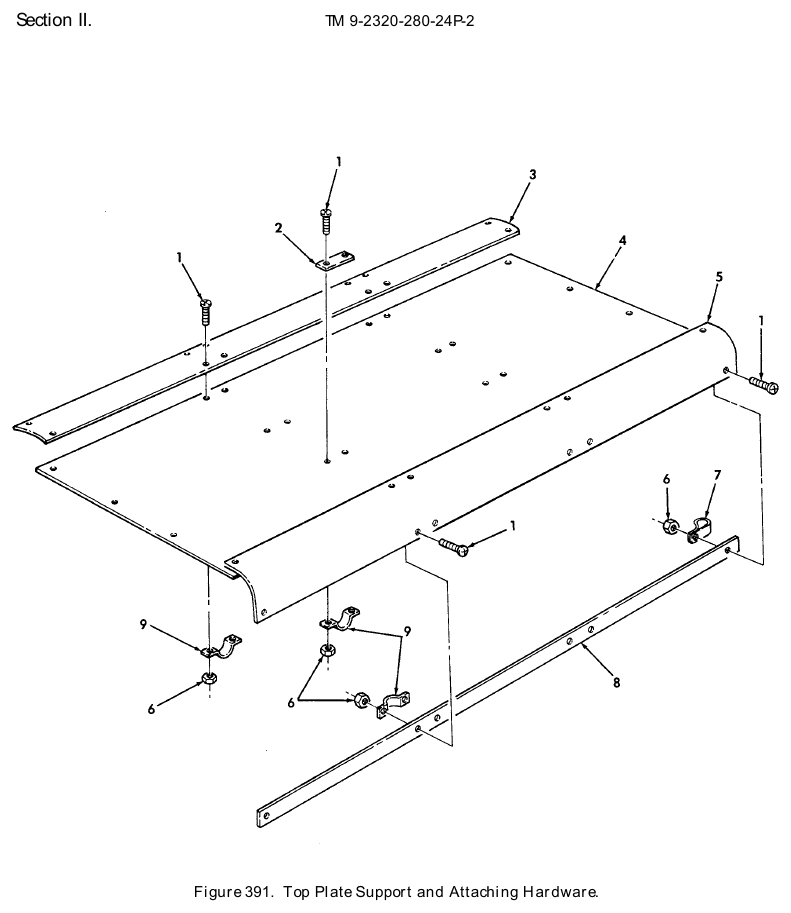

TM 9-2320-280-24P figure 391, Top Plate Support and Attaching Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-993-2460 · P/N MS35207-282 SCREW,MACHINE 1/4-28 X .875 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	50	We can source it
2	Mending Plate NSN 5340-01-318-2040 · P/N 12342218 PLATE,MENDING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	We can source it $590.29 per eachgov't list price
3	Seam Plate P/N 12342226 PLATE,SEAM PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
4	Support P/N 12342220-1 SUPPORT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
5	Support P/N 12342221 SUPPORT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
6	Plain Extended Washer Hexago Nut NSN 5310-01-317-4022 · P/N 9413553 NUT,PLAIN,EXTENDED 1/4-28 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	50	We can source it
7	Loop Clamp NSN 5340-01-317-9086 · P/N 12342234 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	10	We can source it $101.74 per eachgov't list price
8	Support P/N 12342220-2 SUPPORT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
9	Retaining Strap NSN 5340-01-319-9426 · P/N 12342235 STRAP,RETAINING,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	20	We can source it $528.81 per eachgov't list price
