HMMWV Fuel Can Bracket, Antenna Mounting Bracket, and Composite Light Housing Mounting Hardware TM 9-2320-280-24P · Fig. 392

Every part in figure 392 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 11 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

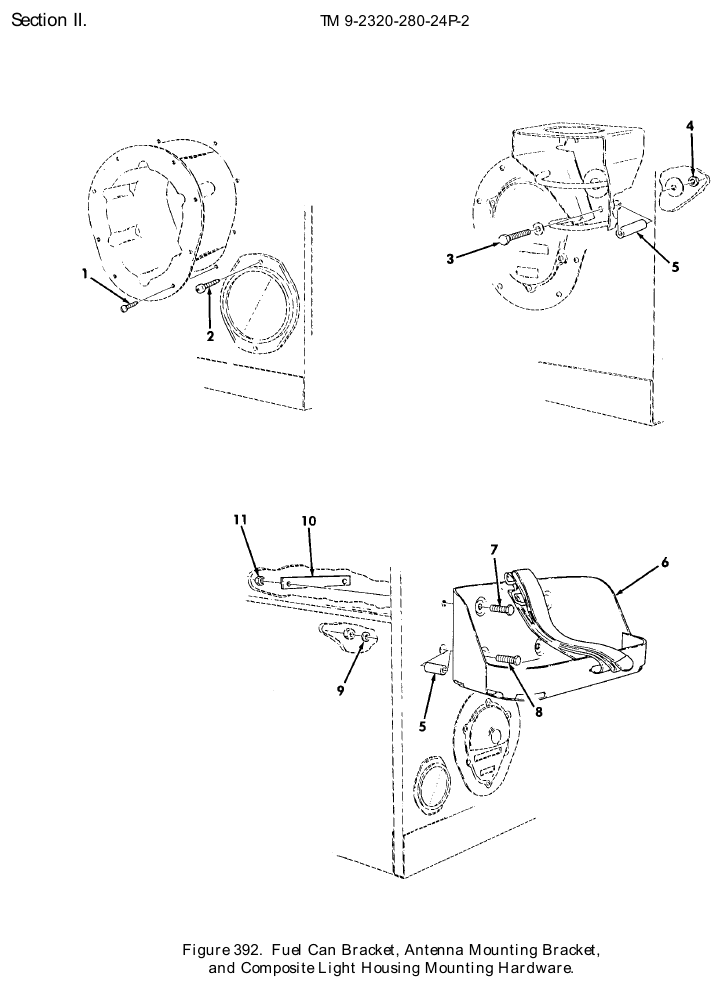

TM 9-2320-280-24P figure 392, Fuel Can Bracket, Antenna Mounting Bracket, and Composite Light Housing Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wood Screw NSN 5305-00-014-9926 · P/N MS35493-76 SCREW,WOOD #10 X .875,PART OF KIT 5705611 Fits: M998, M998A1, M1038, M1038A1	16	700 in stock
2	Wood Screw NSN 5305-01-315-9512 · P/N MS35495-124 SCREW,WOOD #14 X .75,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it $141.61 per eachgov't list price
3	Machine Bolt NSN 5306-00-225-9097 · P/N MS90726-42 BOLT,MACHINE 5/16-24 X 2.50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	38 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-088-0553 · P/N 190139 NUT,SELF-LOCKING,HE 5/16-24,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	184 in stock
5	Sleeve Spacer NSN 5365-01-316-8985 · P/N 12342237 SPACER,SLEEVE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	5	We can source it $25–$40 eachtypical
6	Vehicular Components Bracket NSN 2590-00-473-6331 · P/N C21452 BRACKET ASSEMBLY,LI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	59 in stock $121.51our price Buy online ↗
7	Cap Hexagon Head Screw NSN 5305-00-914-6131 · P/N MS18153-63 SCREW,CAP,HEXAGON H 3/8-24 X 1.75, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-269-2811 · P/N MS90726-67 SCREW,CAP,HEXAGON H 3/8-24 X 2.50, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	51 in stock
9	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	1,146 in stock $7.83our price Buy online ↗
10	Mending Plate NSN 5340-01-318-2041 · P/N 12342219 PLATE,MENDING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
11	Self-Locking Hexagon Nut NSN 5310-01-058-3353 · P/N 192481 NUT,SELF-LOCKING,HE 3/8-24,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
