HMMWV Screw Caps and Winterization Instruction Plate TM 9-2320-280-24P · Fig. 394

Every part in figure 394 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 5 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

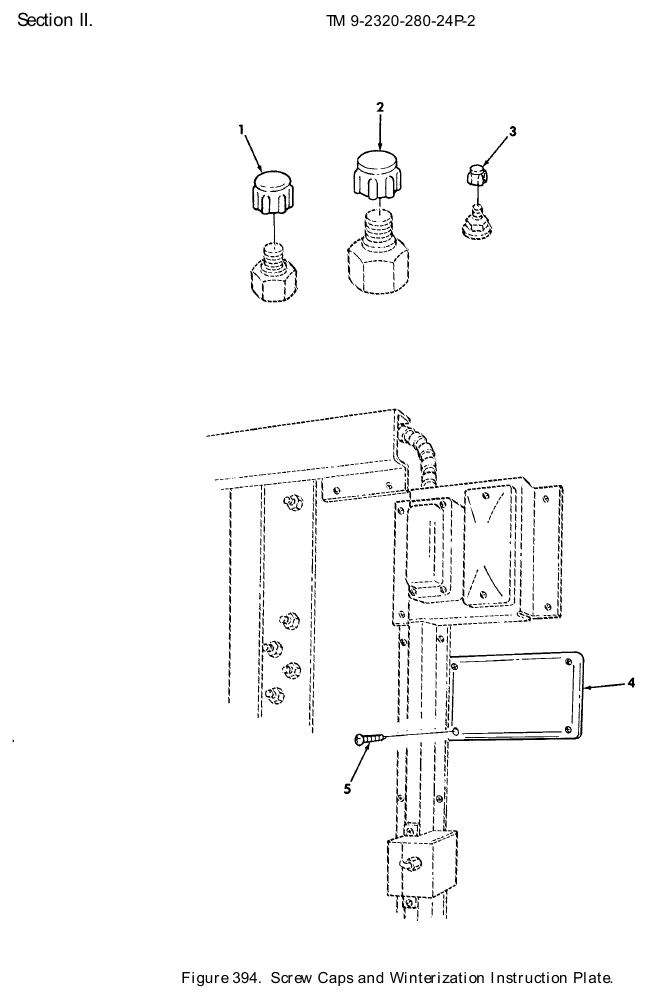

TM 9-2320-280-24P figure 394, Screw Caps and Winterization Instruction Plate: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Protective Dust and Moisture Cap NSN 5340-00-727-4774 · P/N M5501/11-F5 CAP,PROTECTIVE,DUST PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	23	We can source it
2	Protective Dust and Moisture Cap NSN 5340-01-167-9314 · P/N M5501/11-F7 CAP,PROTECTIVE,DUST PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	29 in stock
3	Protective Dust and Moisture Cap NSN 5340-01-174-4894 · P/N M5501/11-F1 CAP.PROTECTIVE,DUST PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	52	2,428 in stock
4	Instruction Plate NSN 9905-01-032-7002 · P/N 10896651 PLATE,INSTRUCTION PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock
5	Wood Screw NSN 5305-00-901-2099 · P/N MS35493-51 SCREW,WOOD #8 X .50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
