HMMWV Top Cover Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 395

Every part in figure 395 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 24 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

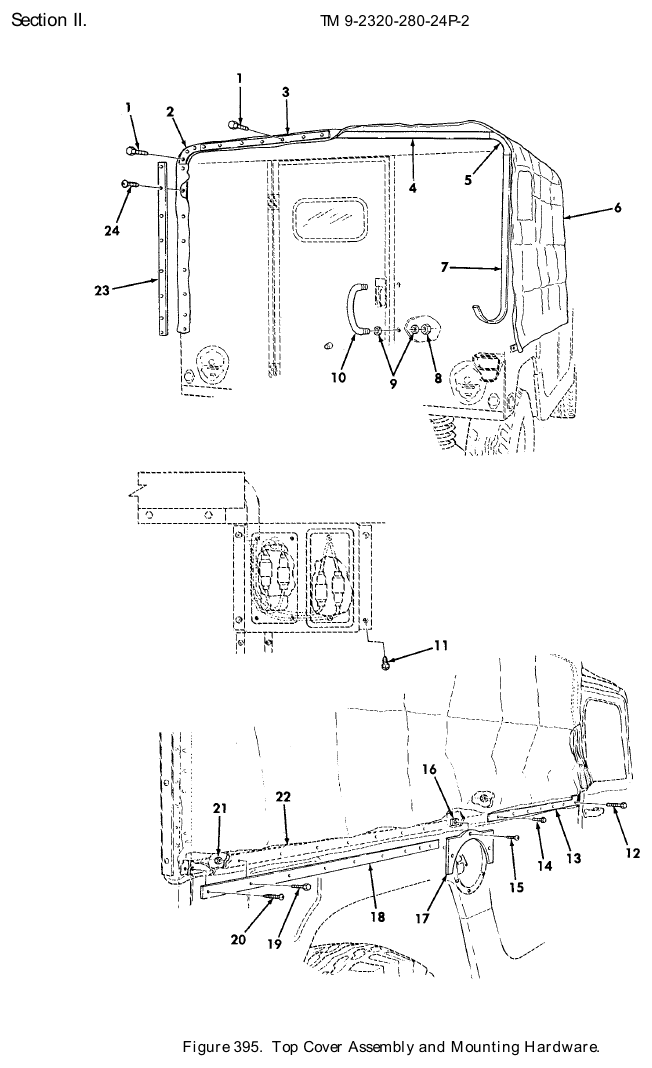

TM 9-2320-280-24P figure 395, Top Cover Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tapping Screw NSN 5305-00-432-4253 · P/N MS51861-67 SCREW,TAPPING 1/4-14 X .75,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	20	100 in stock
2	Automotive Trim Bezel NSN 2590-01-317-3952 · P/N 12342195 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	34 in stock $30–$60 eachtypical
3	Automotive Trim Bezel NSN 2590-01-317-8292 · P/N 12342216 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $210.95 per eachgov't list price
4	Rubber Strip NSN 5330-01-317-5393 · P/N 12342345 RUBBER STRIP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $35–$75 eachtypical
5	Nonmetallic Strip Seal NSN 5330-01-318-1998 · P/N 12342343 SEAL,NONMETALLIC ST PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $30–$70 eachtypical
6	Fitted Vehicular Body Cover NSN 2540-01-315-3762 · P/N 12342187 COVER,FITTED,VEHICU PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $2,176.37 per eachgov't list price
7	Rubber Strip NSN 5330-01-318-9780 · P/N 12342344 RUBBER,STRIP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $35–$75 eachtypical
8	Self-Locking Hexagon Nut NSN 5310-01-317-8164 · P/N 272739 NUT,SELF-LOCKING,HE 5/8-18,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
9	Flat Washer NSN 5310-00-498-6675 · P/N 1788116 WASHER,FLAT 5/8,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it $40–$80 eachtypical
10	Door Vehicular Handle NSN 2540-01-317-4289 · P/N 11602903 HANDLE,DOOR PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $482.29 per eachgov't list price
11	Wood Screw NSN 5305-00-056-7879 · P/N MS35493-74 SCREW,WOOD #10 X .50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-071-2237 · P/N MS90725-14 SCREW,CAP,HEXAGON H 1/4-20 X 2.00, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	500 in stock
13	Mounting Plate NSN 5340-01-320-2060 · P/N 12342201 PLATE,MOUNTING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $50–$100 eachtypical
14	Cap Hexagon Head Screw NSN 5305-00-071-2056 · P/N B1821BH044C175N SCREW,CAP,HEXAGON H 7/16-14 X 1.75 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	6	348 in stock
15	Tapping Screw NSN 5305-01-315-9524 · P/N MS51850-69 SCREW,TAPPING #10 X 1.25,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
16	Sheet Spring Nut NSN 5310-01-110-1145 · P/N MS90724-39 NUT,SHEET SPRING #10-39,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	3	We can source it $124.50 per eachgov't list price
17	Structural Vehicul Frame Section NSN 2510-01-319-9384 · P/N 12342258 FRAME SECTION,STRUC PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock $40–$75 eachtypical
18	Automotive Trim Bezel NSN 2590-01-317-4855 · P/N 12342185 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$45 eachtypical
19	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	471 in stock
20	Wood Screw NSN 5305-01-317-0409 · P/N MS35489-127 SCREW,WOOD #14 X 1.25,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
21	Plain Extended Washer Hexago Nut NSN 5310-01-012-8962 · P/N 9416918 NUT,PLAIN,EXTENDED 1/4-20,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	15	We can source it
22	Rubber Strip NSN 5330-01-317-5392 · P/N 12342248 RUBBER STRIP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$70 eachtypical
23	Automotive Trim Bezel NSN 2590-01-317-7561 · P/N 12342215 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $55–$95 eachtypical
24	Wood Screw NSN 5305-01-315-9882 · P/N MS35495-126 SCREW,WOOD #14 X 1.00,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	24	We can source it $112.94 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
