HMMWV Engine and Crew Compartment Heater and Related Parts TM 9-2320-280-24P · Fig. 397A

Every part in figure 397A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 39 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

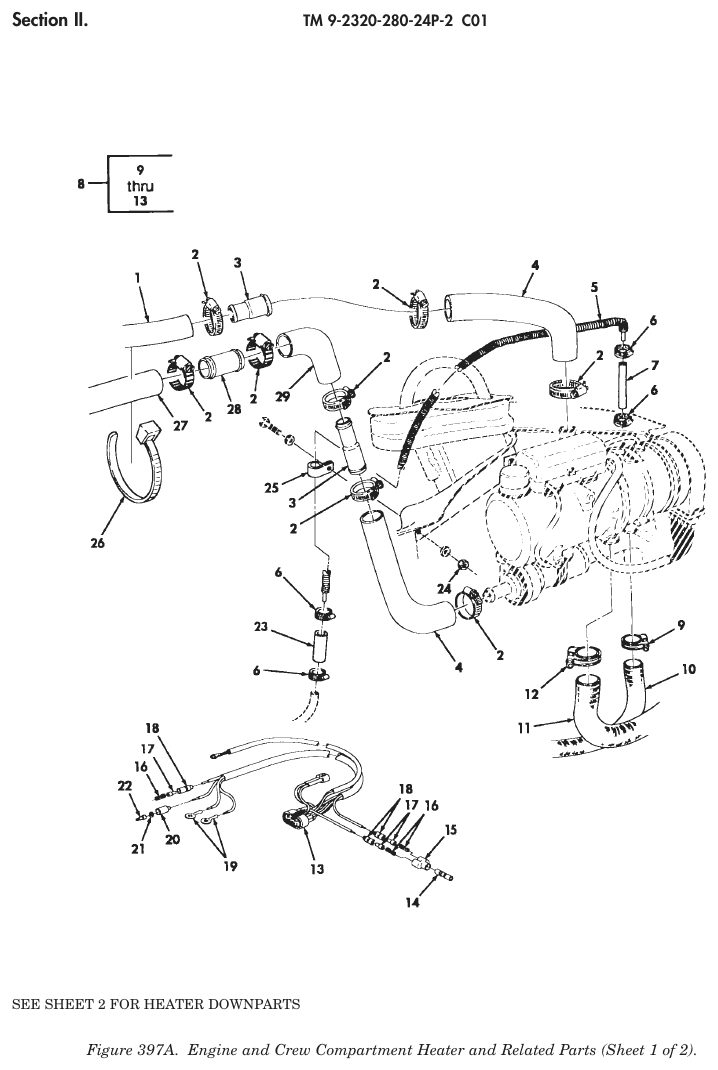

TM 9-2320-280-24P figure 397A, Engine and Crew Compartment Heater and Related Parts, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose P/N 12339155-3-25 HOSE,NONMETALLIC MAKE FROM HOSE P/N MS521304A203R 25.0 INCHES LONG PART OF KIT P/N 57K3497 Fits: All models	1	Ask us
2	Hose Clamp NSN 4730-00-908-3194 · P/N MS35842-11 CLAMP,HOSE PART OF KIT P/N 57K3497 Fits: All models	8	536 in stock
3	Tube Reducer NSN 4730-01-475-1191 · P/N 12469041 REDUCER,TUBE PART OF KIT P/N 57K3497 Fits: All models	2	We can source it $35–$70 eachtypical
4	Preformed Hose NSN 4720-01-474-9105 · P/N 12339251-1 HOSE,PREFORMED PART OF KIT P/N 57K3497 Fits: All models	2	We can source it $25–$60 eachtypical
5	Metal Tube Assembly NSN 4710-01-475-1227 · P/N 12469054 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3497 Fits: All models	1	We can source it $45–$90 eachtypical
6	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE PART OF KIT P/N 57K3497 Fits: All models	4	9 in stock
7	Hose P/N 9436711-2.5 HOSE,NONMETALLIC MAKE FROM HOSE P/N 9438381 2.50 INCHES LONG PART OF KIT P/N 57K3497 Fits: All models	1	Ask us
8	Heater Assembly P/N 12469058 HEATER ASSEMBLY PART OF KIT P/N 57K3497 Fits: All models	1	Ask us
9	Loop Clamp NSN 5340-01-285-5558 · P/N 100.424 CLAMP,LOOP Fits: All models	1	We can source it $25–$45 eachtypical
10	Nonmetallic Hose NSN 4720-01-475-2616 · P/N 29842A PIPE,INTAKE Fits: All models	1	We can source it $55–$105 eachtypical
11	Exhaust Pipe NSN 2540-01-476-6062 · P/N 442437 PIPE,EXHAUST Fits: All models	1	We can source it $55–$105 eachtypical
12	Loop Clamp NSN 5340-01-475-3164 · P/N 367400 CLAMP,LOOP Fits: All models	1	We can source it $25–$55 eachtypical
13	Special Purpose E Cable Assembly NSN 6150-01-475-1843 · P/N 905.782 CABLE ASSEMBLY,SPEC Fits: All models	1	We can source it $186.94 per eachgov't list price
14	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR PART OF KIT P/N 57K3497 Fits: All models	1	20 in stock
15	Connector Adapter NSN 5935-00-900-6281 · P/N MS27147-1 ADAPTER,CONNECTOR PART OF KIT P/N 57K3497 Fits: All models	1	65 in stock
16	Quick Disconnect Terminal Set NSN 5940-00-399-6676 · P/N 8338564 TERMINAL,QUICK SE PART OF KIT P/N 57K3497 Fits: All models	3	861 in stock
17	Bushing Insulator NSN 5970-00-833-8562 · P/N 8338562 INSULATOR,BUSHING PART OF KIT P/N 57K3497 Fits: All models	3	469 in stock
18	Electrical Cable Nipple NSN 5975-00-660-5962 · P/N 8724494 CABLE,NIPPLE PART OF KIT P/N 57K3497 Fits: All models	3	132 in stock
19	Lug Terminal NSN 5940-00-283-5280 · P/N MS25036-106 TERMINAL,LUG PART OF KIT P/N 57K3497 Fits: All models	2	20 in stock $9.69our price Buy online ↗
20	Electrical Connector Shell NSN 5935-00-691-5591 · P/N 13207E6498-2 SHELL,ELECTRICAL PART OF KIT P/N 57K3497 Fits: All models	1	We can source it
21	Slotted Washer NSN 5310-00-656-0067 · P/N 8724497 WASHER,SLOTTED PART OF KIT P/N 57K3497 Fits: All models	1	82 in stock
22	Amplifier-Detector NSN 5895-00-426-3144 · P/N MS27148-3 TERMINAL,LUG PART OF KIT P/N 57K3497 Fits: All models	1	We can source it quote only $8,437.39 per eachgov't list price
23	Hose P/N 9436711-2.0 HOSE,NONMETALLIC MAKE FROM HOSE P/N 9438381 2.00 INCHES LONG PART OF KIT P/N 57K3497 Fits: All models	1	Ask us
24	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING PART OF KIT P/N 57K3497 Fits: All models	1	626 in stock
25	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP PART OF KIT P/N 57K3497 Fits: All models	1	We can source it
26	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN ELEC PART OF KIT P/N 57K3497 397A-1 Fits: All models	5	198 in stock
27	Hose P/N 12339155-3-15 HOSE,NONMETALLIC MAKE FROM HOSE P/N MS521304B203R 15.0 INCHES LONG PART OF KIT P/N 57K3497 Fits: All models	1	Ask us
28	Hose Mender NSN 4730-01-394-8129 · P/N MS24520-7 MENDER,HOSE PART OF KIT P/N 57K3497 Fits: All models	1	We can source it $108.58 per eachgov't list price
29	Preformed Hose NSN 4720-01-189-2218 · P/N 12339251 HOSE,PREFORMED PART OF KIT P/N 57K3497 Fits: All models	1	2,150 in stock
30	Vehicular Compartment Heater NSN 2540-01-501-2690 · P/N 67582B HEATER,VEHICULAR,CO Fits: All models	1	We can source it $3,207.79 per eachgov't list price
31	Electrical Equipment Harness NSN 5999-01-475-0215 · P/N 67134A HARNESS,ELECTRICAL Fits: All models	1	We can source it $200.84 per eachgov't list price
32	Electrical Vehicular Control Box NSN 2540-01-475-3944 · P/N 89093B CONTROL BOX,ELECTRI Fits: All models	1	We can source it $1,017.70 per eachgov't list price
33	Cooling System Engine Pump NSN 2930-01-475-3976 · P/N 65759B PUMP,COOLING SYSTEM Fits: All models	1	We can source it $392.10 per eachgov't list price
34	Retaining Strap NSN 5340-01-475-3171 · P/N 38634A STRAP,RETAINING Fits: All models	1	We can source it $30–$70 eachtypical
35	Tapping Screw NSN 5305-01-475-3402 · P/N 35283A SCREW,TAPPING Fits: All models	2	We can source it
36	Fuel Pump Shield P/N 82436A SHIELD,FUEL PUMP Fits: All models	1	Ask us
37	Machine Screw P/N 147818 SCREW,MACHINE Fits: All models	6	Ask us
38	O-Ring P/N 22405A O-RING Fits: All models	1	Ask us
39	Electrical Equipment Harness NSN 5999-01-476-3674 · P/N 67133A HARNESS,ELECTRICAL E Fits: All models	1	We can source it $106.08 per eachgov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
