HMMWV End Closures, Door Assembly, and Mounting Hardware TM 9-2320-280-24P · Fig. 397

Every part in figure 397 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 22 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

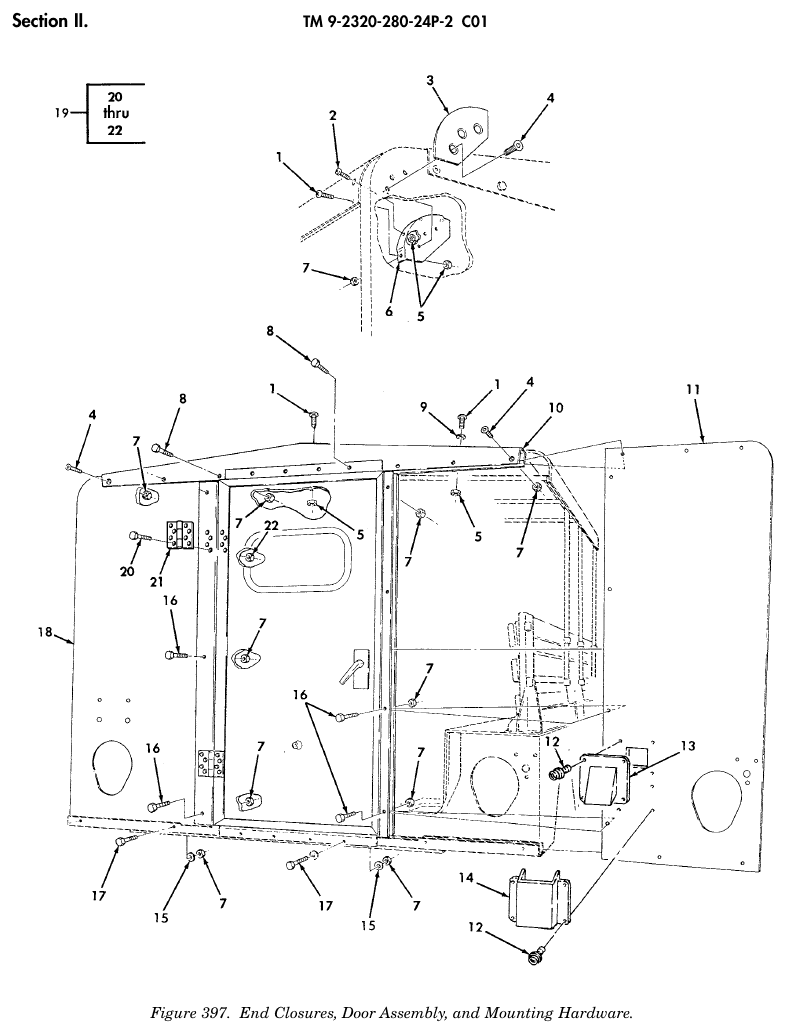

TM 9-2320-280-24P figure 397, End Closures, Door Assembly, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-993-2460 · P/N MS35207-282 SCREW,MACHINE 1/4-28 X .875,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	14	We can source it
2	Machine Screw NSN 5305-00-993-2738 · P/N MS35207-280 SCREW,MACHINE 1/4-28 X .75,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	304 in stock
3	Mounting Plate NSN 5340-01-318-2180 · P/N 12342324 PLATE,MOUNTING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $55–$100 eachtypical
4	Machine Screw NSN 5305-01-315-9683 · P/N MS35191-348 SCREW,MACHINE 1/2-20 X 2.00 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	We can source it $167.47 per eachgov't list price
5	Self-Locking Hexagon Nut NSN 5310-00-483-8791 · P/N MS17829-4F NUT,SELF-LOCKING,HE 1/4-28 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	88 in stock
6	Mounting Bracket NSN 5340-01-318-4893 · P/N 12342322 BRACKET,MOUNTING PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $104.05 per eachgov't list price
7	Self-Locking Castellated Hex Nut NSN 5310-00-774-9073 · P/N 190171 NUT,SELF-LOCKING,CA 1/2-20 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	28	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-719-5239 · P/N MS90727-116 SCREW,CAP,HEXAGON H 1/2-20 X 2.25, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	40 in stock
9	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	2,325 in stock
10	Structural Vehicul Frame Section NSN 2510-01-319-5952 · P/N 12342317 FRAME,SECTION,STRUC PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it quote only $3,442.53 per eachgov't list price
11	Closure End R.h. P/N 12342223-2 CLOSURE END R.H. PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
12	Wood Screw NSN 5305-01-315-9882 · P/N MS35495-126 SCREW,WOOD #14 X 1.00 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	We can source it $112.94 per eachgov't list price
13	Air Circulating Ventilator NSN 2540-01-476-7827 · P/N 12446983 VENTILATOR PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $1,435.62 per eachgov't list price
14	Diverter Assembly NSN 2540-01-477-0242 · P/N 12446981 DIVERTER,LIGHT PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $12,749.10 per eachgov't list price
15	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	12	428 in stock $27.99our price Buy online ↗
16	Cap Hexagon Head Screw NSN 5305-00-719-5238 · P/N B1821BH050F200N SCREW,CAP,HEXAGON H 1/2-20 X 2.00 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	393 in stock
17	Cap Hexagon Head Screw NSN 5305-00-719-5241 · P/N B1821BH050F275N SCREW,CAP,HEXAGON H 1/2-20 X 2.75, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	8	1 in stock
18	Closure End L.h. P/N 12342223-1 CLOSURE END L.H. PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
19	Vehicular Door NSN 2510-01-314-4892 · P/N 12342330 DOOR,VEHICULAR PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock $6,253.03 per eachgov't list price
20	Cap Hexagon Head Screw NSN 5305-00-719-5241 · P/N B1821BH050F275N SCREW,CAP HEXAGON H Fits: M998, M998A1, M1038, M1038A1	16	1 in stock
21	Door Vehicular Hinge NSN 2510-01-498-8000 · P/N 12342327 HINGE,DOOR,VEHICLA Fits: M998, M998A1, M1038, M1038A1	2	We can source it $3,928.14 per eachgov't list price
22	Self-Locking Castellated Hex Nut NSN 5310-00-774-9073 · P/N 190171 NUT,SELF-LOCKING,HE ADAPTER,CONNECTOR ( 1) 386-9 ADAPTER,CONNECTOR ( 1) 386-11 ADAPTER,STRAIGHT,PI( 2) 384-3 ADAPTER,STRAIGHT,PI( 1) 384-15 ADAPTER,STRAIGHT,PI( 1) 385-5 ADAPTER,STRAIGHT,PI( 2) 388-2 ADAPTER,VEHICLE STO( 1) 393-14 BASE PLATE,SPACE HE( 1) 387-9 BLOCK,PLYWOOD ( 2) 389-8 BOLT,MACHINE ( 4) 388-1 Fits: M998, M998A1, M1038, M1038A1	16	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
