HMMWV Deep Water Fording Kit, Intake and Exhaust Systems TM 9-2320-280-24P · Fig. 398

Every part in figure 398 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3305 Deep Water Fording Kits: 32 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

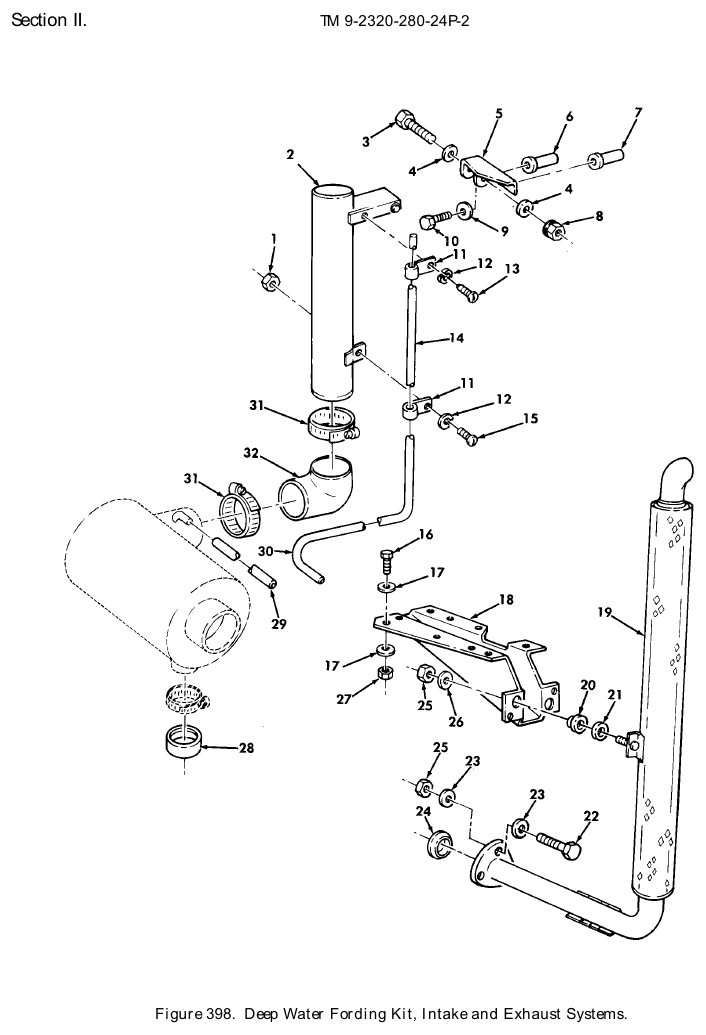

TM 9-2320-280-24P figure 398, Deep Water Fording Kit, Intake and Exhaust Systems: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-01-249-0899 · P/N MS51470-03 NUT,PLAIN,HEXAGON #10-32 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	63 in stock
2	Stack Assembly NSN 2510-01-198-0333 · P/N 12339843 STACK ASSEMBLY PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	69 in stock quote only $226.20 per assemblygov't list price
3	Cap Hexagon Head Screw NSN 5305-00-069-5578 · P/N MS90725-94 SCREW,CAP,HEXAGON H 7/16-14 X 2.75 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	27 in stock
4	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	170 in stock
5	Mounting Bracket NSN 5340-01-238-9543 · P/N 12339832 BRACKET,MOUNTING PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	66 in stock $58.79our price Buy online ↗
6	Plain Blind Rivet Nut NSN 5310-01-231-7455 · P/N 12339397-3 NUT,PLAIN,BLIND RIV 1/4-20 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	60 in stock
7	Plain Blind Rivet Nut NSN 5310-01-388-6205 · P/N 12339397-6 NUT,PLAIN,BLIND RIV 1/4-20 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	64 in stock
8	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE 7/16-14 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	251 in stock
9	Flat Washer NSN 5310-00-877-5975 · P/N 10918603 WASHER,FLAT 1/4 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	We can source it
10	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	298 in stock
11	Loop Clamp NSN 5340-00-079-7837 · P/N MS21333-67 CLAMP,LOOP PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	We can source it
12	Lock Washer NSN 5310-00-721-7809 · P/N MS35340-43 WASHER,LOCK #10 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	230 in stock
13	Tapping Screw NSN 5305-01-254-2461 · P/N 5592899 SCREW,TAPPING,THREA #10-32 X 1/2 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it
14	Bent Metallic Tube NSN 4710-01-209-6746 · P/N 12339833 TUBE,BENT,METALLIC PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	567 in stock $25–$45 eachtypical
15	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	8	471 in stock
17	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	16	351 in stock
18	Pipe Hanger NSN 5340-01-185-7959 · P/N 12339848 BRACKET,PIPE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	233 in stock $176.39our price Buy online ↗
19	Exhaust Pipe NSN 2990-01-210-2176 · P/N 12339849 PIPE,EXHAUST PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	63 in stock
20	Bushing NSN 5365-01-213-5739 · P/N 5584575-B BUSHING,NONMETALLIC PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	We can source it
21	Flat Washer NSN 5310-01-298-7770 · P/N 5596167 WASHER,FLAT 3/8 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	We can source it
22	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	3	365 in stock
23	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	6	We can source it
24	Gasket NSN 5330-01-200-0466 · P/N 12338339 GASKET PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	73 in stock $25–$40 eachtypical
25	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	5	219 in stock
26	Flat Washer NSN 5310-01-258-1536 · P/N 5593221 WASHER,FLAT 3/8 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	40 in stock
27	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	8	626 in stock
28	Protective Dust and Moisture Cap NSN 5340-01-197-2382 · P/N 12339996 CAP,PROTECTIVE,DUST PART OF KIT P/N 5705693 Fits: All A0 models; all A1 models except M997A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	22 in stock
29	Tube Make From Tube P/N 5591707 TUBE MAKE FROM TUBE,P/N CPR104420- 1,70 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
30	Nonmetallic Make From Tube Tube P/N 5591210 TUBE,NONMETALLIC MAKE FROM TUBE,P/N CPR104420-2,11 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
31	Hose Clamp NSN 4730-00-359-9487 · P/N C72P CLAMP,HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	We can source it
32	Preformed Hose NSN 4730-01-194-5338 · P/N 5578943 HOSE,PREFORMED PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it quote only

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
