HMMWV Deep Water Fording Kit, Selector Valve, Sensor Cup, and Vent Lines TM 9-2320-280-24P · Fig. 399

Every part in figure 399 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3305 Deep Water Fording Kits: 21 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

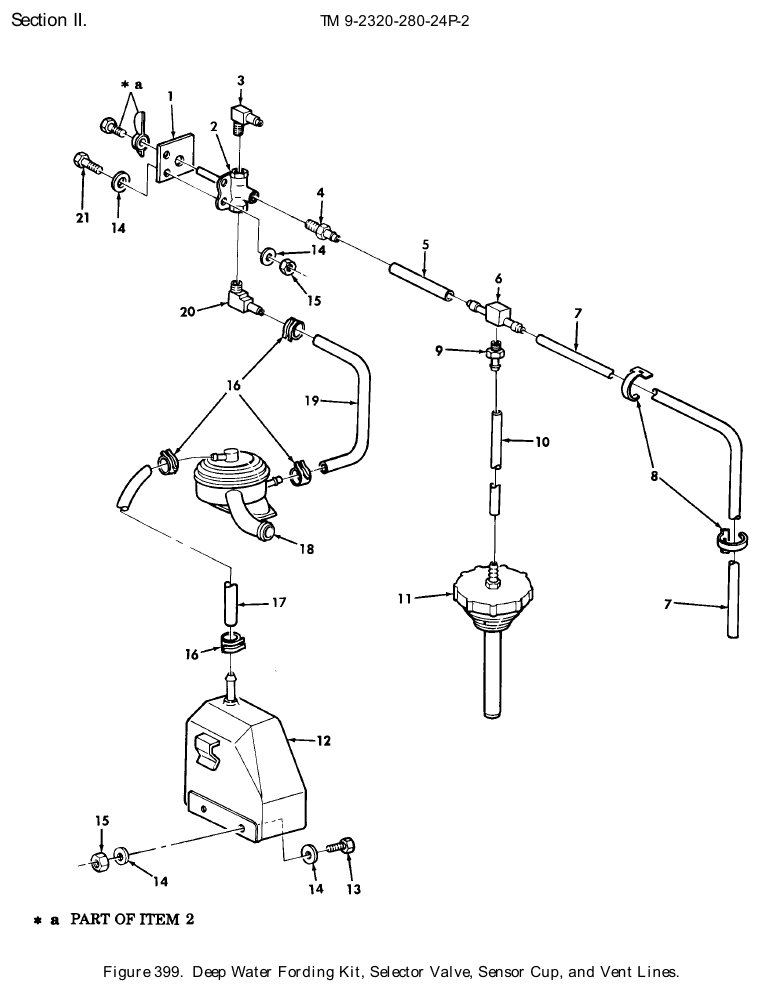

TM 9-2320-280-24P figure 399, Deep Water Fording Kit, Selector Valve, Sensor Cup, and Vent Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Identification Plate NSN 9905-01-205-8635 · P/N 12339109 PLATE,IDENTIFICATIO PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	38 in stock
2	Cross Valve NSN 4820-01-192-8030 · P/N 220C-J VALVE,CROSS PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	27 in stock $40–$75 eachtypical
3	Pipe to Hose Elbow NSN 4730-01-070-7680 · P/N 1069X4 ELBOW,PIPE TO HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	60 in stock
4	Straight Pipe to Hose Adapter NSN 4730-01-185-5348 · P/N 1068X4 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	25 in stock
5	Nonmetallic Make From Tube Tube P/N 5584373 TUBE,NONMETALLIC MAKE FROM TUBE,P/N CPR104420-1, 26 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
6	Hose Tee NSN 4730-01-003-5105 · P/N 1064X4 TEE,HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	5 in stock
7	Tube Make From Tube P/N 5591253 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 41 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
8	Line Supporting Strap NSN 5340-01-149-4434 · P/N 3816659 STRAP,LINE SUPPORTI PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	3	5 in stock
9	Straight Pipe to Hose Adapter NSN 4730-00-595-1078 · P/N AM-4X2-B ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it
10	Tube Make From Tube P/N 5582644 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 20 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
11	Filler Opening Cap NSN 2590-01-192-4425 · P/N 12339997 CAP,FILLER OPENING PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	100 in stock $80–$135 eachtypical
12	Sensor Deep Water Fording Cup NSN 2540-01-192-4502 · P/N 12339845 CUP,SENSOR,DEEP WAT PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	407 in stock $32.50our price Buy online ↗
13	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	471 in stock
14	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	8	351 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	4	626 in stock
16	Hose Clamp NSN 4730-00-138-9201 · P/N WW-C-4408 CLAMP,HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	4	146 in stock
17	Nonmetallic Make From Hose Hose P/N 12339981-2 HOSE,NONMETALLIC MAKE FROM HOSE,P/N RB1450-1-4IDX1-20D, 25 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
18	Vent Valve NSN 4820-01-192-7678 · P/N 25043364 VALVE,VENT PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	7 in stock $75–$125 eachtypical
19	Hose Make From Hose P/N 5583855 HOSE MAKE FROM HOSE, P/N RB1450-1- 4IDX1-20D, 42 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
20	Pipe to Hose Elbow NSN 4730-01-200-4277 · P/N 1582 ELBOW,PIPE TO HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	6 in stock $16.17our price Buy online ↗
21	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2	2	248 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
