HMMWV Engine Oil Pan, Pump, and Filler Tube TM 9-2320-280-24P · Fig. 4

Every part in figure 4 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0106 Engine Lubrication System: 36 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

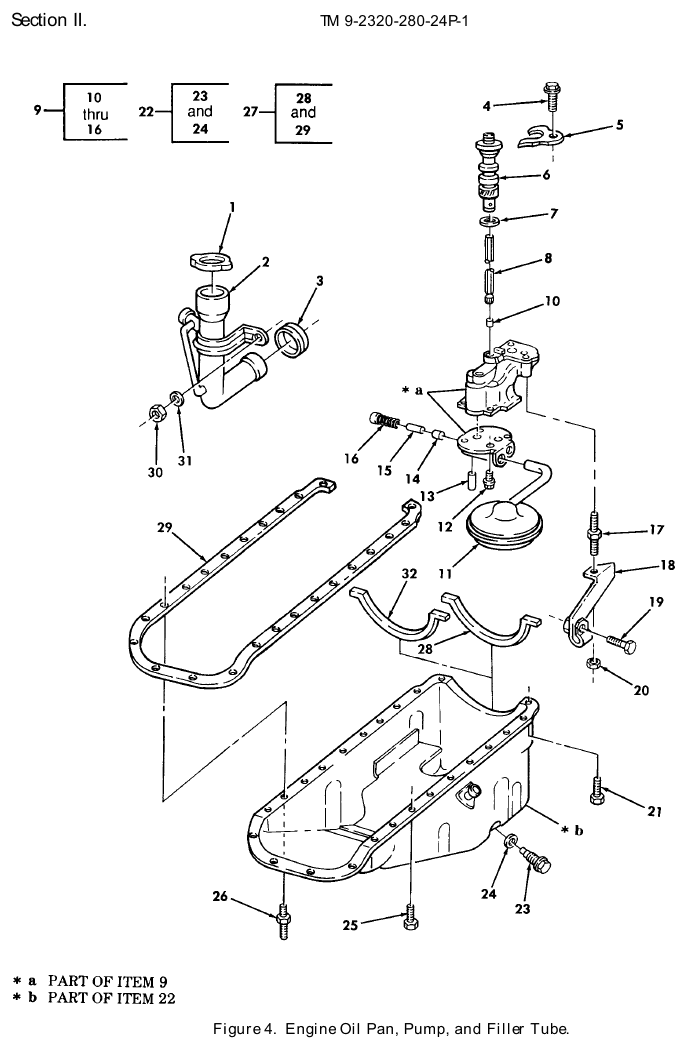

TM 9-2320-280-24P figure 4, Engine Oil Pan, Pump, and Filler Tube: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filler Opening Cap NSN 2590-01-196-5228 · P/N AX2022-02 CAP,FILLER OPENING Fits: All models	1	39 in stock
2	Vehicular Components Filler Neck NSN 2990-01-147-4285 · P/N 14071059 FILLER NECK Fits: All models	1	21 in stock $100.55 per eachgov't list price
3	Nonmetallic Grommet NSN 5325-01-151-6117 · P/N 14028942 GROMMET,NONMETALLIC Fits: All models	1	15 in stock
4	Machine Bolt NSN 5306-01-149-6280 · P/N 1635490 BOLT,SELF-LOCKING 10-1.5 X 25MM Fits: All models	1	18 in stock
5	Clamp NSN 5342-01-160-4397 · P/N 14022650 CLAMP Fits: All models	1	We can source it
6	Drive Shaft Assembl NSN 2815-01-449-5585 · P/N 7849306 DRIVE SHAFT ASSEMBL Fits: All models	1	Sold out — we can source it
7	Gasket NSN 5330-01-156-5147 · P/N 14022649 GASKET Fits: All models	1	7 in stock
8	Straight Shaft NSN 3040-01-163-7208 · P/N 14022699 SHAFT,STRAIGHT Fits: All models	1	82 in stock
9	Oil Pump and Screen NSN 2815-01-168-7871 · P/N 23502073 PUMP AND SCREEN,OIL ALL 6.2 AND 6.5 LITER DETUNED AND 1996 NORMALLY ASPIRATED Fits: All models	1	8 in stock $114.17 per eachgov't list price
9	Oil Pump Assembly P/N 12567769 OIL PUMP ASSEMBLY,E 6.5 LITER NORMALLY ASPIRATED 1997 AND ABOVE Fits: All A2 models, plus M1123	1	Ask us
10	Packing Retainer NSN 5330-01-154-7159 · P/N 477249 RETAINER,PACKING Fits: All models	1	1 in stock
11	Sediment Strainer Element NSN 4730-01-189-8851 · P/N 23500008 STRAINER ELEMENT,SE 6.2 LITER AND 6.5 DETUNED,USE WITH P/N 23502073 Fits: All A0 and A1 models, plus M1121	1	33 in stock $25–$45 eachtypical
11	Strainer Element NSN 7644-01-493-9338 · P/N 12559800 STRAINER ELEMENT,SE USE WITH P/N 12567769 Fits: All A2 models, plus M1123	1	We can source it quote only
12	Machine Bolt NSN 5306-01-165-5582 · P/N 11508600 BOLT,MACHINE 6-1.0 X 20 MM USE WITH P/N 23502073 Fits: All models	4	We can source it
13	Grooved Headless Pin NSN 5315-00-828-5487 · P/N 3-32X3-4LG PIN,GROOVED,HEADLES USE WITH P/N 23502073 Fits: All models	1	We can source it
14	Solid Plain Disk NSN 5340-01-194-5294 · P/N 3704871 DISK,SOLID,PLAIN USE WITH P/N 23502073 Fits: All models	1	We can source it $25–$50 eachtypical
15	Relief Pressu Valve NSN 2805-00-336-1716 · P/N 3702366 VALVE,RELIEF,PRESSU USE WITH P/N 23502073 Fits: All models	1	18 in stock $25–$60 eachtypical
16	Helical Compression Spring NSN 5360-01-165-1563 · P/N 360582 SPRING,HELICAL,COMP USE WITH P/N 23502073 Fits: All models	1	We can source it
17	Shouldered and Stepped Stud NSN 5307-01-187-0519 · P/N 23500006 STUD,SHOULDERED AND Fits: All models	1	We can source it
18	Loop Clamp NSN 5340-01-384-9987 · P/N 5741613 CLAMP,LOOP USE WITH P/N 23502073 Fits: All models	1	1 in stock $25–$60 eachtypical
18	Mounting Bracket NSN 5340-01-493-2569 · P/N 12559801 BRACKET USE WITH P/N 12567769 Fits: All A2 models, plus M1123	1	25 in stock
19	Machine Bolt NSN 5306-01-253-7073 · P/N 11508353 BOLT,MACHINE Fits: All models	1	We can source it $25–$40 eachtypical
20	Nut NSN 5310-01-250-7679 · P/N 23521131 NUT 11-1.5 MM Fits: All models	1	8 in stock
21	Machine Bolt NSN 5305-01-230-3354 · P/N 11508534 BOLT,MACHINE 8-1.25 X 16 MM Fits: All models	2	8 in stock
22	Oil Pan NSN 2815-01-168-7912 · P/N 5588022 OIL PAN 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	24 in stock $220.42 per eachgov't list price
22	Oil Pan NSN 2815-01-430-2599 · P/N 12551755 OIL PAN 6.5 LITER AND 6.5 DETUNED Fits: All A2 models, plus M1123	1	27 in stock $225.00our price Buy online ↗
23	Plug NSN 5365-01-188-0782 · P/N 23011420 PLUG,MACHINE THREAD Fits: All models	1	7 in stock
24	Gasket NSN 5330-00-855-6045 · P/N MS35769-9 GASKET Fits: All models	1	1,082 in stock
25	Cap Hexagon Head Screw NSN 5305-01-150-9781 · P/N 8639743 SCREW,CAP,HEXAGON H 6-1.0 X 16MM Fits: All models	20	88 in stock
26	Special Stud NSN 5307-01-196-4717 · P/N 5591286 STUD,SPECIAL 6-1.0 X 37.4MM Fits: All models	2	8 in stock
27	Gasket Set NSN 5330-01-310-6780 · P/N OS34400 GASKET SET 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	9 in stock $28.42our price Buy online ↗
28	Nonmetallic Special Shaped Seal NSN 5330-01-150-7744 · P/N 14022683 SEAL,NONMETALLIC SP 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	34 in stock $25–$55 eachtypical
29	Gasket NSN 5330-01-425-5069 · P/N 91598 GASKET 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	1 in stock
30	Plain Hexagon Nut NSN 5310-01-165-3331 · P/N 22521550 NUT,PLAIN,HEXAGON 8-1.25 MM Fits: All models	2	10 in stock
31	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 Fits: All models	2	52 in stock
32	Seal Retainer NSN 5330-01-378-8572 · P/N 23502587 RETAINER,OIL SEAL 6.5 AND 6.5 DETUNED Fits: All models	1	5 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
