Catalog › Parts manuals › TM 9-2320-280-24P › Engine Lubrication System › Fig. 5

HMMWV Engine and Transmission Oil Cooler and Engine Oil Cooler Lines TM 9-2320-280-24P · Fig. 5

Every part in figure 5 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0106 Engine Lubrication System: 16 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

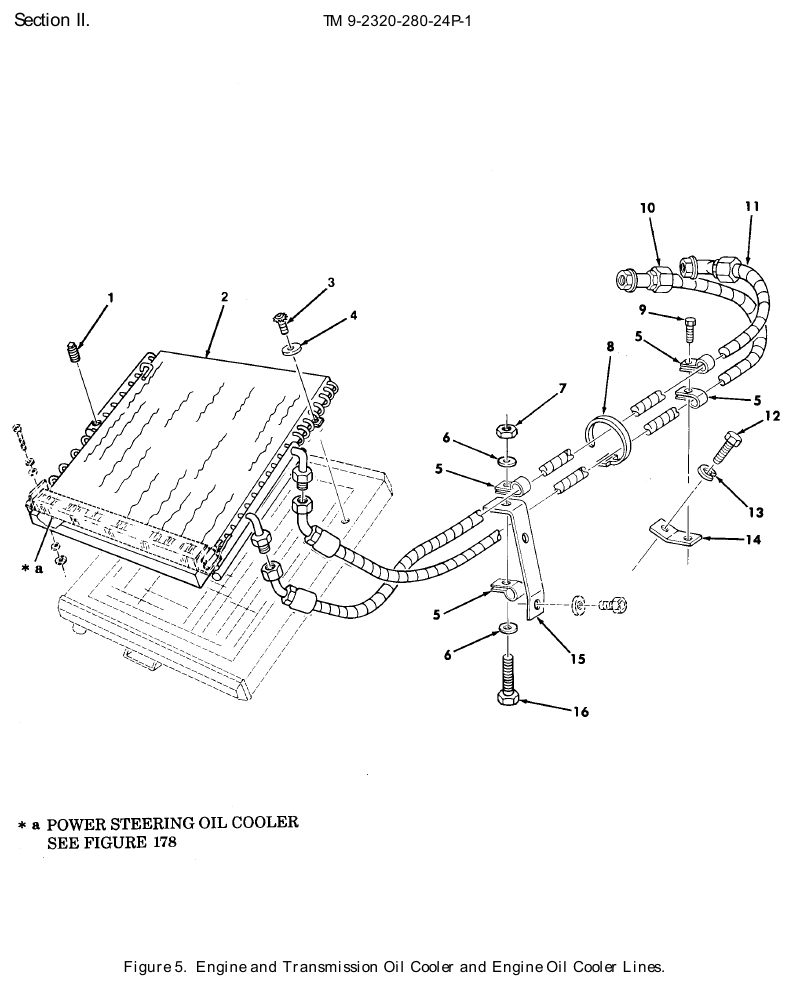

TM 9-2320-280-24P figure 5, Engine and Transmission Oil Cooler and Engine Oil Cooler Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pipe Plug NSN 4730-00-954-1281 · P/N WW-P-471ACABCB PLUG,PIPE Fits: All models	1	98 in stock
2	Lubricating Oil Engine Cooler NSN 2930-01-168-7911 · P/N 19111 COOLER,LUBRICATING Fits: All models	1	54 in stock $995.00our price Buy online ↗
3	Cap Socket Head Screw NSN 5305-00-225-7211 · P/N MS16995-63 SCREW,CAP,SOCKET HE 5/16-18 X 5/16 Fits: All models	4	61 in stock
4	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All models	4	1,368 in stock
5	Loop Clamp NSN 5340-01-229-3632 · P/N COV-1609 CLAMP,LOOP Fits: All models	4	38 in stock
6	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: All models	2	50 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock
8	Tie Down Electrical Compon Strap NSN 5975-00-451-5001 · P/N MS3367-3-9 STRAP,TIEDOWN,ELECT Fits: All models	1	We can source it
9	Tapping Screw NSN 5305-01-087-4478 · P/N MS51851-95 SCREW,TAPPING 1/4-20 X 5/8 Fits: All models	1	We can source it
10	Nonmetallic Hose Assembly NSN 4720-01-187-6911 · P/N 12339411-2 HOSE ASSEMBLY,NONME 55 INCHES Fits: All models	1	9 in stock $95.00our price Buy online ↗
11	Nonmetallic Hose Assembly NSN 4720-01-257-3705 · P/N FB9665-02 HOSE ASSEMBLY,NONME 52 INCHES Fits: All models	1	184 in stock $100–$165 per assemblytypical
12	Cap Socket Head Screw NSN 5305-00-051-8605 · P/N MS16995-77 SCREW,CAP,SOCKET HE 3/8-16 X 3/4 Fits: All models	1	We can source it
13	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All models	1	1,162 in stock
14	Angle Bracket NSN 5340-01-212-4714 · P/N 12338777 BRACKET,ANGLE Fits: All models	1	119 in stock
15	Oil Cooler Hose Support Bracket NSN 5340-01-210-2747 · P/N 12338779 BRACKET,OIL COOLER, Fits: All models	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-225-3842 · P/N B1821BH025C113N SCREW,CAP,HEXAGON H 1/4-20 X 1.125 Fits: All models	1	440 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
