HMMWV Troop Seat Assembly, Left and Right TM 9-2320-280-24P · Fig. 403

Every part in figure 403 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 27 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

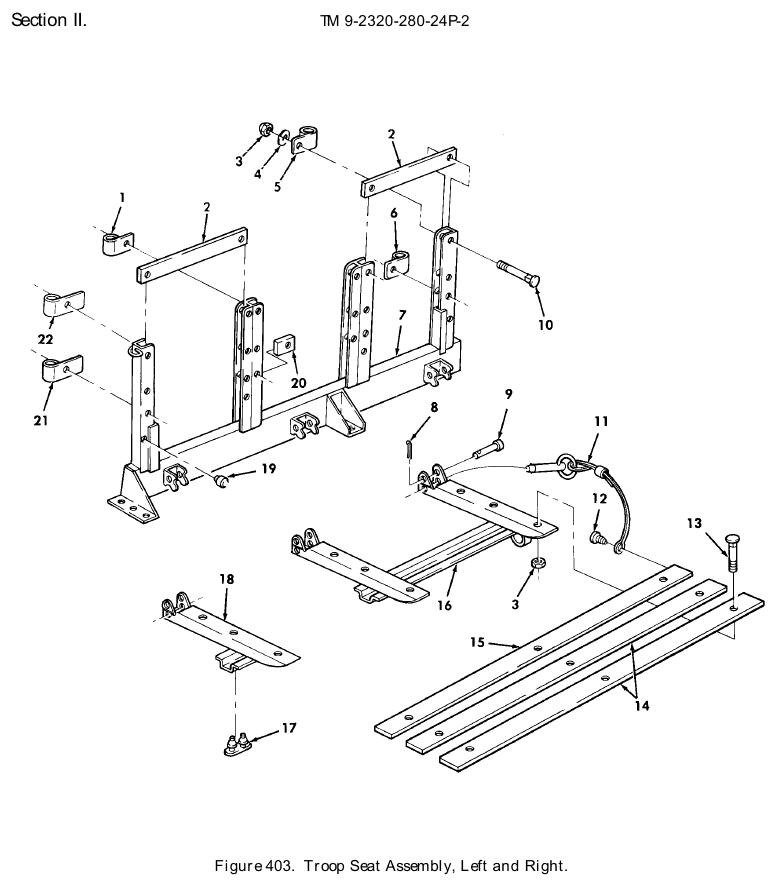

TM 9-2320-280-24P figure 403, Troop Seat Assembly, Left and Right: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Bow Vehicular Retainer Assembly NSN 2540-01-192-9712 · P/N 5578466 RETAINER ASSEMBLY,B USE ON L.H SIDE RACK ASSY Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	127 in stock $25–$50 per assemblytypical
1	Bow Vehicular Retainer Assembly NSN 2540-01-192-9713 · P/N 12340545-2 RETAINER ASSEMBLY,B USE ON R.H SIDE RACK ASSY Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	421 in stock $14.26our price Buy online ↗
2	Seat Board NSN 2540-01-185-7951 · P/N 12340544 BOARD SEAT Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	12	59 in stock $25–$60 eachtypical
3	Plain Assembled Washer Nut NSN 5310-00-933-4310 · P/N 271184 NUT,PLAIN ASSEMBLED 5/16-18 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	50	1 in stock
4	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	32	471 in stock
5	Bow Vehicular Retainer NSN 2540-01-192-9711 · P/N 12340546-1 RETAINER,BOW,VEHICU Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	53 in stock
6	Bow Vehicular Retainer Assembly NSN 2540-01-192-9712 · P/N 5578466 RETAINER ASSEMBLY,B USE ON R.H SIDE RACK ASSY Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	127 in stock $25–$50 per assemblytypical
6	Bow Vehicular Retainer Assembly NSN 2540-01-192-9713 · P/N 12340545-2 RETAINER ASSEMBLY,B USE ON L.H SIDE RACK ASSY Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	421 in stock $14.26our price Buy online ↗
7	Channel Assembly R.h P/N 5591333 CHANNEL ASSEMBLY R.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
7	Channel Assembly L.h P/N 5591334 CHANNEL ASSEMBLY L.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
8	Cotter Pin NSN 5315-01-267-7570 · P/N MS24665-319 PIN,COTTER 3/32 X 1.00 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	We can source it
9	Straight Headed Pin NSN 5315-00-737-0134 · P/N 7370134 PIN,STRAIGHT,HEADED 3/8 X 2.00 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	547 in stock
10	Square Neck Bolt NSN 5306-00-012-0231 · P/N MS35751-44 BOLT,SQUARE NECK 5/16-18 X 1.75 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	32	98 in stock
11	Quick Release Pin NSN 5315-01-094-9025 · P/N 12255608 PIN,QUICK RELEASE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	36 in stock $25–$55 eachtypical
12	Tapping Screw NSN 5305-00-432-4170 · P/N MS51861-35 SCREW,TAPPING #8-18 X 1/2 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
13	Square Neck Bolt NSN 5306-00-753-6996 · P/N MS35751-43 BOLT,SQUARE NECK 5/16-18 X 1.50 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	137 in stock
14	Seat Board NSN 2540-01-185-8015 · P/N 12340553 BOARD SEAT Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	4 in stock $75–$125 eachtypical
15	Vehicular Seat NSN 2540-01-192-4501 · P/N 12340549 SEAT,VEHICULAR Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it $65–$115 eachtypical
16	Channel Assembly L.h P/N 12340562-1 CHANNEL ASSEMBLY L.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
16	Channel Assembly R.h P/N 12340562-2 CHANNEL ASSEMBLY R.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
17	Bumper NSN 5340-01-196-8028 · P/N 12339961-1 BUMPER,NONMETALLIC Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	999 in stock
18	Seat Vehicular Support NSN 2540-01-334-4333 · P/N 5588656 SUPPORT,SEAT,VEHICU REAR Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	2 in stock $55–$105 eachtypical
19	Bumper NSN 5340-01-196-2573 · P/N 5584977 BUMPER,NONMETALLIC Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it
20	Spacer NSN 5365-01-193-4479 · P/N 5584999 SPACER Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	62 in stock
21	Bow Vehicular Retainer Assembly NSN 2540-01-192-9715 · P/N 12340535-1 RETAINER ASSEMBLY,B L.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	94 in stock $25–$50 per assemblytypical
21	Bow Vehicular Retainer Assembly NSN 2540-01-192-9714 · P/N 12340535-2 RETAINER ASSEMBLY,B R.H Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	33 in stock $25–$55 per assemblytypical
22	Bow Vehicular Retainer NSN 2540-01-193-2711 · P/N 12340536-1 RETAINER,BOW,VEHICU Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	58 in stock $25–$55 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
