HMMWV Troop Seat Kit, Safety Strap, and Mounting Hardware TM 9-2320-280-24P · Fig. 402

Every part in figure 402 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 23 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

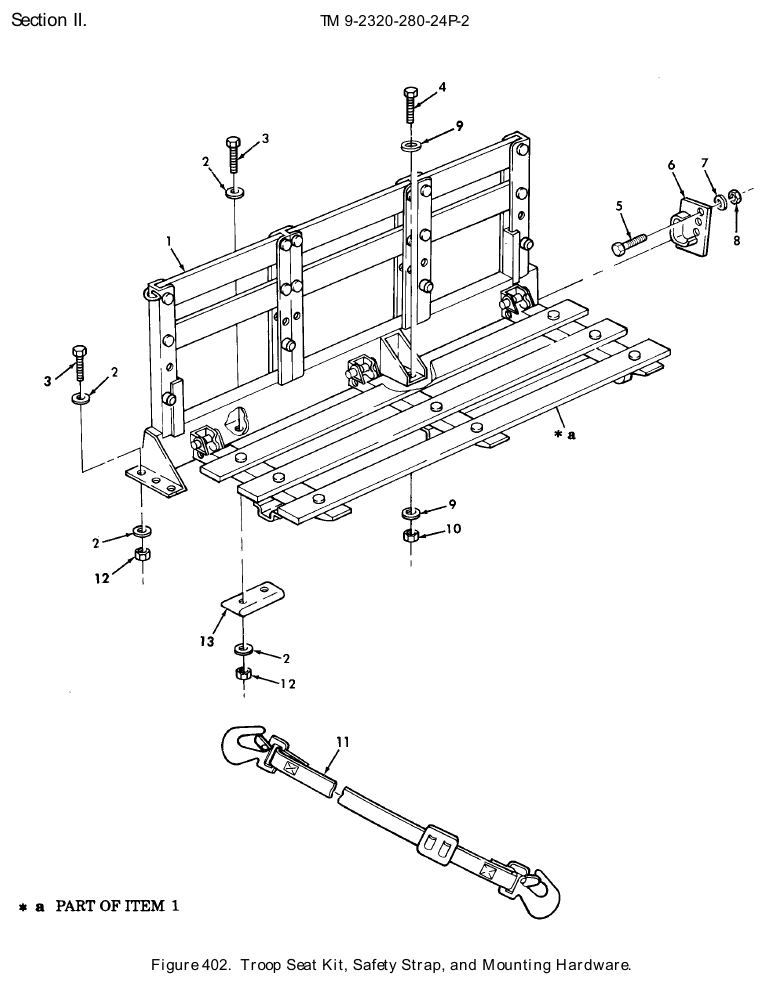

TM 9-2320-280-24P figure 402, Troop Seat Kit, Safety Strap, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Seat NSN 2540-01-185-8016 · P/N 12340560-1 SEAT,VEHICULAR L.H.,GREEN,PART OF KIT P/N 12338105 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	31 in stock $1,245.04 per eachgov't list price
1	Vehicular Seat NSN 2540-01-185-3214 · P/N 12340560-2 SEAT,VEHICULAR R.H.,GREEN,PART OF KIT P/N 12338105 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	10 in stock $1,144.08 per eachgov't list price
1	Vehicular Seat NSN 2540-01-396-7759 · P/N 12340560-3 SEAT,VEHICUALR L.H.,TAN,PART OF KIT P/N 57K0216 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	8 in stock $1,004.31 per eachgov't list price
1	Vehicular Seat NSN 2540-01-399-0785 · P/N 12340560-4 SEAT,VEHICULAR R.H.,TAN,PART OF KIT P/N 57K0216 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	6 in stock $1,371.67 per eachgov't list price
1	Vehicular Seat NSN 2540-01-396-7756 · P/N 12340560-5 SEAT,VEHICULAR L.H.,WHITE,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $859.35 per eachgov't list price
1	Vehicular Seat NSN 2540-01-396-7757 · P/N 12340560-6 SEAT,VEHICULAR R.H.,WHITE,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $707.90 per eachgov't list price
2	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	36	2,325 in stock
3	Cap Hexagon Head Screw NSN 5305-00-018-0024 · P/N MS35297-10 SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	We can source it
4	Cap Hexagon Head Screw NSN 5305-01-315-7066 · P/N 9425339 SCREW,CAP,HEXAGON H 7/16-20 X 3/4, PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it
5	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00,PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	276 in stock
6	Seat Vehicular Support NSN 2540-01-394-9682 · P/N 12340542-1 SUPPORT,SEAT,VEHICU L.H.,GREEN,PART OF KIT P/N 12338105 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	5 in stock $25.99our price Buy online ↗
6	Seat Vehicular Support NSN 2540-01-394-9683 · P/N 12340542-2 SUPPORT,SEAT,VEHICU R.H.,GREEN,PART OF KIT P/N 12338105 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	4 in stock $25–$45 eachtypical
6	Seat Vehicular Support NSN 2540-01-394-4788 · P/N 12340542-3 SUPPORT,SEAT,VEHICU L.H.,TAN,PART OF KIT P/N 57K0216 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $35–$75 eachtypical
6	Seat Vehicular Support NSN 2540-01-394-4787 · P/N 12340542-4 SUPPORT,SEAT,VEHICU R.H.,TAN,PART OF KIT P/N 57K0216 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $35–$75 eachtypical
6	Seat Vehicular Support NSN 2540-01-394-4792 · P/N 12340542-5 SUPPORT,SEAT,VEHICU L.H.,WHITE,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $25–$55 eachtypical
6	Seat Vehicular Support NSN 2540-01-394-9679 · P/N 12340542-6 SUPPORT,SEAT,VEHICU R.H.,WHITE,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $60–$100 eachtypical
7	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	1,368 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-18,PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	904 in stock
9	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216, PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	170 in stock
10	Self-Locking Hexagon Nut NSN 5310-01-315-3403 · P/N 9422300 NUT,PLAIN,HEXAGON 7/16-20,PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it
11	Webbing Strap NSN 5340-01-114-7712 · P/N 11682088-1 STRAP,WEBBING PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216, PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	8 in stock $40–$75 eachtypical
12	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 12338105,PART OF KIT P/N 57K0216,PART OF KIT P/N 57K0220 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	18	626 in stock
13	Mending Plate NSN 5340-01-255-9510 · P/N 12339009 PLATE,MENDING BOLT,MACHINE ( 6) 402-5 NUT,PLAIN,HEXAGON ( 4) 402-10 NUT,SELF-LOCKING,HE( 6) 402-8 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	5,308 in stock $7.69our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
