HMMWV Communications Kit, Radio Cables, AN/GRC-160, AN/VRC-46, and TSEC/KY-57 TM 9-2320-280-24P · Fig. 410

Every part in figure 410 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 37 lines, 28 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

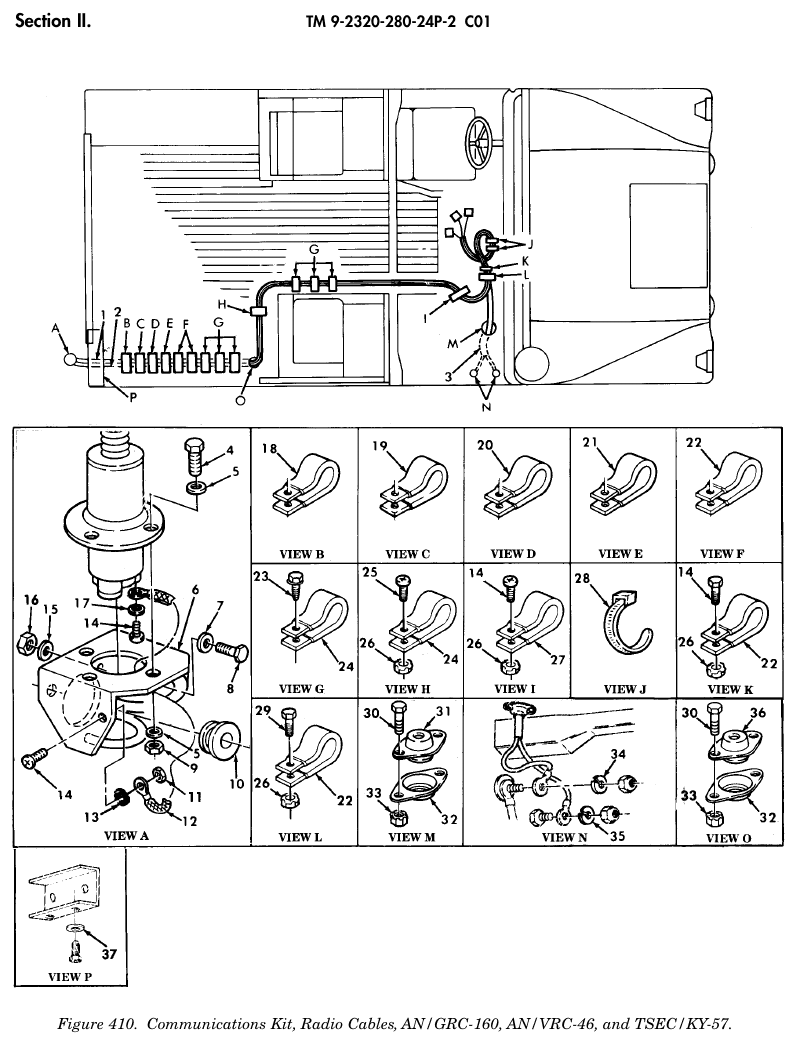

TM 9-2320-280-24P figure 410, Communications Kit, Radio Cables, AN/GRC-160, AN/VRC-46, and TSEC/KY-57: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Radio Frequency Cable Assembly NSN 5995-01-201-7495 · P/N 12338086-3 CABLE ASSEMBLY,RADI PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $75–$125 eachtypical
2	Special Purpose E Cable Assembly NSN 5995-01-201-4129 · P/N 12338089-3 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	9 in stock quote only $220.52 per eachgov't list price
3	Special Purpose E Cable Assembly NSN 5995-01-201-4128 · P/N 5577765-B CABLE ASSEMBLY,SPEC PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it quote only $181.42 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-00-269-3216 · P/N MS90725-66 SCREW,CAP,HEXAGON H 3/8-16 X 2.00, PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	25 in stock
5	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	8	6 in stock
6	Antenna Support NSN 5985-01-215-9404 · P/N A3046166 SUPPORT,ANTENNA PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
7	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	3	471 in stock
8	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 3/4,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	3	276 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	219 in stock
10	Nonmetallic Grommet NSN 5325-01-208-5424 · P/N 12338098 GROMMET,NONMETALLIC PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	15 in stock
11	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	10 in stock
12	Electrical Grounding Strip NSN 5999-01-272-0018 · P/N 5598121 STRIP,ELECTRICAL GR PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$50 eachtypical
13	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	709 in stock
14	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	169 in stock
15	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT 11/32,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	3	1 in stock
16	Self-Locking Nut NSN 5310-01-253-1615 · P/N 5592958 NUT,SELF-LOCKING,HE 5/16-18,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
17	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	709 in stock
18	Loop Clamp NSN 5340-00-833-8476 · P/N MS21333-122 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
19	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	35 in stock
20	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	12 in stock
21	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
22	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	787 in stock
23	Machine Screw NSN 5305-01-285-4234 · P/N 9414241 SCREW,MACHINE #10-32 X .75,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	6	We can source it
24	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	7	5 in stock
25	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	24 in stock
26	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	474 in stock
27	Loop Clamp NSN 5340-00-088-6655 · P/N MS21333-101 CLAMP,LOOP PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	169 in stock
28	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	2	198 in stock
29	Machine Screw NSN 5305-00-071-1322 · P/N MS51960-65 SCREW,MACHINE #10-32 X 1/2,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	100 in stock
30	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4, PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	471 in stock
31	Nonmetallic Grommet NSN 5325-01-205-5378 · P/N 12338084 GROMMET PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	3 in stock
32	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER ASSEMBLY PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	2	168 in stock
33	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING 1/4-20,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	4	570 in stock
34	Lock Washer NSN 5310-01-253-8440 · P/N 5596566 WASHER,LOCK 1/2,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
35	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2,PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	2	833 in stock
36	Grommet NSN 5325-01-205-3203 · P/N 12338085 GROMMET PART OF KIT P/N 5590244 Fits: M998, M998A1, M1038, M1038A1	1	75 in stock $25–$40 eachtypical
37	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N Fits: All models	1	4,285 in stock
