HMMWV Communications Kit, Radio Rack Assembly, and Mounting Hardware, AN/GRC-160 and TSEC/KY-57, TOW Carrier TM 9-2320-280-24P · Fig. 411

Every part in figure 411 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 21 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

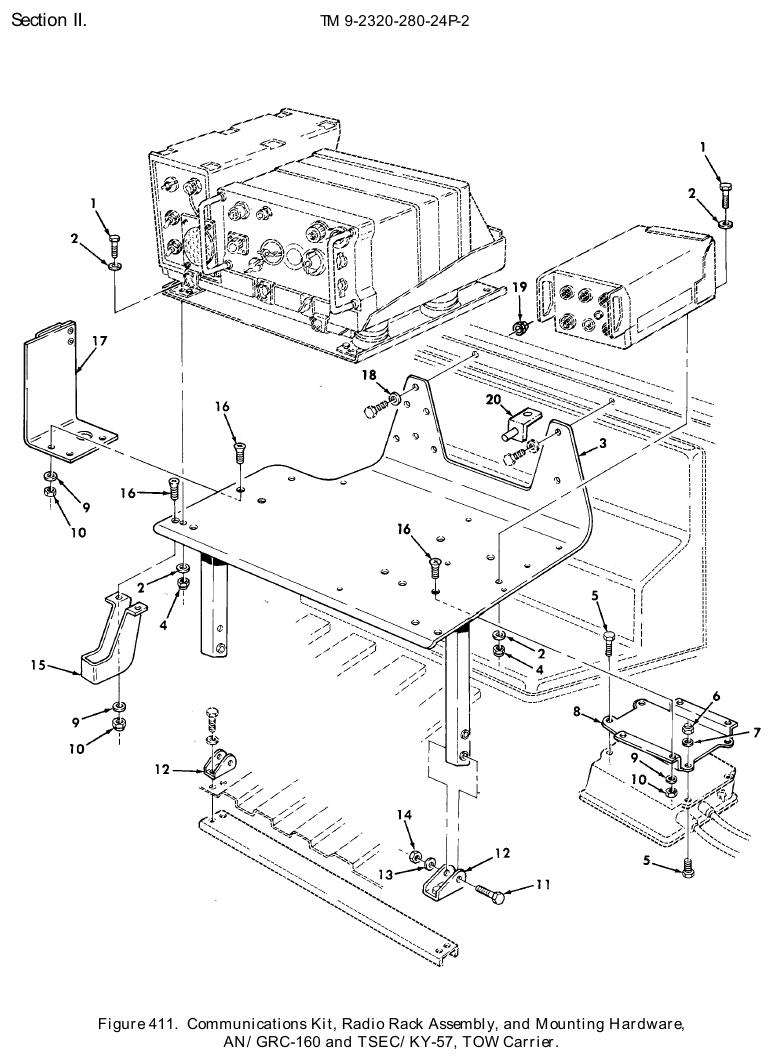

TM 9-2320-280-24P figure 411, Communications Kit, Radio Rack Assembly, and Mounting Hardware, AN/GRC-160 and TSEC/KY-57, TOW Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	276 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	16	351 in stock
3	Electrical Equipme Mounting Base NSN 5975-01-197-5505 · P/N 12340167 MOUNTING BASE,ELECT PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	33 in stock $122.35 per eachgov't list price
4	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	354 in stock
5	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	287 in stock
6	Self-Locking Hexagon Nut NSN 5310-01-269-9245 · P/N 190254 NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	88 in stock
7	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	909 in stock
8	Radio Mounting Brace NSN 2540-01-202-8548 · P/N 12340153 BRACE,RADIO MOUNTIN PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $70–$120 eachtypical
9	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	9	351 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-013-1245 · P/N 131245 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	9	225 in stock
11	Machine Bolt NSN 5306-01-068-4592 · P/N MS35764-1303 BOLT,SELF-LOCKING 3/8-16 X 2.25, PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
12	Vehicular Components Bracket NSN 2590-01-202-8546 · P/N 12340134 BRACKET,RADIO PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	2	74 in stock $32.00our price Buy online ↗
12	Double Angle Bracket NSN 5340-01-412-0866 · P/N 12446766 BRACKET,DOUBLE ANGL Fits: M1045A2	2	441 in stock $40–$75 eachtypical
13	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	6 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	219 in stock
15	Head Phone Mounting Bracket NSN 2540-01-202-8545 · P/N 12340131 BRACKET,HEAD PHONE PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	233 in stock $22.53our price Buy online ↗
16	Machine Screw NSN 5305-00-719-5021 · P/N MS51959-81 SCREW,MACHINE 1/4-20 X .75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	9	We can source it
17	Angle Bracket NSN 5340-01-209-7386 · P/N 12340151 BRACKET,ANGLE PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $40–$80 eachtypical
18	Packing Nut NSN 4730-01-170-8705 · P/N 9419265 WASHER,FLAT Fits: M1045A2	2	We can source it $35–$75 eachtypical
19	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N M45913/3-4FG8C NUT,SELF-LOCKING,HE Fits: M1045A2	2	We can source it
20	Vehicular Components Bracket NSN 2590-01-439-8268 · P/N 12446763 BRACKET,ANGLE Fits: M1045A2	1	258 in stock $18.13our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
