Catalog › Parts manuals › TM 9-2320-280-24P › Special Purpose Kits › Fig. 412

HMMWV Communications Kit, Radio Cables, AN/GRC-160, AN/VRC-46, and TSEC/KY-57, TOW Carrier TM 9-2320-280-24P · Fig. 412

Every part in figure 412 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 26 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

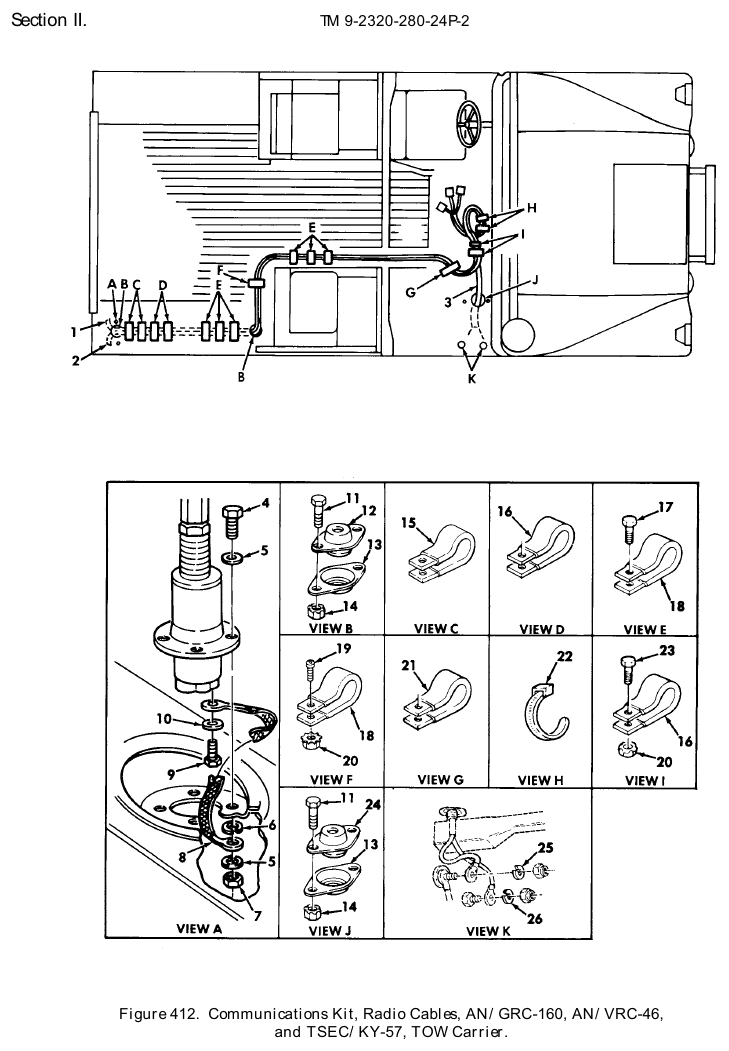

TM 9-2320-280-24P figure 412, Communications Kit, Radio Cables, AN/GRC-160, AN/VRC-46, and TSEC/KY-57, TOW Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Radio Frequency Cable Assembly NSN 5995-01-201-7495 · P/N 5589167 CABLE ASSEMBLY,RADI PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $75–$125 eachtypical
2	Special Purpose E Cable Assembly NSN 5995-01-201-4129 · P/N 12338089-3 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	9 in stock quote only $220.52 per eachgov't list price
3	Special Purpose E Cable Assembly NSN 5995-01-201-4128 · P/N 12338088 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it quote only $181.42 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00, PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	365 in stock
5	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	6 in stock
6	Lock Washer NSN 5310-00-045-3299 · P/N MS35333-42 WASHER,LOCK 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	84 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	219 in stock
8	Grounding Terminal Strip NSN 5940-01-204-8830 · P/N 5591200 TERMINAL STRIP,GROU PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $65–$110 eachtypical
9	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	169 in stock
10	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK 3/8,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	709 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4, PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	471 in stock
12	Grommet NSN 5325-01-205-3203 · P/N 12338085 GROMMET PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	75 in stock $25–$40 eachtypical
13	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER ASSEMBLY PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	168 in stock
14	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	570 in stock
15	Loop Clamp NSN 5340-00-833-8476 · P/N MS21333-122 CLAMP,LOOP PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
16	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	787 in stock
17	Machine Screw NSN 5305-01-259-6322 · P/N 5593913 SCREW,MACHINE #10-32 X 3/4,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	1,205 in stock
18	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	7	5 in stock
19	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	24 in stock
20	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	10 in stock
21	Loop Clamp NSN 5340-00-854-6729 · P/N MS21333-103 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
22	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	198 in stock
23	Machine Screw NSN 5305-00-984-7363 · P/N MS35191-272 SCREW,MACHINE #10-32 X 1/2,PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	200 in stock
24	Nonmetallic Grommet NSN 5325-01-205-5378 · P/N 12338084 GROMMET PART OF KIT P/N 5705689 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	3 in stock
25	Lock Washer NSN 5310-01-253-8440 · P/N 5596566 WASHER,LOCK 1/2 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
26	Lock Washer NSN 5310-00-003-4094 · P/N MS35338-48 WASHER,LOCK 1/2 160,AN/VRC-46,AND TSEC/KY-57,TOW CARRIER BOLT,SELF-LOCKING ( 2) 411-11 BRACE,RADIO MOUNTIN( 1) 411-8 BRACKET,HEAD PHONE ( 1) 411-15 BRACKET,ANGLE ( 1) 411-17 BRACKET,RADIO ( 2) 411-12 CABLE ASSEMBLY,RADI( 1) 412-1 CABLE ASSEMBLY,SPEC( 1) 412-3 CABLE ASSEMBLY,SPEC( 1) 412-2 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	202 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
