HMMWV Communications Kit, Radio Cables, AN/VRC-47, and (2) TSEC/KY-57 Assemblies TM 9-2320-280-24P · Fig. 414

Every part in figure 414 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 24 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

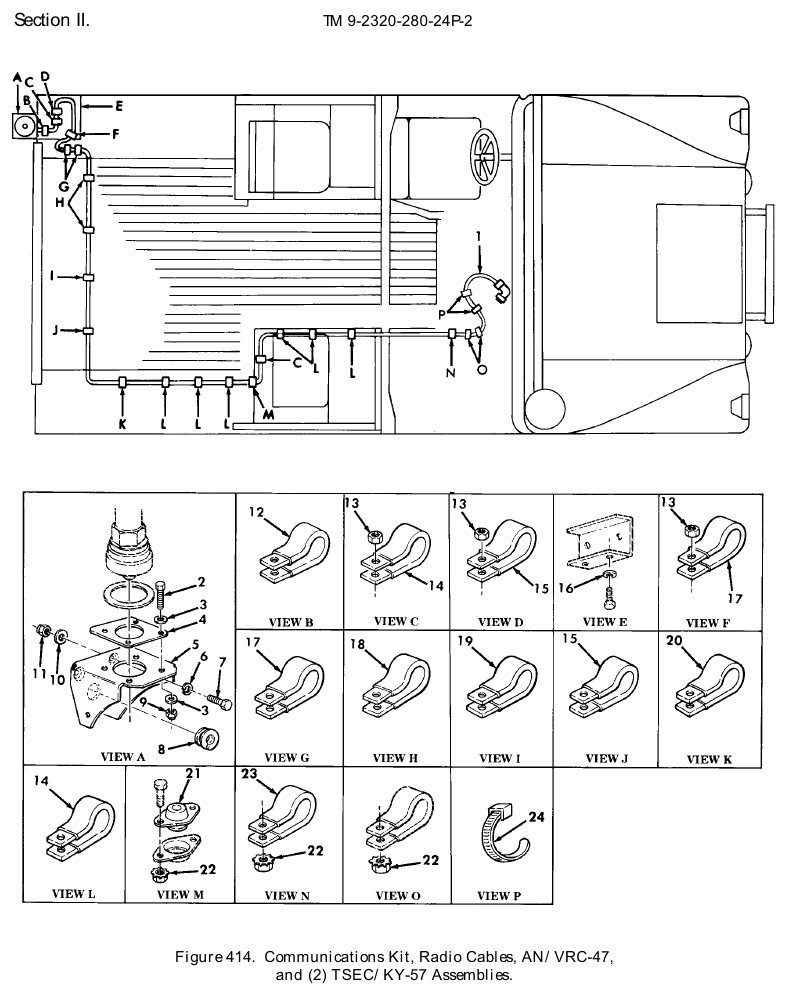

TM 9-2320-280-24P figure 414, Communications Kit, Radio Cables, AN/VRC-47, and (2) TSEC/KY-57 Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Radio Frequency Cable Assembly NSN 5995-01-251-9316 · P/N 12338086-4 CABLE ASSEMBLY,RADI PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	We can source it $101.29 per eachgov't list price
2	Cap Hexagon Head Screw NSN 5306-00-821-3869 · P/N B1821BH038C175N SCREW,CAP,HEXAGON H 3/8-16 X 1.75 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	4	201 in stock $14.70our price Buy online ↗
3	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	8	6 in stock
4	Antenna to Antenna Base Adapter NSN 5985-01-253-3514 · P/N 12340637 ADAPTER,ANTENNA TO PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	We can source it $25–$45 eachtypical
5	Antenna Support NSN 5985-01-215-9404 · P/N A3046166 SUPPORT,ANTENNA PART OF KIT P/N PPL- 10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	We can source it
6	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	3	471 in stock
7	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	3	276 in stock
8	Nonmetallic Grommet NSN 5325-01-208-5424 · P/N 12338098 GROMMET,NONMETALLIC PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	15 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	4	219 in stock
10	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT 5/16 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	3	1 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	3	354 in stock
12	Loop Clamp NSN 5340-00-050-9077 · P/N MS21333-119 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	We can source it
13	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	6	474 in stock
14	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	8	5 in stock
15	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	We can source it
16	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 PART OF KIT P/N PPL -10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	4,285 in stock
17	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	35 in stock
18	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	We can source it
19	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	12 in stock
20	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	787 in stock
21	Nonmetallic Grommet NSN 5325-01-255-5062 · P/N 5590029 GROMMET,NONMETALLIC PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	97 in stock $25–$55 eachtypical
22	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	4	570 in stock
23	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	426 in stock
24	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N PPL-10323 ASSEMBLY,AN/VRC-47 AND TSEC/KY-57 ADAPTER,ANTENNA TO ( 1) 414-4 BOLT,MACHINE ( 8) 413-1 BOLT,MACHINE ( 8) 413-11 BOLT,MACHINE ( 3) 414-7 BRACKET,ANGLE ( 1) 413-9 CABLE ASSEMBLY,RADI( 1) 414-1 CLAMP,LOOP ( 1) 414-12 CLAMP,LOOP ( 8) 414-14 Fits: M998, M998A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	198 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
