Catalog › Parts manuals › TM 9-2320-280-24P › Special Purpose Kits › Fig. 415

HMMWV Communications Kit, Radio Rack Assembly, AN/VRC-49, and (2) TSEC/KY-57 Assemblies TM 9-2320-280-24P · Fig. 415

Every part in figure 415 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 17 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

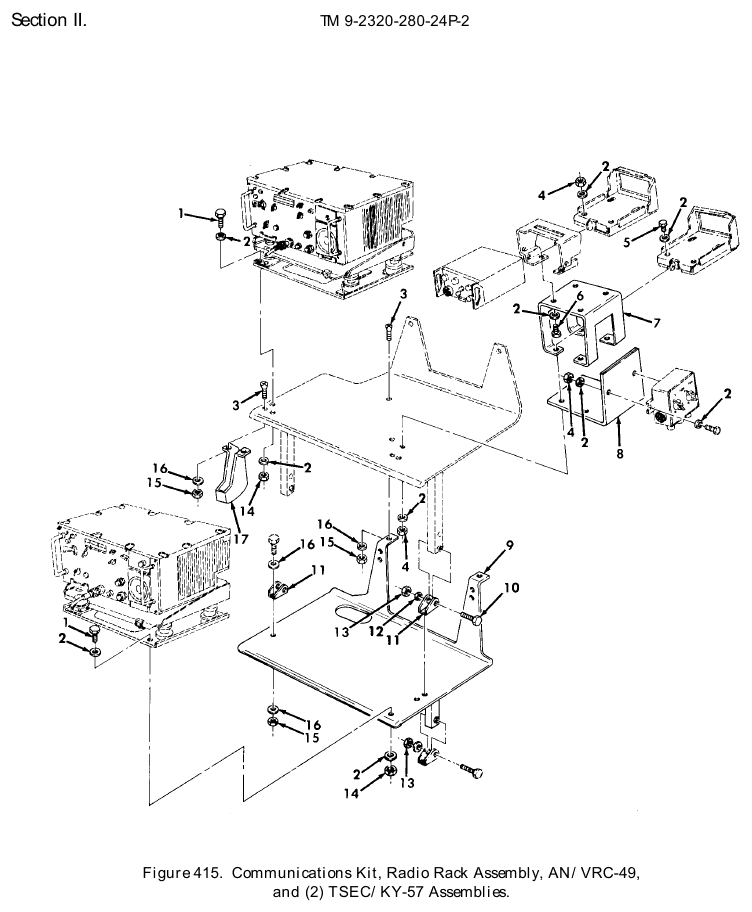

TM 9-2320-280-24P figure 415, Communications Kit, Radio Rack Assembly, AN/VRC-49, and (2) TSEC/KY-57 Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 8475-00-255-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	We can source it quote only
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	40	471 in stock
3	Machine Screw NSN 5305-00-719-5021 · P/N MS51959-81 SCREW,MACHINE 1/4-20 X .75 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	We can source it
4	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	904 in stock
5	Machine Bolt NSN 5305-00-051-4077 · P/N B1821BH031F113N BOLT,MACHINE 5/16-24 X 1.125 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	239 in stock
6	Machine Bolt NSN 5306-01-255-2662 · P/N 5593359 BOLT,MACHINE 5/16-24 X .88 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it
7	Mounting Bracket NSN 5340-01-249-1590 · P/N 12340639 BRACKET,MOUNTING PART OF KIT P/N PPL -10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	2 in stock $40–$80 eachtypical
8	Angle Bracket NSN 5340-01-255-9514 · P/N 12340636 BRACKET,ANGLE PART OF KIT P/N PPL- 10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $35–$65 eachtypical
9	Radio Rack Assembly NSN 2540-01-250-7590 · P/N 12340581 RACK ASSEMBLY,RADIO PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	67 in stock $154.99our price Buy online ↗
10	Machine Bolt NSN 5306-01-068-4592 · P/N MS35764-1303 BOLT,SELF-LOCKING 3/8-16 X 2.25 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
11	Vehicular Components Bracket NSN 2590-01-202-8546 · P/N 12340134 BRACKET,VEHICULAR C PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	74 in stock $32.00our price Buy online ↗
12	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N PPL -10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	6 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	219 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	354 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	626 in stock
16	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 PART OF KIT P/N PPL -10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	14	351 in stock
17	Head Phone Mounting Bracket NSN 2540-01-202-8545 · P/N 12340131 BRACKET,HEAD PHONE PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 1 more	1	233 in stock $22.53our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
