HMMWV Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-46 TM 9-2320-280-24P · Fig. 418

Every part in figure 418 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 9 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

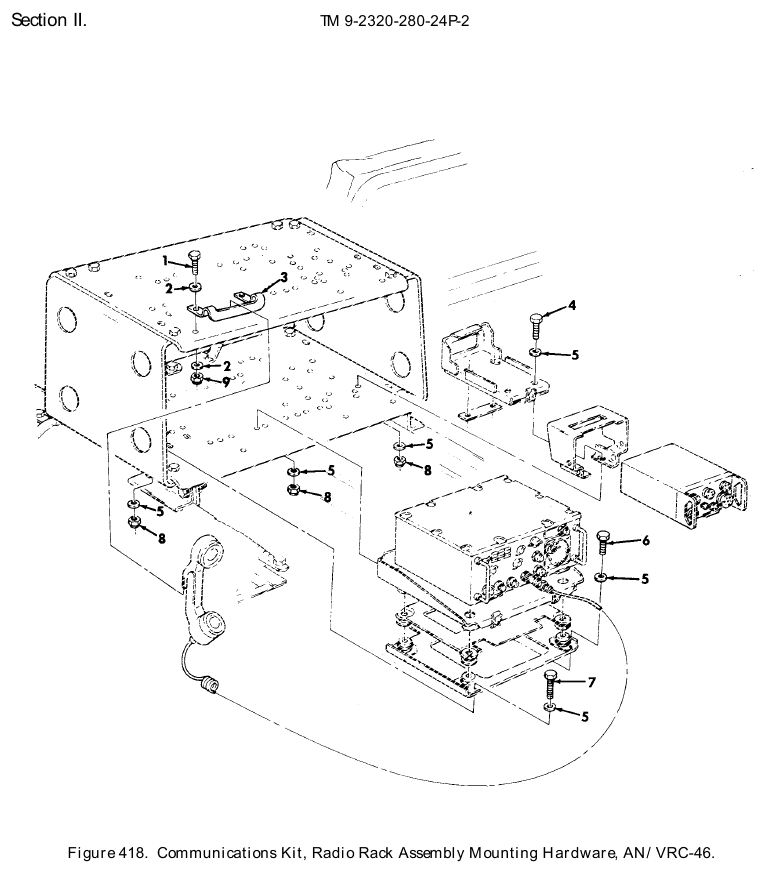

TM 9-2320-280-24P figure 418, Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-46: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N MS90728-7 SCREW,CAP,HEXAGON H 1/4-20 X 7/8 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
2	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
3	Mounting Bracket NSN 5340-01-291-8915 · P/N 5597357 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $55–$90 eachtypical
4	Machine Bolt NSN 5306-00-225-8498 · P/N MS90725-33 BOLT,MACHINE 5/16-18 X 7/8 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	351 in stock
5	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	18	471 in stock
6	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	276 in stock
7	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	84,127 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	9	354 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	626 in stock
