HMMWV Communications Kit, Radio Rack Assembly TM 9-2320-280-24P · Fig. 417

Every part in figure 417 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 19 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

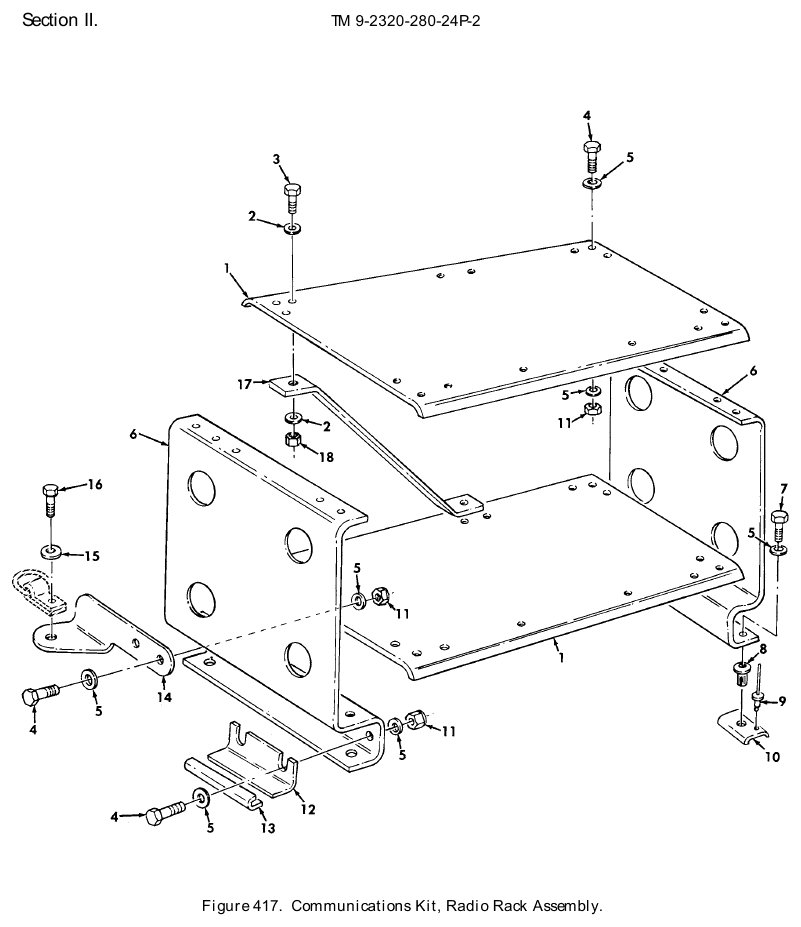

TM 9-2320-280-24P figure 417, Communications Kit, Radio Rack Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Equipment Shelf NSN 5975-01-312-5469 · P/N 5596795 SHELF,ELECTRICAL EQ PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $790.63 per eachgov't list price
2	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	We can source it
3	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	559 in stock
4	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	14	84,127 in stock
5	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	32	471 in stock
6	Mounting Bracket NSN 5340-01-290-2279 · P/N 5596794 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $171.46 per eachgov't list price
7	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	74 in stock
8	Plain Blind Rivet Nut NSN 5310-01-198-1724 · P/N S31P280 NUT,PLAIN,BLIND RIV 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it $35–$75 eachtypical
9	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	62 in stock
10	Double Angle Bracket NSN 5340-01-291-5711 · P/N 5588193 BRACKET,DOUBLE ANGL PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it $25–$55 eachtypical
11	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	14	354 in stock
12	Angle Bracket NSN 5340-01-291-4537 · P/N 5597356 BRACKET,ANGLE PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock $50–$90 eachtypical
13	Cushioning Pad NSN 2590-01-291-1033 · P/N 5595551 PROTECTOR,EDGE PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	10 in stock
14	Angle Bracket NSN 5340-01-298-9691 · P/N 5597372 BRACKET,ANGLE R.H. PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $127.40 per eachgov't list price
14	Angle Bracket NSN 5340-01-290-6342 · P/N 5597350 BRACKET,ANGLE L.H. PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$55 eachtypical
15	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT .50 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	7 in stock
16	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N 113324 SCREW,CAP,HEXAGON H 1/2-13 X 1.50 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	2,205 in stock
17	Mounting Bracket NSN 5340-01-290-8390 · P/N 5597086 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $85–$145 eachtypical
18	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	626 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
