HMMWV Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-48 TM 9-2320-280-24P · Fig. 422

Every part in figure 422 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 11 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

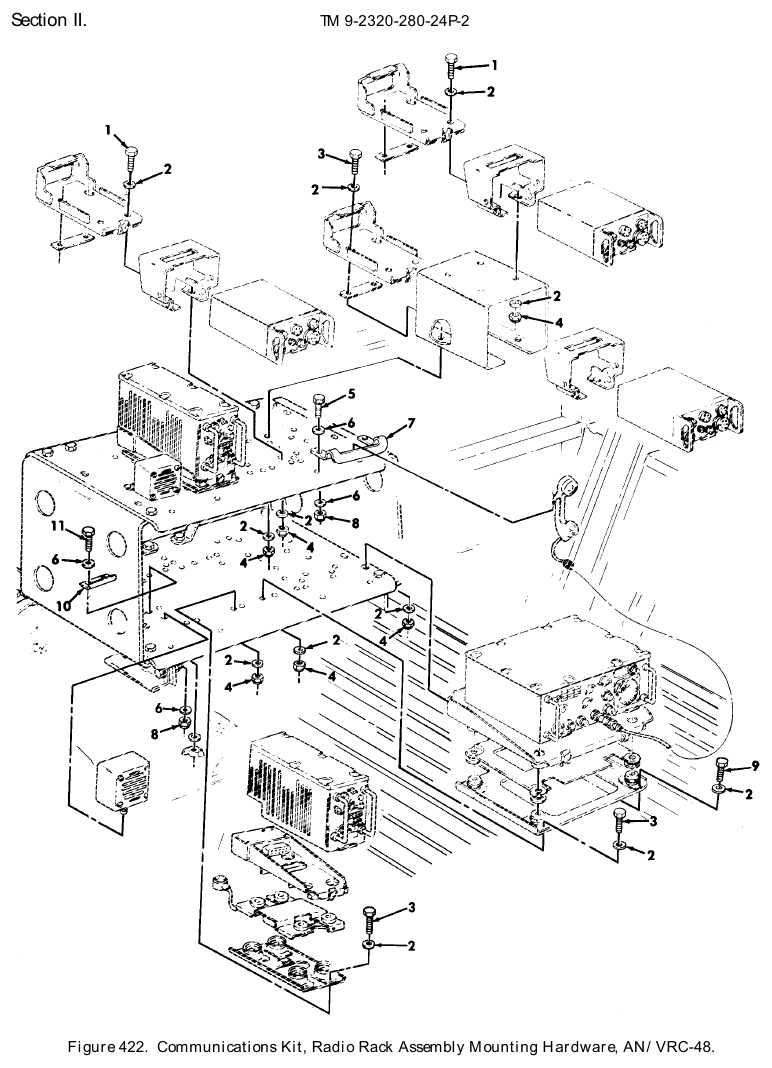

TM 9-2320-280-24P figure 422, Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-48: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-225-8498 · P/N MS90725-33 BOLT,MACHINE 5/16-18 X .88 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	351 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	50	471 in stock
3	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	15	276 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-472-2963 · P/N MS51943-3 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	25	We can source it
5	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N MS90728-7 SCREW,CAP,HEXAGON H 1/4-20 X .88 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
6	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	12	We can source it
7	Mounting Bracket NSN 5340-01-291-8915 · P/N 5597357 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $55–$90 eachtypical
8	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	6	626 in stock
9	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	84,127 in stock
10	Angle Bracket NSN 5340-01-255-1109 · P/N 12340635 BRACKET,ANGLE PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $25–$55 eachtypical
11	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	471 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
