HMMWV Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-49 TM 9-2320-280-24P · Fig. 423

Every part in figure 423 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 12 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

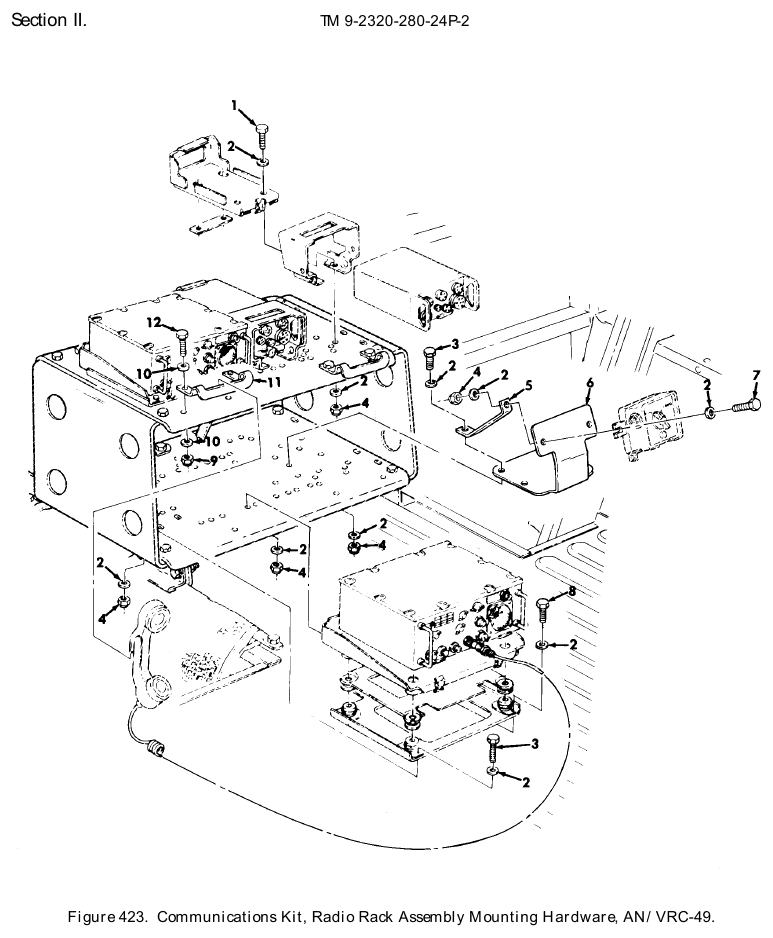

TM 9-2320-280-24P figure 423, Communications Kit, Radio Rack Assembly Mounting Hardware, AN/VRC-49: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-225-8498 · P/N MS90725-33 BOLT,MACHINE 5/16-18 X .88 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	351 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	48	471 in stock
3	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	84,127 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	24	354 in stock
5	Rack Brace NSN 2510-01-290-5675 · P/N 5597595 BRACE,RACK PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $85–$140 eachtypical
6	Double Angle Bracket NSN 5340-01-290-8473 · P/N 5596797 BRACKET,DOUBLE ANGL PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $65–$115 eachtypical
7	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	74 in stock
8	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	6	276 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	626 in stock
10	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	We can source it
11	Mounting Bracket NSN 5340-01-291-8915 · P/N 5597357 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $55–$90 eachtypical
12	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N MS90728-7 SCREW,CAP,HEXAGON H 1/4-20 X .88 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
