HMMWV Communications Kit, Radio Cables, AN/VRC-46, (2) AN/VRC-46, (3) AN/VRC-46, AN/VRC-47, AN/VRC-48, AND AN/VRC-49 TM 9-2320-280-24P · Fig. 426

Every part in figure 426 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 26 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

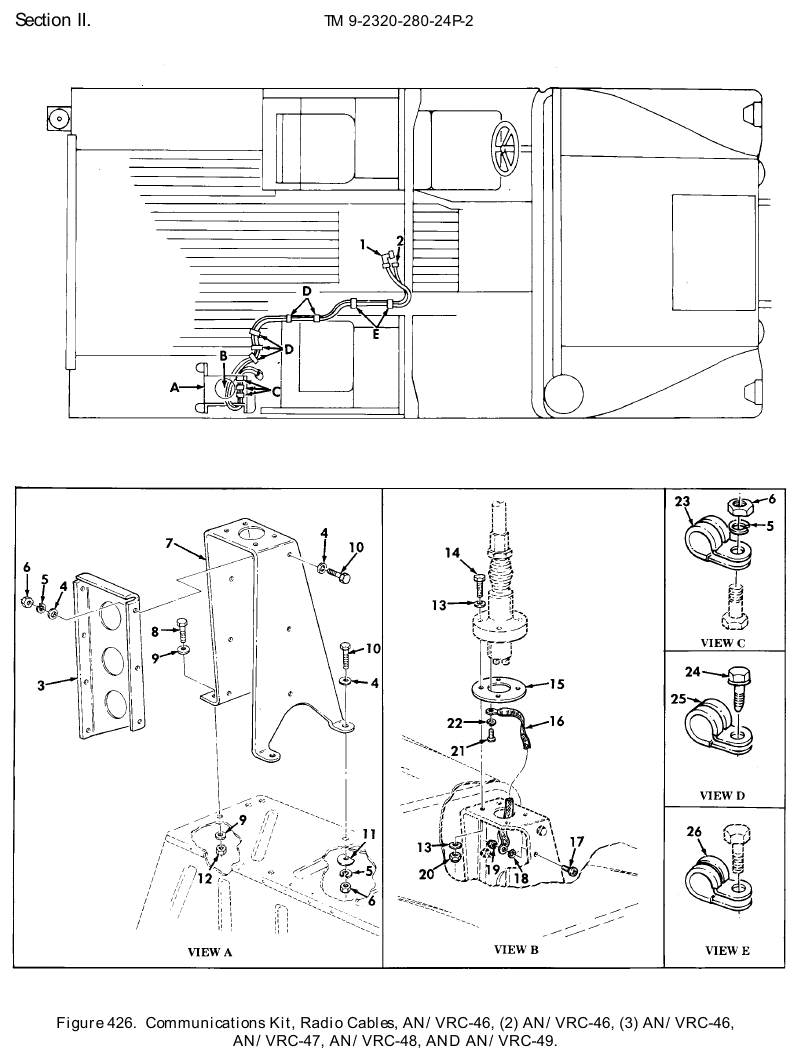

TM 9-2320-280-24P figure 426, Communications Kit, Radio Cables, AN/VRC-46, (2) AN/VRC-46, (3) AN/VRC-46, AN/VRC-47, AN/VRC-48, AND AN/VRC-49: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Radio Frequency Cable Assembly NSN 5995-01-290-1719 · P/N 5597137 CABLE ASSEMBLY,RADI PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock $189.22 per eachgov't list price
2	Special Purpose E Cable Assembly NSN 5995-01-291-6377 · P/N 5597138 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $371.28 per eachgov't list price
3	Mounting Bracket NSN 5340-01-290-6343 · P/N 5597151 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	2 in stock $114.00 per eachgov't list price
4	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	16	We can source it
5	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	12	4,285 in stock
6	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	12	We can source it
7	Mounting Bracket NSN 5340-01-290-4888 · P/N 5597155 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $172.62 per eachgov't list price
8	Cap Hexagon Head Screw NSN 5305-00-071-1788 · P/N B1821BH044C125N SCREW,CAP,HEXAGON H 7/16-14 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
9	Flat Washer NSN 5310-01-303-4701 · P/N MS51412-1 WASHER,FLAT 15/32 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
10	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	9	298 in stock
11	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	1 in stock
12	Plain Hexagon Nut NSN 5310-00-896-0903 · P/N MS51967-12 NUT,PLAIN,HEXAGON 7/16-14 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	253 in stock
13	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	6 in stock
14	Cap Screw NSN 5305-01-260-8881 · P/N 5593315 SCREW,CAP,HEXAGON H 3/8-16 X 2.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
15	Gasket NSN 5330-01-270-8315 · P/N 12341876 GASKET PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
16	Electrical Lead NSN 6150-01-207-8120 · P/N 12338099-1 LEAD,ELECTRICAL PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock
17	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .625 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	4 in stock
18	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK #10 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	8 in stock
19	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	10 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	219 in stock
21	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X .50 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	169 in stock
22	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	709 in stock
23	Loop Clamp NSN 5340-00-854-6729 · P/N MS21333-103 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
24	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 3/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	5	1,205 in stock
25	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	5	19 in stock
26	Loop Clamp NSN 5340-00-057-3043 · P/N MS21333-112 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	6,753 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
