HMMWV Communications Kit, Radio Cables, AN/VRC-47 and AN/VRC-48 TM 9-2320-280-24P · Fig. 425

Every part in figure 425 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 19 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

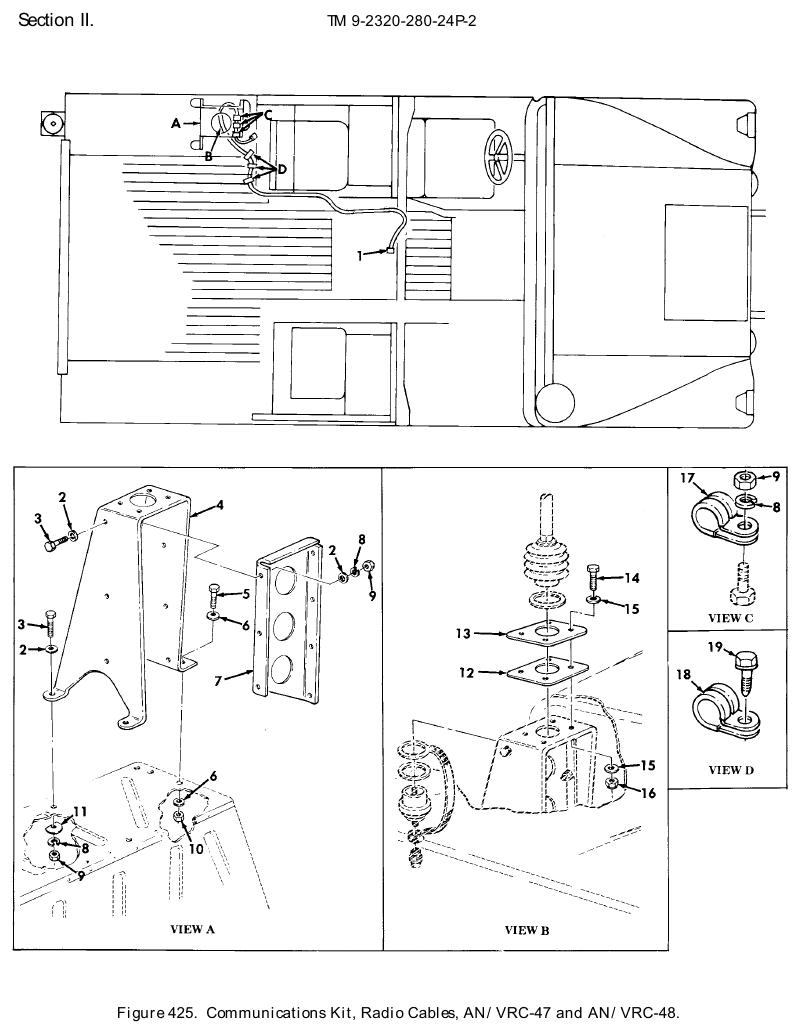

TM 9-2320-280-24P figure 425, Communications Kit, Radio Cables, AN/VRC-47 and AN/VRC-48: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Special Purpose E Cable Assembly NSN 5995-01-291-6377 · P/N 5597138 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $371.28 per eachgov't list price
2	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	16	We can source it
3	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	9	298 in stock
4	Mounting Bracket NSN 5340-01-290-4887 · P/N 5596843 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-1788 · P/N B1821BH044C125N SCREW,CAP,HEXAGON H 7/16-14 X 1.25 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	We can source it
6	Flat Washer NSN 5310-01-303-4701 · P/N MS51412-1 WASHER,FLAT 15/32 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
7	Mounting Bracket NSN 5340-01-291-5186 · P/N 5597150 BRACKET,MOUNTING PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock
8	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	12	4,285 in stock
9	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	12	We can source it
10	Plain Hexagon Nut NSN 5310-00-896-0903 · P/N MS51967-12 NUT,PLAIN,HEXAGON 7/16-14 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	253 in stock
11	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	1 in stock
12	Gasket NSN 5330-01-289-9231 · P/N 5597371 GASKET PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
13	Antenna to Antenna Base Adapter NSN 5985-01-253-3514 · P/N 12340637 ADAPTER,ANTENNA TO PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $25–$45 eachtypical
14	Cap Hexagon Head Screw NSN 5305-00-543-2419 · P/N B1821BH038C113N SCREW,CAP,HEXAGON H 3/8-16 X 1.125 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	1,168 in stock
15	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	6 in stock
16	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	219 in stock
17	Loop Clamp NSN 5340-00-854-6729 · P/N MS21333-103 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
18	Loop Clamp NSN 5340-00-079-7837 · P/N MS21333-67 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
19	Machine Screw NSN 5305-01-259-6322 · P/N 5593913 SCREW,MACHINE #10-32 X 3/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	1,205 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
