HMMWV Traversing Bar Kit TM 9-2320-280-24P · Fig. 431

Every part in figure 431 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 8 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

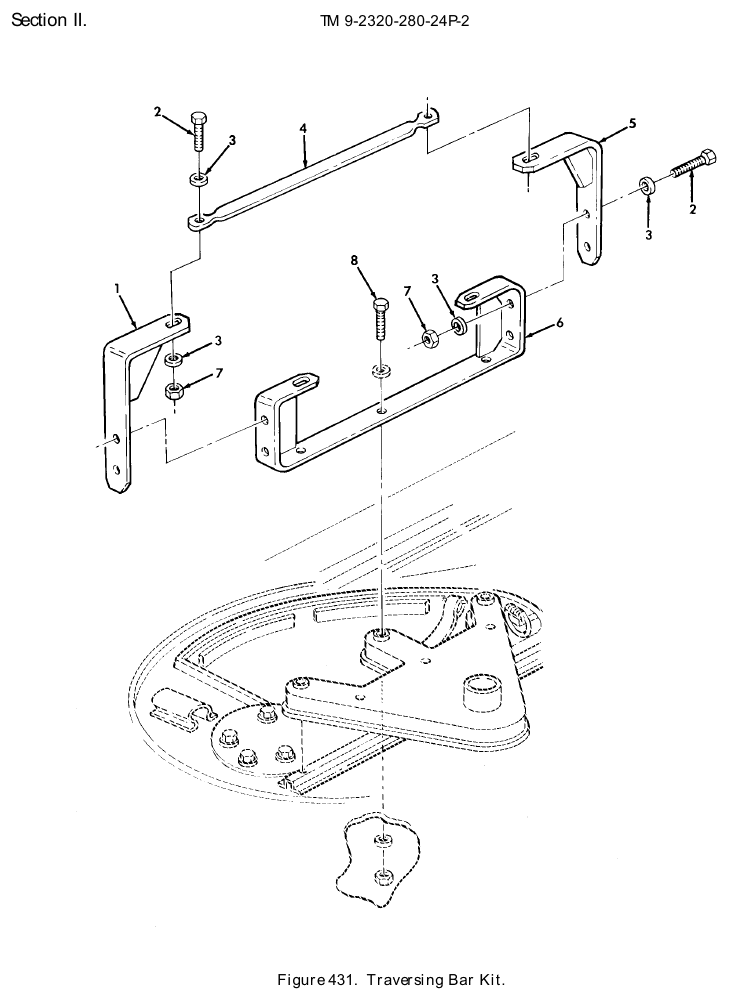

TM 9-2320-280-24P figure 431, Traversing Bar Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Angle Bracket NSN 5340-01-295-8169 · P/N 12342044-1 BRACKET,ANGLE UPPER,L.H. PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it $227.27 per eachgov't list price
2	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	6	1,907 in stock
3	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	12	1,146 in stock $7.83our price Buy online ↗
4	Rigid Connecting Link NSN 3040-01-327-1426 · P/N 12342045 CONNECTING LINK,RIG PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	12 in stock $285.00our price Buy online ↗
5	Angle Bracket NSN 5340-01-295-1088 · P/N 12342044-2 BRACKET,ANGLE UPPER R.H. PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it $75–$125 eachtypical
6	Double Angle Bracket NSN 5340-01-324-1076 · P/N 12342043 BRACKET,DOUBLE ANGL LOWER PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it $477.39 per eachgov't list price
7	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 12342040 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	6	219 in stock
8	Cap Hexagon Head Screw NSN 5305-01-386-9052 · P/N B1821BH038C600N SCREW,CAP,HEXAGON H LOWER PART OF KIT P/N 12342040 BRACKET,ANGLE ( 1) 431-1 BRACKET,ANGLE ( 1) 431-5 BRACKET,DOUBLE ANGL( 1) 431-6 CONNECTING LINK,RIG( 1) 431-4 NUT,SELF-LOCKING,HE( 6) 431-7 SCREW,CAP,HEXAGON H( 3) 431-8 SCREW,CAP,HEXAGON H( 6) 431-2 WASHER,FLAT ( 12) 431-3 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	3	We can source it
