HMMWV Rearview Mirror Mounting Kit TM 9-2320-280-24P · Fig. 432

Every part in figure 432 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 8 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

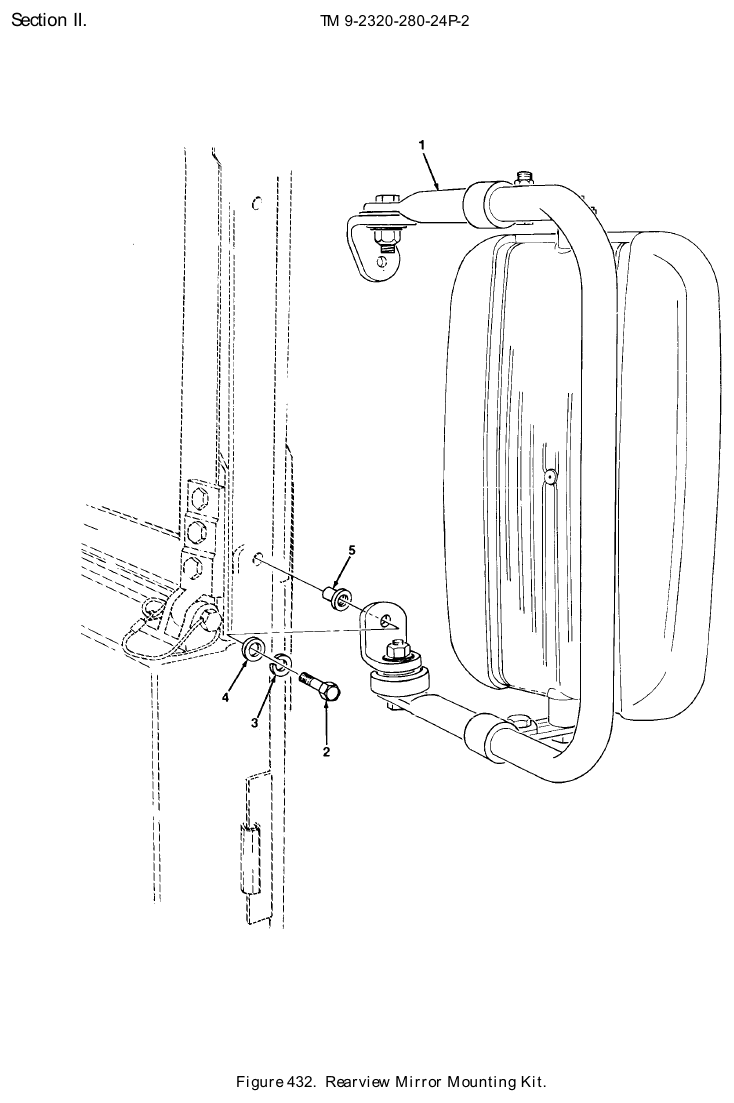

TM 9-2320-280-24P figure 432, Rearview Mirror Mounting Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Rearview Mirror Assembly NSN 2540-01-314-9379 · P/N 12342130 MIRROR ASSEMBLY,REA REARVIEW,R.H PART OF KIT P/N 57K3214 Fits: All A0 models except M1097, plus M1121	1	138 in stock $115.00our price Buy online ↗
1	Rearview Mirror Assembly NSN 2540-01-411-2130 · P/N 12343061 MIRROR ASSEMBLY,REA REARVIEW,L.H., GREEN PART OF KIT P/N 57K3214 Fits: All A0 models except M1097, plus M1121	1	5 in stock
1	Rea Rearview L.h. Mirror Assembly NSN 2540-01-487-3673 · P/N 1411 MIRROR ASSEMBLY,REA REARVIEW,L.H., TAN Fits: All models	1	We can source it
1	Rea Rearview R.h. Mirror Assembly NSN 2540-01-437-9932 · P/N 1302 MIRROR ASSEMBLY,REA REARVIEW,R.H., TAN Fits: All models	1	16 in stock
2	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25 PART OF KIT P/N 57K3214 Fits: All A0 models except M1097, plus M1121	4	74 in stock
3	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 PART OF KIT P/N 57K3214 Fits: All A0 models except M1097, plus M1121	4	2,036 in stock
4	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 PART OF KIT P/N 57K3214 Fits: All A0 models except M1097, plus M1121	4	1,368 in stock
5	Plain Blind Rivet Nut NSN 5310-01-413-3276 · P/N ALS4-518-150 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3214 THRU 99,999 BOLT,MACHINE ( 4) 432-2 MIRROR ASSEMBLY,REA( 1) 432-1 MIRROR ASSEMBLY,REA( 1) 432-1 NUT,PLAIN,BLIND RIV( 4) 432-5 WASHER,FLAT ( 4) 432-4 WASHER,LOCK ( 4) 432-3 Fits: All A0 models except M1097, plus M1121	4	269 in stock
