HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, G.D.U. and G.D.U. Battery Stowage TM 9-2320-280-24P · Fig. 449

Every part in figure 449 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 10 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

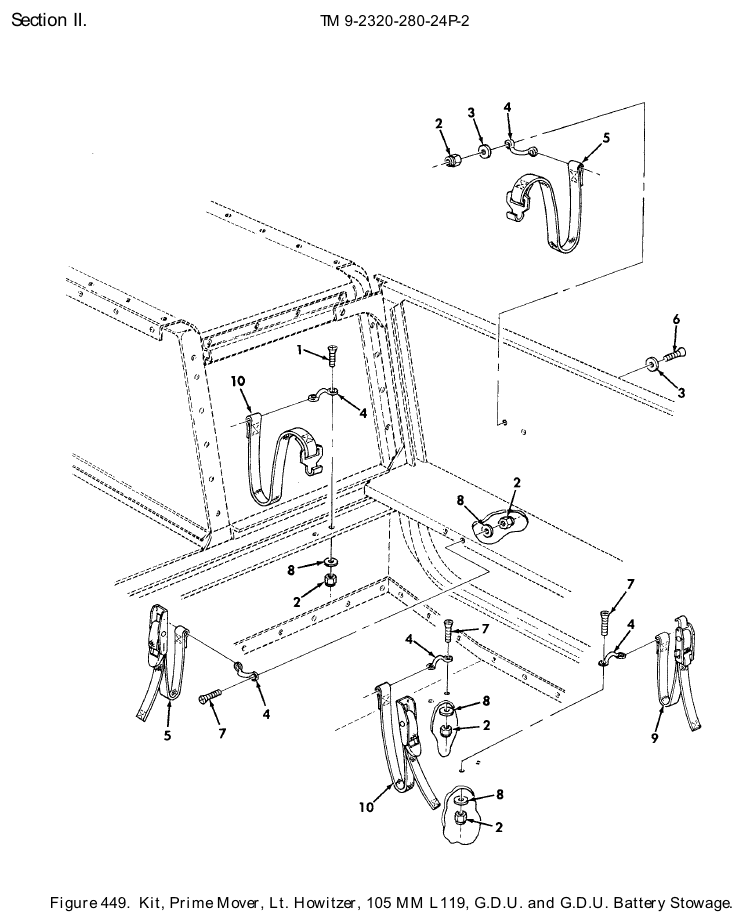

TM 9-2320-280-24P figure 449, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, G.D.U. and G.D.U. Battery Stowage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Machine Screw
NSN 5305-00-984-7343 · P/N MS35191-276
SCREW,MACHINE #10-32 X 1.00,PART OF KIT P/N 57K1628
Fits: M1097
 2 We can source it
2
Lock Nut
NSN 5310-00-251-4503 · P/N 9411893
NUT,LOCK #10-32,PART OF KIT P/N 57K1628
Fits: M1097
 10 40 in stock
3
Flat Washer
NSN 5310-00-809-8546 · P/N MS27183-8
WASHER,FLAT #10,PART OF KIT P/N 57K1628
Fits: M1097
 4 4,495 in stock
4
Strap Fastener Loop
NSN 5340-01-314-5957 · P/N 12338839-1
LOOP,STRAP,FASTENER PART OF KIT P/N 57K1628
Fits: M1097
 5 1 in stock
5
Webbing Strap
NSN 5340-01-203-2708 · P/N 12340529-7
STRAP,WEBBING PART OF KIT P/N 57K1628
Fits: M1097
 2 We can source it
$25–$55 eachtypical
6
Machine Screw
NSN 5305-00-989-7435 · P/N MS35207-264
SCREW,MACHINE #10-32 X 5/8,PART OF KIT P/N 57K1628
Fits: M1097
 2 We can source it
7
Machine Screw
NSN 5305-00-984-7341 · P/N MS35191-273
SCREW,MACHINE #10-32 X 5/8,PART OF KIT P/N 57K1628
Fits: M1097
 6 4,000 in stock
8
Flat Washer
NSN 5310-00-014-5850 · P/N MS27183-42
WASHER,FLAT #10,PART OF KIT P/N 57K1628
Fits: M1097
 8 909 in stock
9
Cargo Vehicle Tie Down
NSN 5340-01-361-7879 · P/N 12340507-6
STRAP,WEBBING PART OF KIT P/N 57K1628
Fits: M1097
 1 150 in stock
10
Webbing Strap
NSN 5340-01-255-2812 · P/N 12340529-16
STRAP,WEBBING PART OF KIT P/N 57K1628
Fits: M1097
 2 We can source it
$25–$55 eachtypical
