HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Fuel Can, Water Can, Section Chest, and Spade Stowage TM 9-2320-280-24P · Fig. 448

Every part in figure 448 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 12 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

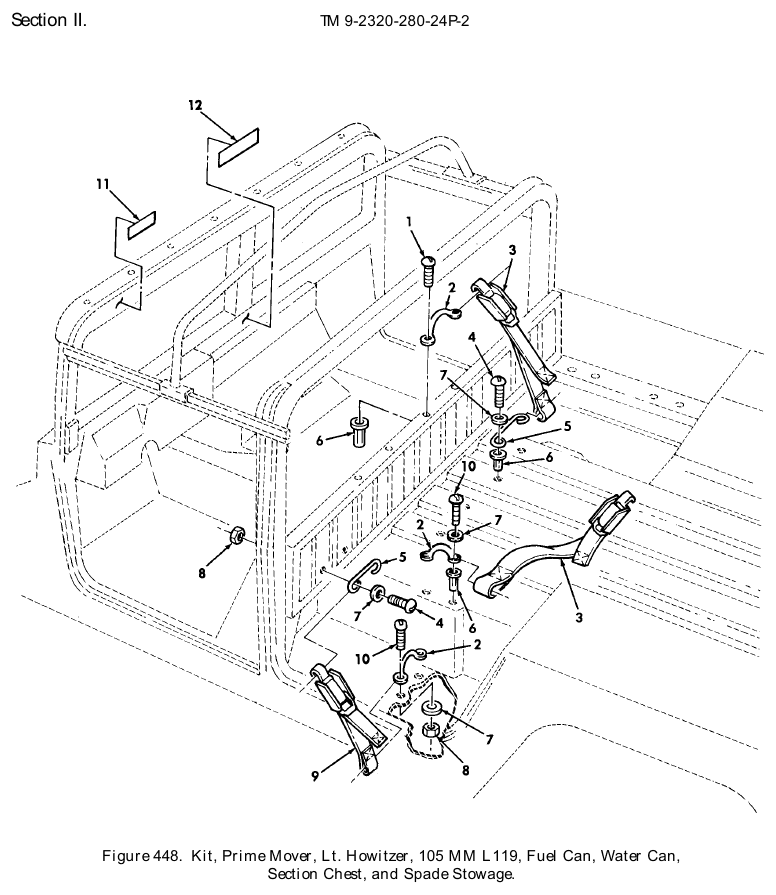

TM 9-2320-280-24P figure 448, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Fuel Can, Water Can, Section Chest, and Spade Stowage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-984-7342 · P/N MS35191-274 SCREW,MACHINE #10-32 X 0.75,PART OF KIT P/N 57K1628 Fits: M1097	4	196 in stock
2	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP,FASTENER PART OF KIT P/N 57K1628 Fits: M1097	5	1 in stock
3	Webbing Strap NSN 5340-01-258-4529 · P/N 12340507-4 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	4	1,464 in stock
4	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE PART OF KIT P/N 57K1628 Fits: M1097	8	55 in stock
5	Footman Flat Loop NSN 2510-01-199-5748 · P/N 12338839-8 LOOP,FOOTMAN,FLAT PART OF KIT P/N 57K1628 Fits: M1097	4	6 in stock
6	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N S10P175 NUT,PLAIN,BLIND RIV #10-32,PART OF KIT P/N 57K1628 Fits: M1097	12	We can source it
7	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10,PART OF KIT P/N 57K1628 Fits: M1097	14	909 in stock
8	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32,PART OF KIT P/N 57K1628 Fits: M1097	6	40 in stock
9	Cargo Vehicle Tie Down NSN 5340-01-361-7879 · P/N 12340507-6 STRAP,RETAINING PART OF KIT P/N 57K1628 Fits: M1097	1	150 in stock
10	Machine Screw NSN 5305-00-984-7341 · P/N MS35191-273 SCREW,MACHINE #10-32 X 5/8,PART OF KIT P/N 57K1628 Fits: M1097	6	4,000 in stock
11	Instruction Plate NSN 9905-01-365-8849 · P/N 12342670 PLATE,INSTRUCTION PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
12	Decal Caution P/N 12342669 DECAL CAUTION PART OF KIT P/N 57K1628 Fits: M1097	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
