HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Pioneer Tool Stowage Tray Hardware and Parking Brake Hardware TM 9-2320-280-24P · Fig. 451

Every part in figure 451 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 3 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

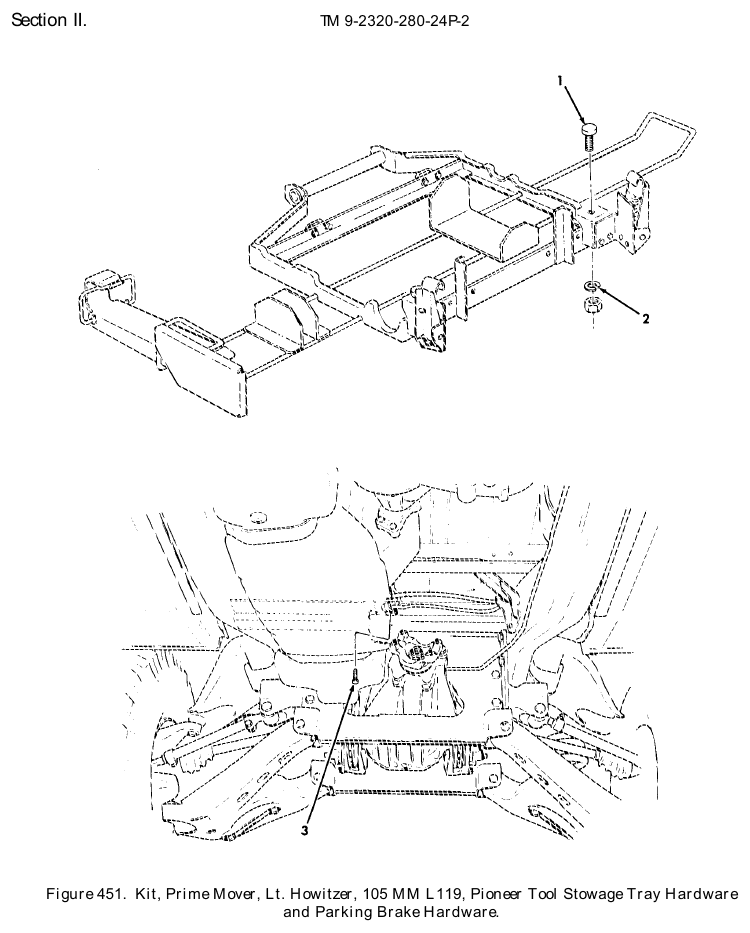

TM 9-2320-280-24P figure 451, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Pioneer Tool Stowage Tray Hardware and Parking Brake Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Bumper NSN 5340-01-185-8820 · P/N 12340846-1 BUMPER,NONMETALLIC PIONEER TOOL TRAY,STOP,PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it
2	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N 57K1628 Fits: M1097	2	4,285 in stock
3	Machine Screw NSN 5305-01-285-4234 · P/N 9414241 SCREW,MACHINE PART OF KIT P/N 57K1628 HOWITZER 105 MM L119 BOLT,ASSEMBLED ( 1) 445-4 BOLT,HEXAGON ( 1) 446-26 BOLT,MACHINE ( 2) 442-1 BOLT,MACHINE ( 12) 442-10 BOLT,MACHINE ( 4) 442-14 BOLT,MACHINE ( 4) 442-17 BOLT,MACHINE ( 8) 442-18 BOLT,MACHINE ( 2) 444-5 BOLT,MACHINE ( 10) Fits: M1097	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
