HMMWV Brushguard Kit TM 9-2320-280-24P · Fig. 462

Every part in figure 462 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 16 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

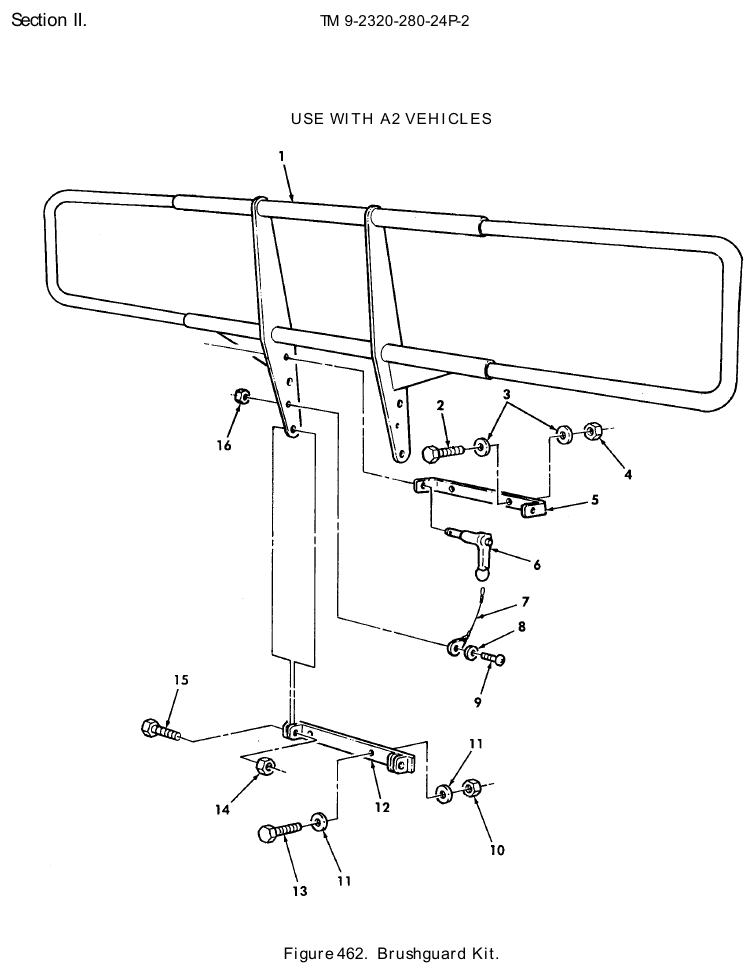

TM 9-2320-280-24P figure 462, Brushguard Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Brush Vehicular Guard NSN 2540-01-466-6114 · P/N 12460550 GUARD,BRUSH,VEHICUL PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	1	We can source it $422.37 per eachgov't list price
2	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 7/16-14 X 2.00 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	1,907 in stock
3	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	4	6 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-458-2382 · P/N 9418969 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it
5	Mounting Bracket NSN 5340-01-466-1978 · P/N 12460280 BRACKET,MOUNTING PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	1	4 in stock $25–$60 eachtypical
6	Quick Release Pin NSN 5315-01-473-1590 · P/N MS17986C1009 PIN,QUICK RELEASE PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it $25–$50 eachtypical
7	Single Leg Wire Rope Assembly NSN 4010-01-466-0849 · P/N 12342287 WIRE ROPE ASSEMBLY, PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	7 in stock $25–$40 per assemblytypical
8	Flat Washer NSN 5310-01-361-1163 · P/N 9417373 WASHER,FLAT #10 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it
9	Machine Screw NSN 5305-01-185-8647 · P/N 160057 SCREW,MACHINE #10-32 X 3/4 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	288 in stock
10	Self-Locking Hexagon Nut NSN 5310-01-466-4852 · P/N 9419477 NUT,SELF-LOCKING,HE 7/16-14 W/O WINCH PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it
11	Flat Washer NSN 5310-00-809-4085 · P/N 9420022 WASHER,FLAT 7/16 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	4	170 in stock
12	Bracket NSN 2590-01-466-5095 · P/N 12460279 BRACKET,VEHICULAR C PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	1	6 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2057 · P/N B1821BH044C200N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it
14	Self-Locking Hexagon Nut NSN 5310-01-409-0897 · P/N 9419482 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	We can source it
15	Cap Hexagon Head Screw NSN 5305-00-724-7222 · P/N B1821BH063C200N SCREW,CAP,HEXAGON H 5/8-11 X 2.00 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	28 in stock
16	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 PART OF KIT P/N 57K3490 Fits: All A2 models, plus M1123	2	474 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
