HMMWV Left Rearview Mirror Relocation Kit TM 9-2320-280-24P · Fig. 461

Every part in figure 461 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 9 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

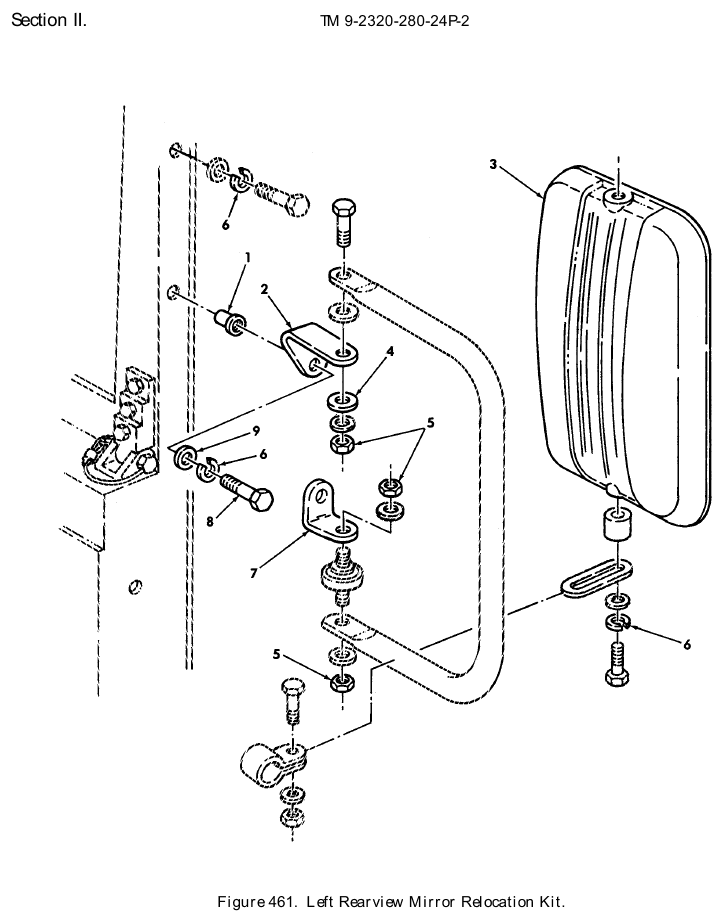

TM 9-2320-280-24P figure 461, Left Rearview Mirror Relocation Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Blind Rivet Nut NSN 5310-01-413-3276 · P/N ALS4-518-150 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	2	269 in stock
2	Angle Bracket NSN 5340-01-408-6456 · P/N 12343062 BRACKET,ANGLE PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	1	100 in stock $25–$40 eachtypical
3	Mirror Head NSN 2540-01-410-8794 · P/N 1351 MIRROR HEAD,VEHICUL GREEN PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	1	21 in stock
4	Flat Washer NSN 5310-01-313-3562 · P/N MS51859-20 WASHER,FLAT PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	2	197 in stock
5	Self-Locking Hexagon Nut NSN 5310-01-249-0904 · P/N M45913/3-6CG8P NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	3	1,700 in stock
6	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	6	2,036 in stock
7	Angle Bracket NSN 5340-01-408-6460 · P/N 12343063 BRACKET,ANGLE PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	1	100 in stock
8	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE PART OF KIT P/N 57K3213 Fits: All A0 and A1 models, plus M1121	2	74 in stock
9	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT PART OF KIT P/N 57K3213 Fits: All A1 models, plus M966, M998, M1038, M1097	2	1,146 in stock $7.83our price Buy online ↗

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
