HMMWV Underbody Protection Kit, Transfer Case, Fuel Tank Shields, and Sway Bar Link Nuts TM 9-2320-280-24P · Fig. 464

Every part in figure 464 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 8 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

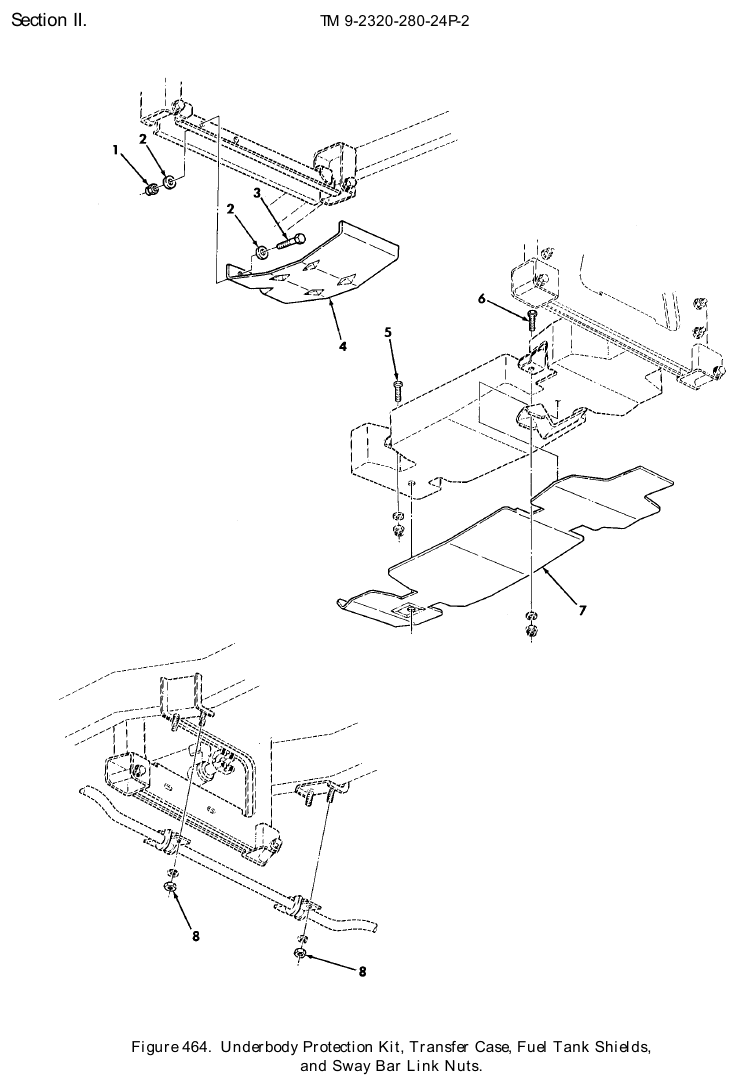

TM 9-2320-280-24P figure 464, Underbody Protection Kit, Transfer Case, Fuel Tank Shields, and Sway Bar Link Nuts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	2	219 in stock
2	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT PART OF KIT P/N 57K3492, PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	4	6 in stock
3	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	2	26 in stock
4	Transfer Cas Shield NSN 2590-01-466-3824 · P/N 12447151 SHIELD,TRANSFER CAS PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	1	8 in stock quote only $35–$65 eachtypical
5	Cap Hexagon Head Screw NSN 5305-01-412-5995 · P/N 12460145-2 SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
6	Machine Bolt NSN 5306-01-411-2338 · P/N 12460145-1 BOLT,MACHINE PART OF KIT P/N 57K3492 PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	1	We can source it
7	Fuel Tank Shield NSN 2590-01-466-3866 · P/N 12447150 SHIELD,FUEL TANK PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 Fits: All A2 models, plus M1123	1	We can source it quote only $211.13 per eachgov't list price
8	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3492,PART OF KIT P/N 57K3495 BOLT,MACHINE ( 12) 463-8 BOLT,MACHINE ( 1) 464-6 BRACKET,ANGLE ( 3) 463-18 BRACKET,MOUNTING ( 1) 463-10 BRACKET,MOUNTING ( 1) 463-22 BRACKET,MULTIPLE AN( 2) 463-20 GUARD,BRUSH,VEHICUL( 1) 463-4 GUARD,BRUSH,VEHICUL( 1) 463-16 NUT,SELF-LOCKING,HE( 1 Fits: All A2 models, plus M1123	4	251 in stock
