HMMWV Cover, Access Cargo Floor Modification Kit TM 9-2320-280-24P · Fig. 465

Every part in figure 465 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 5 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

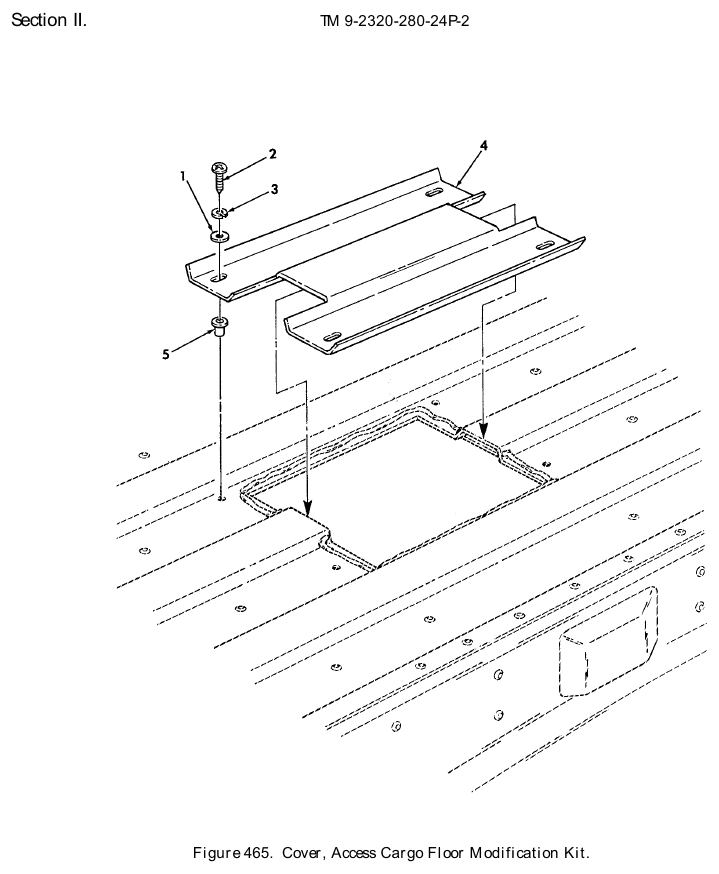

TM 9-2320-280-24P figure 465, Cover, Access Cargo Floor Modification Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-361-1163 · P/N 9417373 WASHER,FLAT PART OF KIT P/N 57K3529 Fits: All A2 models, plus M1123	4	We can source it
2	Machine Screw NSN 5305-01-083-1591 · P/N MS51957-64B SCREW,MACHINE PART OF KIT P/N 57K3529 Fits: All A2 models, plus M1123	4	We can source it
3	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK PART OF KIT P/N 57K3529 Fits: All A2 models, plus M1123	4	We can source it
4	Access Cover NSN 5340-01-457-0804 · P/N 12460506 COVER,ACCESS PART OF KIT P/N 57K3529 Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
5	Screw Thread Insert NSN 5325-01-460-8350 · P/N 12446871-10 INSERT,SCREW THREAD PART OF KIT P/N 57K3529 COVER,ACCESS ( 1) 465-4 INSERT,SCREW,THREAD( 4) 465-5 SCREW,MACHINE ( 4) 465-2 WASHER,FLAT ( 4) 465-1 WASHER,LOCK ( 4) 465-3 Fits: All A2 models, plus M1123	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
