HMMWV 10,500 Lb Hydraulic Winch Accessory Kit TM 9-2320-280-24P · Fig. 469

Every part in figure 469 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 13 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

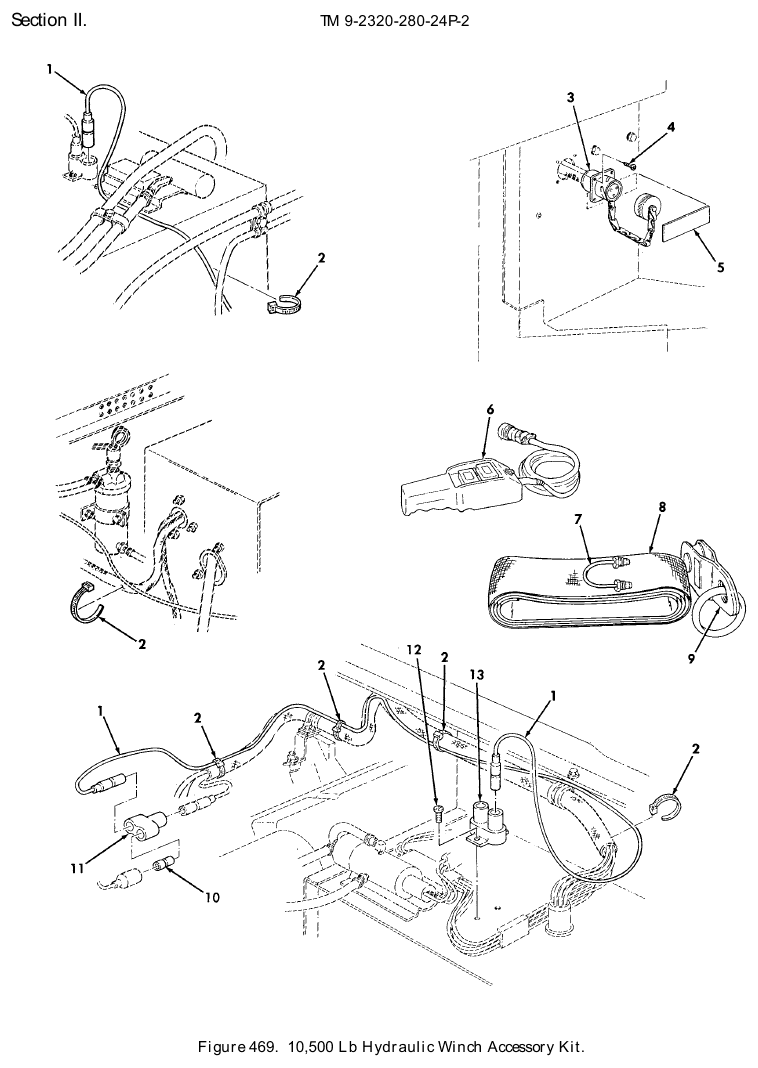

TM 9-2320-280-24P figure 469, 10,500 Lb Hydraulic Winch Accessory Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Lead NSN 6150-01-473-1169 · P/N 12469065-1 LEAD,ELECTRICAL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	91 in stock $25.99our price Buy online ↗
2	Tie Down Electrical Compon Strap NSN 5975-00-984-6582 · P/N MS3367-1-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	6	253 in stock
3	Special Purpose E Cable Assembly NSN 6150-01-473-1178 · P/N 12469064 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	We can source it $472.60 per eachgov't list price
4	Tapping Screw NSN 5305-01-474-0988 · P/N 9417323 SCREW,TAPPING PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	4	We can source it
5	Decal P/N 12469066 DECAL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	Ask us
6	Electrical Cable Assembly-Switch NSN 6150-01-475-8835 · P/N 983-74-1001 CONTROL,REEL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	20 in stock $290.99our price Buy online ↗
7	Metal Tube Assembly NSN 4710-01-475-3753 · P/N 983-90-50201 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2	1	15 in stock $55–$105 eachtypical
8	Webbing Strap NSN 5340-01-475-3650 · P/N 983-60-50089 STRAP,RETAINING PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	12 in stock $90–$155 eachtypical
9	Tackle Block NSN 3940-01-475-4983 · P/N 983-60-50085-A BLOCK,TACKLE PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	7 in stock $277.90 per eachgov't list price
10	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	20 in stock
11	Connector Adapter NSN 5935-00-900-6281 · P/N MS27147-1 ADAPTER,CONNECTOR PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	65 in stock
12	Tapping Screw NSN 5305-01-478-3387 · P/N 449617 SCREW,TAPPING PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	2	We can source it
13	Circuit Breaker NSN 5925-01-430-2318 · P/N AA55571/01-001 CIRCUIT BREAKER PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	117 in stock $131.43 per eachgov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
